红米AX5400/RA74路由器刷机教程openwrt+恢复原厂

326912
红米AX5400/RA74路由器刷机教程openwrt+恢复原厂-勇爱设计Netwrok
红米AX5400/RA74路由器刷机教程openwrt+恢复原厂
此内容为付费资源，请付费后查看
￥3.99
限时特惠
￥10
付费资源

最后一步需要联网安装。AX5400的WAN口插上级可联网的路由器。就可以自动联网了。如果无法联网，是因为你的上级路由器（光猫）后台地址也是192.168.1.1地址冲突了。更换下上级路由器（光猫）的后台地址就行了。

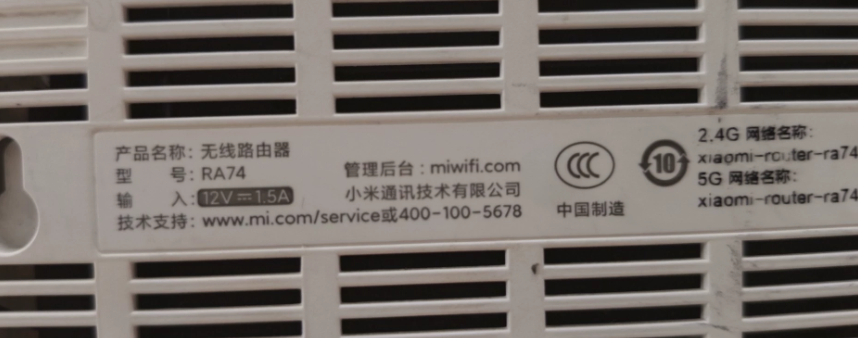

图片[1]-红米AX5400/RA74路由器刷机教程openwrt+恢复原厂-勇爱设计Netwrok
项目参数
型号Redmi 路由器 AX5400
主芯片高通 IPQ5018，双核 A53@1GHz，14nm，带独立 NPU
射频 / 无线5GHz：QCN9024，4×4 MIMO，160MHz，4K QAM2.4GHz：2×2 MIMO，40MHz
信号放大器共 6 路独立 FEM（5GHz×4，2.4GHz×2）
内存 / 闪存512MB DDR3，256MB NAND Flash
交换芯片千兆：EN8850DHE；2.5G：QCA8081

第一步备份文件https://wwbtk.lanzouq.com/ijBAt3qvgxmh

mobaxterm下载安装教程

mobaxterm工具登录软路由openwrt系统教程-勇爱设计Netwrok
mobaxterm工具登录软路由openwrt系统教程
admin的头像-勇爱设计Netwrok6个月前
7619914

第一步解锁SSH


==========================================================

Xiaomi MiR Patcher


 1 - Set IP-address (current value: 192.168.31.1)
 2 - Connect to device (install exploit)
 3 - Read full device info
 4 - Create full backup
 5 - Install EN/RU languages
 6 - Install permanent SSH
 7 - Install firmware (from directory "firmware")
 8 - {{{ Other functions }}}
 9 - [[ Reboot device ]]
 0 - Exit

Select: 2

device_name = RA74
rom_version = 1.0.63 release
mac_address = e4:54:e8:65:73:12
CountryCode = CN
Enter device WEB password: 12345678
WARN: Exploits "arn_switch/start_binding" not working!!!
Enable smartcontroller scene executor ...
Wait smartcontroller activation ...
___[504]___
Unlock dropbear service ...
Unlock SSH server ...
Set password "root" for root user ...
Enabling dropbear service ...
Run SSH server on port 22 ...
Test SSH connection to port 22 ...

#### SSH server are activated! ####

==========================================================

Xiaomi MiR Patcher


 1 - Set IP-address (current value: 192.168.31.1)
 2 - Connect to device (install exploit)
 3 - Read full device info
 4 - Create full backup
 5 - Install EN/RU languages
 6 - Install permanent SSH
 7 - Install firmware (from directory "firmware")
 8 - {{{ Other functions }}}
 9 - [[ Reboot device ]]
 0 - Exit

Select: 4

Download file: "/tmp/dmesg.log" ....
Download file: "/tmp/mtd_list.txt" ....
Download file: "/tmp/mtd_info.txt" ....
Download file: "/tmp/mtd_fdt.txt" ....
Download file: "/tmp/kcmdline.log" ....
Download file: "/tmp/kver.txt" ....
Download file: "/tmp/dmesg.log" ....
Download file: "/tmp/mtd_list.txt" ....
Download file: "/tmp/mtd_info.txt" ....
Download file: "/tmp/mtd_fdt.txt" ....
Full backup creating...
Download file "./backups/dump_mtd0_0.bin"...
File "backups/mtd0_0SBL1.bin" created!"
Backup of "0SBL1" saved to file "./backups/mtd0_0SBL1.bin"
Download file "./backups/dump_mtd1_0.bin"...
File "backups/mtd1_0MIBIB.bin" created!"
Backup of "0MIBIB" saved to file "./backups/mtd1_0MIBIB.bin"
Download file "./backups/dump_mtd2_0.bin"...
File "backups/mtd2_0BOOTCONFIG.bin" created!"
Backup of "0BOOTCONFIG" saved to file "./backups/mtd2_0BOOTCONFIG.bin"
Download file "./backups/dump_mtd3_0.bin"...
File "backups/mtd3_0BOOTCONFIG1.bin" created!"
Backup of "0BOOTCONFIG1" saved to file "./backups/mtd3_0BOOTCONFIG1.bin"
Download file "./backups/dump_mtd4_0.bin"...
File "backups/mtd4_0QSEE.bin" created!"
Backup of "0QSEE" saved to file "./backups/mtd4_0QSEE.bin"
Download file "./backups/dump_mtd5_0.bin"...
File "backups/mtd5_0QSEE1.bin" created!"
Backup of "0QSEE1" saved to file "./backups/mtd5_0QSEE1.bin"
Download file "./backups/dump_mtd6_0.bin"...
File "backups/mtd6_0DEVCFG.bin" created!"
Backup of "0DEVCFG" saved to file "./backups/mtd6_0DEVCFG.bin"
Download file "./backups/dump_mtd7_0.bin"...
File "backups/mtd7_0DEVCFG1.bin" created!"
Backup of "0DEVCFG1" saved to file "./backups/mtd7_0DEVCFG1.bin"
Download file "./backups/dump_mtd8_0.bin"...
File "backups/mtd8_0CDT.bin" created!"
Backup of "0CDT" saved to file "./backups/mtd8_0CDT.bin"
Download file "./backups/dump_mtd9_0.bin"...
File "backups/mtd9_0CDT1.bin" created!"
Backup of "0CDT1" saved to file "./backups/mtd9_0CDT1.bin"
Download file "./backups/dump_mtd10_0.bin"...
File "backups/mtd10_0APPSBLENV.bin" created!"
Backup of "0APPSBLENV" saved to file "./backups/mtd10_0APPSBLENV.bin"
Download file "./backups/dump_mtd11_0.bin"...
File "backups/mtd11_0APPSBL.bin" created!"
Backup of "0APPSBL" saved to file "./backups/mtd11_0APPSBL.bin"
Download file "./backups/dump_mtd12_0.bin"...
File "backups/mtd12_0APPSBL1.bin" created!"
Backup of "0APPSBL1" saved to file "./backups/mtd12_0APPSBL1.bin"
Download file "./backups/dump_mtd13_0.bin"...
File "backups/mtd13_0ART.bin" created!"
Backup of "0ART" saved to file "./backups/mtd13_0ART.bin"
Download file "./backups/dump_mtd14_0.bin"...
File "backups/mtd14_0TRAINING.bin" created!"
Backup of "0TRAINING" saved to file "./backups/mtd14_0TRAINING.bin"
Download file "./backups/dump_mtd15_0.bin"...
File "backups/mtd15_bdata.bin" created!"
Backup of "bdata" saved to file "./backups/mtd15_bdata.bin"
Download file "./backups/dump_mtd16_0.bin"...
File "backups/mtd16_crash.bin" created!"
Backup of "crash" saved to file "./backups/mtd16_crash.bin"
Download file "./backups/dump_mtd17_0.bin"...
File "backups/mtd17_crashsyslog.bin" created!"
Backup of "crashsyslog" saved to file "./backups/mtd17_crashsyslog.bin"
Download file "./backups/dump_mtd18_0.bin"...
Download file "./backups/dump_mtd18_160.bin"...
File "backups/mtd18_rootfs.bin" created!"
Backup of "rootfs" saved to file "./backups/mtd18_rootfs.bin"
Download file "./backups/dump_mtd19_0.bin"...
Download file "./backups/dump_mtd19_160.bin"...
File "backups/mtd19_rootfs1.bin" created!"
Backup of "rootfs1" saved to file "./backups/mtd19_rootfs1.bin"
Download file "./backups/dump_mtd20_0.bin"...
Download file "./backups/dump_mtd20_160.bin"...
File "backups/mtd20_overlay.bin" created!"
Backup of "overlay" saved to file "./backups/mtd20_overlay.bin"
Download file "./backups/dump_mtd21_0.bin"...
File "backups/mtd21_rsvd0.bin" created!"
Backup of "rsvd0" saved to file "./backups/mtd21_rsvd0.bin"
Download file "./backups/dump_mtd22_0.bin"...
Download file "./backups/dump_mtd22_21.bin"...
File "backups/mtd22_kernel.bin" created!"
Backup of "kernel" saved to file "./backups/mtd22_kernel.bin"
Download file "./backups/dump_mtd23_0.bin"...
Download file "./backups/dump_mtd23_160.bin"...
File "backups/mtd23_ubirootfs.bin" created!"
Backup of "ubirootfs" saved to file "./backups/mtd23_ubirootfs.bin"
Download file "./backups/dump_mtd24_0.bin"...
ERROR: Remote file "/tmp/mtd_dump.bin" not found!

Completed!

==========================================================

Xiaomi MiR Patcher


 1 - Set IP-address (current value: 192.168.31.1)
 2 - Connect to device (install exploit)
 3 - Read full device info
 4 - Create full backup
 5 - Install EN/RU languages
 6 - Install permanent SSH
 7 - Install firmware (from directory "firmware")
 8 - {{{ Other functions }}}
 9 - [[ Reboot device ]]
 0 - Exit

Select: 7

device: "RA74"
img_write = True
Image files in directory "firmware/":
  "firmware/immortalwrt-qualcommax-ipq50xx-xiaomi_redmi-ax5400-initramfs-factory.ubi"
Download file: "/tmp/dmesg.log" ....
Download file: "/tmp/mtd_list.txt" ....
Download file: "/tmp/mtd_info.txt" ....
Download file: "/tmp/mtd_fdt.txt" ....
Download file: "/tmp/kcmdline.log" ....
Download file: "/tmp/kver.txt" ....
Parse all images...
UBI: filetype: b'UBI#'
UBI: Decoding UBIFS...
UBI:   volume: "kernel"          size: 17903616
parse_ubifs = 1
FIT size = 0x110B0AC (17452 KiB)
FIT: name = "ARM64 OpenWrt FIT (Flattened Image Tree)"
FIT: def_cfg: "config@mp03.1"
FIT: def_cfg desc = "OpenWrt xiaomi_redmi-ax5400"
FIT: model = "xiaomi,redmi-ax5400"
FIT: def_fdt: "fdt-1"
FDT: desc = "ARM64 OpenWrt xiaomi_redmi-ax5400 device tree blob"
FDT: type = "flat_dt"
FDT: arch = "arm64"
KRN: desc = "ARM64 OpenWrt Linux-6.12.89"
KRN: type = "kernel"
KRN: arch = "arm64"
KRN: compression = "gzip"
KRN: data = 17843655 bytes
FDT: compatible = ['xiaomi,redmi-ax5400', 'qcom,ipq5018']
FDT: model = "Xiaomi Redmi AX5400"
FDT: dt_part: ['/soc@0/spi@79b0000/nand@0/partitions']
FIT: detect initrd into kernel image
fw_img: 18304 KiB | kernel: 17452 KiB | rootfs: 1 KiB
Download file: "/tmp/bl_0SBL1.bin" ....
Download file: "/tmp/bl_0APPSBL.bin" ....
Download file: "/tmp/env_0APPSBLENV.bin" ....
Download file: "/tmp/env_bdata.bin" ....
Download file: "/tmp/env_0SBL1.bin" ....
current flag_boot_rootfs = 1
install_method = 200
--------- prepare command lines -----------
fw_img: 18304 KiB | kernel: 17452 KiB | rootfs: 1 KiB
------------- flash images -------------
Upload file: "tmp/fw/fw_img.bin" ....
Writing firmware image to addr 0x00A80000 ...
  mtd -e "rootfs" write "/tmp/fw_img.bin" "rootfs"
Download file: "/tmp/mtd18_0_18743296_138042.md5" ....
Run scripts for change NVRAM params...
Boot from firmware [0] activated.
Download file: "/tmp/nvram.txt" ....
The firmware has been successfully flashed!
Send command "reboot" via SSH/Telnet ...
Traceback (most recent call last):
  File "install_fw.py", line 1163, in <module>
    xf.flash()
  File "install_fw.py", line 1120, in flash
    gw.run_cmd("reboot -f", die_on_error = False)
  File "C:\Users\yong\Desktop\小米AX5400刷机openwrt大分区\step1解锁SSH\xmir-patcher-main\gateway.py", line 939, in run_cmd
    channel.close()
  File "ssh2\channel.pyx", line 201, in ssh2.channel.Channel.close
  File "ssh2\utils.pyx", line 148, in ssh2.utils.handle_error_codes
ssh2.exceptions.Timeout

==========================================================

Xiaomi MiR Patcher


 1 - Set IP-address (current value: 192.168.31.1)
 2 - Connect to device (install exploit)
 3 - Read full device info
 4 - Create full backup
 5 - Install EN/RU languages
 6 - Install permanent SSH
 7 - Install firmware (from directory "firmware")
 8 - {{{ Other functions }}}
 9 - [[ Reboot device ]]
 0 - Exit

Select:

root@XiaoQiang:~# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 00080000 00020000 "0:SBL1"
mtd1: 00080000 00020000 "0:MIBIB"
mtd2: 00040000 00020000 "0:BOOTCONFIG"
mtd3: 00040000 00020000 "0:BOOTCONFIG1"
mtd4: 00100000 00020000 "0:QSEE"
mtd5: 00100000 00020000 "0:QSEE_1"
mtd6: 00040000 00020000 "0:DEVCFG"
mtd7: 00040000 00020000 "0:DEVCFG_1"
mtd8: 00040000 00020000 "0:CDT"
mtd9: 00040000 00020000 "0:CDT_1"
mtd10: 00080000 00020000 "0:APPSBLENV"
mtd11: 00140000 00020000 "0:APPSBL"
mtd12: 00140000 00020000 "0:APPSBL_1"
mtd13: 00100000 00020000 "0:ART"
mtd14: 00080000 00020000 "0:TRAINING"
mtd15: 00080000 00020000 "bdata"
mtd16: 00080000 00020000 "crash"
mtd17: 00080000 00020000 "crash_syslog"
mtd18: 02400000 00020000 "rootfs"
mtd19: 02400000 00020000 "rootfs_1"
mtd20: 01f00000 00020000 "overlay"
mtd21: 00080000 00020000 "rsvd0"
mtd22: 002aa000 0001f000 "kernel"
mtd23: 0141a000 0001f000 "ubi_rootfs"
mtd24: 01b20000 0001f000 "data"
root@XiaoQiang:~#

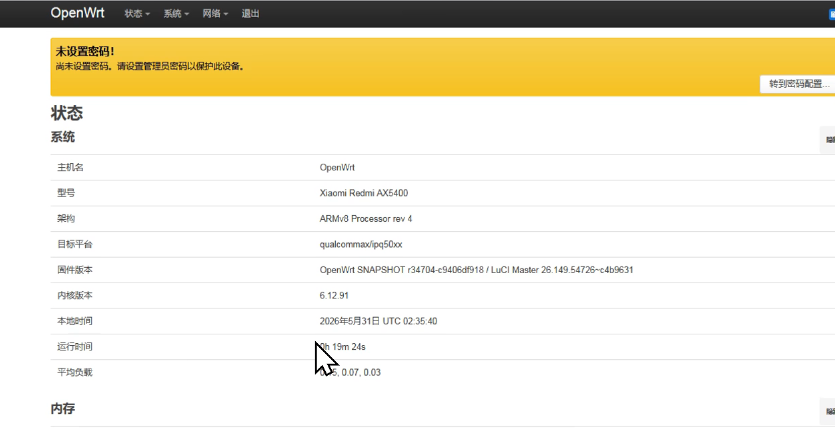

root@OpenWrt:~# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 00080000 00020000 "0:sbl1"
mtd1: 00080000 00020000 "0:mibib"
mtd2: 00040000 00020000 "0:bootconfig"
mtd3: 00040000 00020000 "0:bootconfig1"
mtd4: 00100000 00020000 "0:qsee"
mtd5: 00100000 00020000 "0:qsee_1"
mtd6: 00040000 00020000 "0:devcfg"
mtd7: 00040000 00020000 "0:devcfg_1"
mtd8: 00040000 00020000 "0:cdt"
mtd9: 00040000 00020000 "0:cdt_1"
mtd10: 00080000 00020000 "0:appsblenv"
mtd11: 00140000 00020000 "0:appsbl"
mtd12: 00140000 00020000 "0:appsbl_1"
mtd13: 00100000 00020000 "0:art"
mtd14: 00080000 00020000 "0:training"
mtd15: 00080000 00020000 "bdata"
mtd16: 00080000 00020000 "crash"
mtd17: 00080000 00020000 "crash_syslog"
mtd18: 02400000 00020000 "ubi_kernel"
mtd19: 05180000 00020000 "rootfs"
root@OpenWrt:~#

第二步刷入openwrt最新版

图片[2]-红米AX5400/RA74路由器刷机教程openwrt+恢复原厂-勇爱设计Netwrok

root@OpenWrt:~# apk update
 [https://downloads.openwrt.org/snapshots/targets/qualcommax/ipq50xx/packages/packages.adb]
 [https://downloads.openwrt.org/snapshots/packages/aarch64_cortex-a53/base/packages.adb]
 [https://downloads.openwrt.org/snapshots/targets/qualcommax/ipq50xx/kmods/6.12.91-1-97cfa460a6caecafe438e15beaa79c5e/packages.adb]
 [https://downloads.openwrt.org/snapshots/packages/aarch64_cortex-a53/luci/packages.adb]
 [https://downloads.openwrt.org/snapshots/packages/aarch64_cortex-a53/packages/packages.adb]
 [https://downloads.openwrt.org/snapshots/packages/aarch64_cortex-a53/routing/packages.adb]
 [https://downloads.openwrt.org/snapshots/packages/aarch64_cortex-a53/telephony/packages.adb]
 [https://downloads.openwrt.org/snapshots/packages/aarch64_cortex-a53/video/packages.adb]
OK: 11277 distinct packages available
root@OpenWrt:~# apk add uhttpd luci luci-i18n-base-zh-cn
OK: 26.9 MiB in 178 packages
root@OpenWrt:~# /etc/init.d/uhttpd enable
root@OpenWrt:~# /etc/init.d/uhttpd start
4+0 records in
4+0 records out
root@OpenWrt:~#
Network error: Software caused connection abort

恢复原厂系统

© 版权声明
文章版权归作者所有，未经允许请勿转载。
THE END
刷机教程路由器刷机
喜欢就支持一下吧
点赞12 分享
admin的头像-勇爱设计Netwrok
小米AX3000T路由器刷机教程傻瓜式uboot版支持v1v2+恢复原厂系统教程RD03-勇爱设计Netwrok
小米AX3000T路由器刷机教程傻瓜式uboot版支持v1v2+恢复原厂系统教程RD03
小米AX3000T路由器刷机教程傻瓜式uboot版支持v1v2+恢复原厂系统教程R...
6个月前 1.2W+
红米AX6000路由器RB06傻瓜式刷机教程uboot/openwrt软路由+刷回原厂系统教程-勇爱设计Netwrok
红米AX6000路由器RB06傻瓜式刷机教程uboot/openwrt软路由+刷回原厂系统教程
红米AX6000路由器RB06傻瓜式刷机教程uboot/openwrt软路由+刷回原厂系...
8个月前 6838
（固件下载）openwrt软路由系统中国以及全球有哪些分支版本总结和推荐-勇爱设计Netwrok
（固件下载）openwrt软路由系统中国以及全球有哪些分支版本总结和推荐
（固件下载）openwrt软路由系统中国以及全球有哪些分支版本总结和推...
8个月前 6498
小米路由器4A/4A千兆版/R4A/R4AC傻瓜式刷机教程breed版+openwrt分区版支持V1V2+恢复原厂教程-勇爱设计Netwrok
小米路由器4A/4A千兆版/R4A/R4AC傻瓜式刷机教程breed版+openwrt分区版支持V1V2+恢复原厂教程
小米路由器4A/4A千兆版/R4A/R4AC傻瓜式刷机教程breed版+openwrt分区...
4个月前 6429
mobaxterm工具登录软路由openwrt系统教程-勇爱设计Netwrok
mobaxterm工具登录软路由openwrt系统教程
mobaxterm工具登录软路由openwrt系统教程
7个月前 6199
cudy TR3000路由器傻瓜式刷机教程uboot版大分区+恢复原厂教程(128M/256M)-勇爱设计Netwrok
cudy TR3000路由器傻瓜式刷机教程uboot版大分区+恢复原厂教程(128M/256M)
cudy TR3000路由器傻瓜式刷机教程uboot版大分区+恢复原厂教程(128M/2...
6个月前 5775
相关推荐
小米AX3000T路由器刷机教程傻瓜式uboot版支持v1v2+恢复原厂系统教程RD03-勇爱设计Netwrok
小米AX3000T路由器刷机教程傻瓜式uboot版支持v1v2+恢复原厂系统教程RD03
小米AX3000T路由器刷机教程傻瓜式uboot版支持v1v2+恢复原厂系统教程RD03
6个月前 1.2W+
红米AX6000路由器RB06傻瓜式刷机教程uboot/openwrt软路由+刷回原厂系统教程-勇爱设计Netwrok
红米AX6000路由器RB06傻瓜式刷机教程uboot/openwrt软路由+刷回原厂系统教程
红米AX6000路由器RB06傻瓜式刷机教程uboot/openwrt软路由+刷回原厂系统教程
8个月前 6838
（固件下载）openwrt软路由系统中国以及全球有哪些分支版本总结和推荐-勇爱设计Netwrok
（固件下载）openwrt软路由系统中国以及全球有哪些分支版本总结和推荐
（固件下载）openwrt软路由系统中国以及全球有哪些分支版本总结和推荐
8个月前 6498
小米路由器4A/4A千兆版/R4A/R4AC傻瓜式刷机教程breed版+openwrt分区版支持V1V2+恢复原厂教程-勇爱设计Netwrok
小米路由器4A/4A千兆版/R4A/R4AC傻瓜式刷机教程breed版+openwrt分区版支持V1V2+恢复原厂教程
小米路由器4A/4A千兆版/R4A/R4AC傻瓜式刷机教程breed版+openwrt分区版支持V1V2+恢复原厂教程
4个月前 6429
mobaxterm工具登录软路由openwrt系统教程-勇爱设计Netwrok
mobaxterm工具登录软路由openwrt系统教程
mobaxterm工具登录软路由openwrt系统教程
7个月前 6199
cudy TR3000路由器傻瓜式刷机教程uboot版大分区+恢复原厂教程(128M/256M)-勇爱设计Netwrok
cudy TR3000路由器傻瓜式刷机教程uboot版大分区+恢复原厂教程(128M/256M)
cudy TR3000路由器傻瓜式刷机教程uboot版大分区+恢复原厂教程(128M/256M)
6个月前 5775
评论 共3条

请登录后发表评论

    只看作者
路由器商城99新带原厂包装

栏目
小米AX3000T路由器刷机教程傻瓜式uboot版支持v1v2+恢复原厂系统教程RD03-勇爱设计Netwrok

1小米AX3000T路由器刷机教程傻瓜式uboot版支持v1v2+恢复原厂系统教程RD03

红米AX6000路由器RB06傻瓜式刷机教程uboot/openwrt软路由+刷回原厂系统教程-勇爱设计Netwrok

2红米AX6000路由器RB06傻瓜式刷机教程uboot/openwrt软路由+刷回原厂系统教程

（固件下载）openwrt软路由系统中国以及全球有哪些分支版本总结和推荐-勇爱设计Netwrok

3（固件下载）openwrt软路由系统中国以及全球有哪些分支版本总结和推荐

小米路由器4A/4A千兆版/R4A/R4AC傻瓜式刷机教程breed版+openwrt分区版支持V1V2+恢复原厂教程-勇爱设计Netwrok

4小米路由器4A/4A千兆版/R4A/R4AC傻瓜式刷机教程breed版+openwrt分区版支持V1V2+恢复原厂教程

mobaxterm工具登录软路由openwrt系统教程-勇爱设计Netwrok

5mobaxterm工具登录软路由openwrt系统教程

cudy TR3000路由器傻瓜式刷机教程uboot版大分区+恢复原厂教程(128M/256M)-勇爱设计Netwrok

6cudy TR3000路由器傻瓜式刷机教程uboot版大分区+恢复原厂教程(128M/256M)

加载更多

自用原生IP推荐最低2美元/月

https://iproyal.cn/
