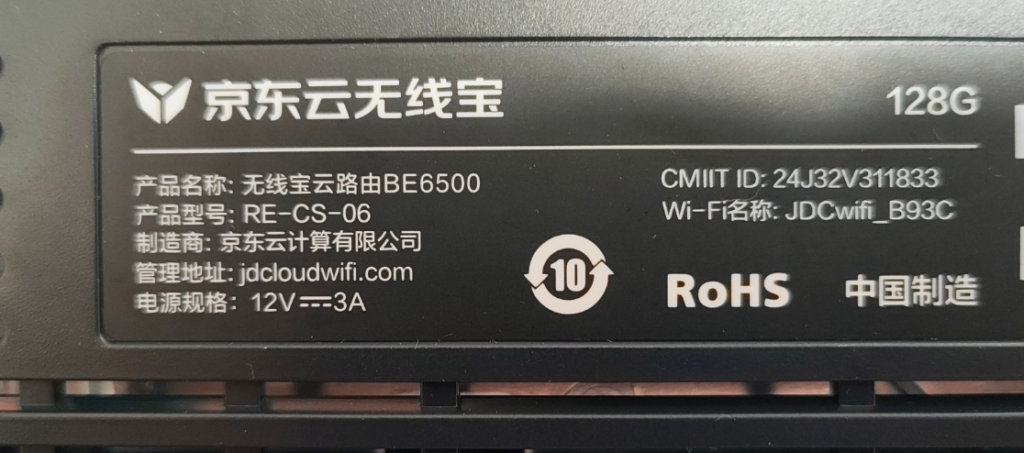

京东云赵云BE6500刷机教程openwrt+恢复原厂+TTL刷机+免拆刷机RE-CS-06

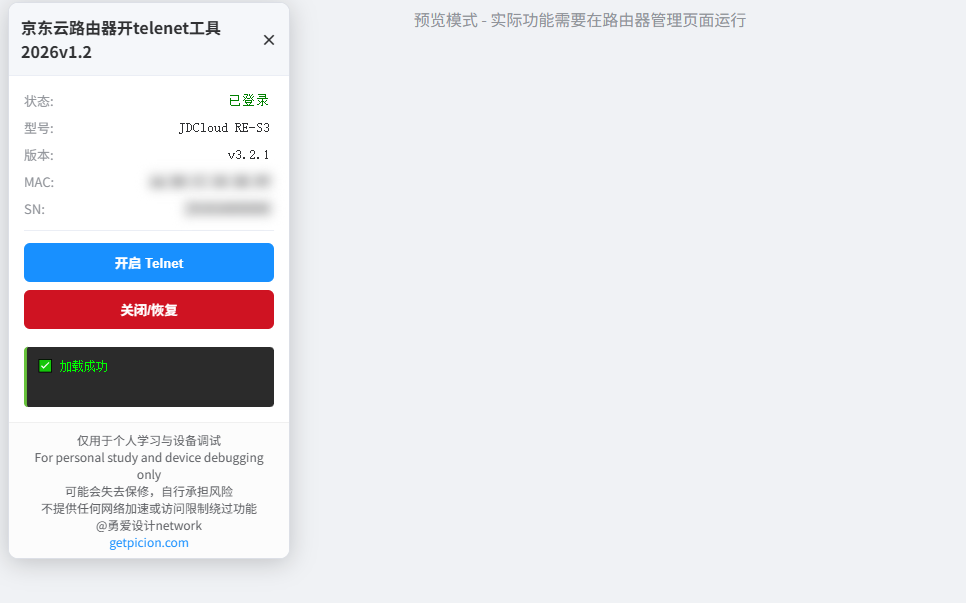

原厂固件版本是4.4.1可以免拆刷机。如果是最新版固件需要拆机才能刷机。教程支持两个刷机方式。

TTL教程

1.TLL刷机连接

Format: Log Type - Time(microsec) - Message - Optional Info
Log Type: B - Since Boot(Power On Reset),  D - Delta,  S - Statistic
S - QC_IMAGE_VERSION_STRING=BOOT.XF.0.3.1.1-00086-IPQ90xxLZB-2
S - IMAGE_VARIANT_STRING=IPQ5332LA
S - OEM_IMAGE_VERSION_STRING=crm-ubuntu142
S - Boot Interface: eMMC
S - Secure Boot: Off
S - Boot Config @ 0x000a602c = 0x000002c3
S - JTAG ID @ 0x000a607c = 0x1023d0e1
S - OEM ID @ 0x000a6080 = 0x00000000
S - Serial Number @ 0x000a60a8 = 0x77678b02
S - OEM Config Row 0 @ 0x000a4058 = 0x0000000000000000
S - OEM Config Row 1 @ 0x000a4060 = 0x0000000000000000
S - Feature Config Row 0 @ 0x000a4018 = 0x0000800004000001
S - Feature Config Row 1 @ 0x000a4020 = 0x0000000000000000
S - Feature Config Row 2 @ 0x000a4028 = 0x0000000000000000
S - FM_VERSION @ 0x000a4004 = 0x00000005
S - TAG_VERSION @ 0x000a4004 = 0x00000000
S - FEATURE ID @ 0x000a4000 = 0x00000000
S - PBL Patch Ver: 1
S - TME-L LCS: 0x0b
S - I-cache: Off
S - D-cache: Off
B -      3413 - PBL, Start
B -       959 - bootable_media_detect_entry, Start
B -      2474 - bootable_media_detect_success, Start
B -    124320 - elf_loader_entry, Start
B -    124323 - auth_hash_seg_entry, Start
B -    125750 - auth_hash_seg_exit, Start
B -    126402 - elf_segs_hash_verify_entry, Start
B -    167981 - elf_segs_hash_verify_exit, Start
B -    237719 - auth_xbl_sec_hash_seg_entry, Start
B -    237779 - auth_xbl_sec_hash_seg_exit, Start
B -    259948 - xbl_sec_segs_hash_verify_entry, Start
B -    259950 - xbl_sec_segs_hash_verify_exit, Start
B -    279748 - PBL, End
B -    245464 - SBL1, Start
B -   1049017 - GCC [RstStat:0x0, RstDbg:0x600000] WDog Stat : 0x4
B -   1051762 - System Reset Reason : Power on Reset [0x20]
B -   1057008 - clock_init, Start
D -       579 - clock_init, Delta
B -   1065212 - boot_flash_init, Start
D -     24918 - boot_flash_init, Delta
B -   1093211 - sbl1_ddr_set_default_params, Start
D -        61 - sbl1_ddr_set_default_params, Delta
B -   1099769 - boot_config_data_table_init, Start
D -      1342 - boot_config_data_table_init, Delta - (615 Bytes)
B -   1108675 - CDT Version:2,Platform ID:8,Major ID:6,Minor ID:0,Subtype:0
B -   1114348 - Image Load, Start
D -      6618 - OEM_MISC Image Loaded, Delta - (0 Bytes)
B -   1123742 - Image Load, Start
D -      5032 - PMIC Image Loaded, Delta - (0 Bytes)
B -   1131641 - sbl1_ddr_set_params, Start
B -   1136399 - CPR configuration: 0x3a7
B -   1139846 - Pre_DDR_clock_init, Start
D -         0 - Pre_DDR_clock_init, Delta
D -         0 - sbl1_ddr_set_params, Delta
B -   1210087 - Image Load, Start
D -        92 - APDP Image Loaded, Delta - (0 Bytes)
B -   1215333 - Image Load, Start
D -     23150 - TME-L FW Image Loaded, Delta - (49592 Bytes)
B -   1238757 - Image Load, Start
D -      2135 - Auth Metadata
D -      4605 - Segments hash check
D -     13237 - QSEE Dev Config Image Loaded, Delta - (35096 Bytes)
B -   1254129 - Image Load, Start
D -    126178 - Auth Metadata
D -    198067 - Segments hash check
D -    357491 - QSEE Image Loaded, Delta - (1466408 Bytes)
B -   1612321 - Image Load, Start
D -      2104 - Auth Metadata
D -     59079 - Segments hash check
D -     73902 - APPSBL Image Loaded, Delta - (441700 Bytes)
B -   1689761 - SBL1, End
D -   1447682 - SBL1, Delta
S - Flash Throughput, 54860 KB/s  (1994083 Bytes,  36348 us)
S - Core 0 Frequency, 800 MHz
S - DDR Frequency, 1200 MHz


U-Boot 2016.01 (Jan 18 2024 - 04:18:31 +0000), Build: jenkins-zhaoyun_release_master-25

DRAM:  smem ram ptable found: ver: 2 len: 4
1 GiB
NAND:  SF: Unsupported flash IDs: manuf 00, jedec 0000, ext_jedec 0000
ipq_spi: SPI Flash not found (bus/cs/speed/mode) = (0/0/48000000/0)
0 MiB
MMC:   <NULL>: 0 (eMMC)
PCI0 is not defined in the device tree
PCI Link Intialized
PCI2 is not defined in the device tree
In:    serial@78AF000
Out:   serial@78AF000
Err:   serial@78AF000
machid: 8060000
eth0 MAC Address from ART is not valid
eth1 MAC Address from ART is not valid

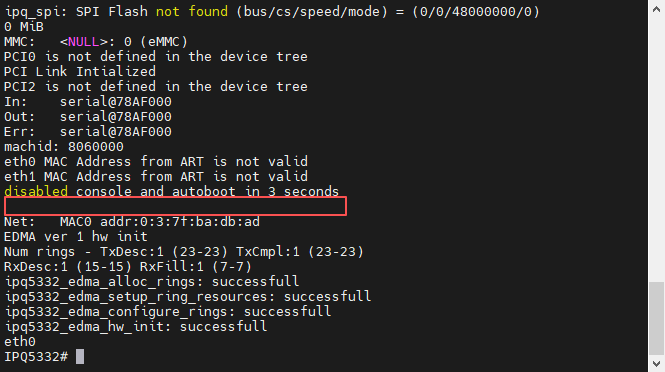

disabled console and autoboot in 3 seconds

Net:   MAC0 addr:0:3:7f:ba:db:ad
EDMA ver 1 hw init
Num rings - TxDesc:1 (23-23) TxCmpl:1 (23-23)
RxDesc:1 (15-15) RxFill:1 (7-7)
ipq5332_edma_alloc_rings: successfull
ipq5332_edma_setup_ring_resources: successfull
ipq5332_edma_configure_rings: successfull
ipq5332_edma_hw_init: successfull
eth0
IPQ5332# mmc rescan
IPQ5332#
IPQ5332#

IPQ5332# mmc part

Partition Map for MMC device 0  --   Partition Type: EFI

Part    Start LBA       End LBA         Name
        Attributes
        Type GUID
        Partition GUID
  1     0x00000022      0x00000821      "0:SBL1"
        attrs:  0x0000000000000000
        type:   dea0ba2c-cbdd-4805-b4f9-f428251c3e98
        guid:   d52dbaec-dfc8-42fb-64dd-445f3b099754
  2     0x00000822      0x00001021      "0:SBL1_1"
        attrs:  0x0000000000000000
        type:   7a3df1a3-a31a-454d-bd78-df259ed486be
        guid:   6b4414a8-8629-08f7-82e7-09c1e7f72932
  3     0x00001022      0x00001221      "0:BOOTCONFIG"
        attrs:  0x0000000000000000
        type:   2b7d04ff-31f0-4e6a-be9a-da50314dad58
        guid:   be258bb3-f9de-89c1-fc30-cbb5528cc70d
  4     0x00001222      0x00001421      "0:BOOTCONFIG1"
        attrs:  0x0000000000000000
        type:   7bd25378-5c39-11e5-8a77-40a8f05f1418
        guid:   74314ee9-87bb-a623-cb00-f9e1302b9d3a
  5     0x00001422      0x00002221      "0:QSEE"
        attrs:  0x0000000000000000
        type:   a053aa7f-40b8-4b1c-ba08-2f68ac71a4f4
        guid:   339438da-043d-53f4-8a39-2ca16c5d5541
  6     0x00002222      0x00003021      "0:QSEE_1"
        attrs:  0x0000000000000000
        type:   a6dd74a1-c8bf-4dbc-ae39-62b8e78c4038
        guid:   0c048ccd-ede7-e33f-850f-1611037f7af9
  7     0x00003022      0x00003221      "0:DEVCFG"
        attrs:  0x0000000000000000
        type:   f65d4b16-343d-4e25-aafc-be99b6556a6d
        guid:   a03834e6-885c-f699-b633-2aaa1ad5c8f3
  8     0x00003222      0x00003421      "0:DEVCFG_1"
        attrs:  0x0000000000000000
        type:   48bfa451-9443-46f7-b400-892a6b1bfc16
        guid:   ff8afa9d-709f-5393-529a-56a1f7c45e50
  9     0x00003422      0x00003821      "0:TME"
        attrs:  0x0000000000000000
        type:   0833175e-af8f-bacc-f2a2-5b70354b1a0a
        guid:   d3b40e1f-ea97-c181-30de-14e84fbc9c8c
 10     0x00003822      0x00003c21      "0:TME_1"
        attrs:  0x0000000000000000
        type:   66a49874-13d3-66ea-b0b7-3f61c7e405cd
        guid:   805d80f0-b281-df25-92db-af66cfee818e
 11     0x00003c22      0x00003e21      "0:CDT"
        attrs:  0x0000000000000000
        type:   a19f205f-ccd8-4b6d-8f1e-2d9bc24cffb1
        guid:   50ac1dec-83f6-8544-dd46-6aa3abb8a12c
 12     0x00003e22      0x00004021      "0:CDT_1"
        attrs:  0x0000000000000000
        type:   7a795379-c250-4282-a2c7-fc4e13f4a43d
        guid:   ec0ece19-5cfc-af10-0767-18f290850932
 13     0x00004022      0x00004221      "0:APPSBLENV"
        attrs:  0x0000000000000000
        type:   300ffdcd-22e0-47e7-9a23-f16ed9382387
        guid:   6829f780-77f6-7f2a-8be1-cde7e76a31ab
 14     0x00004222      0x00004821      "0:APPSBL"
        attrs:  0x0000000000000000
        type:   400ffdcd-22e0-47e7-9a23-f16ed9382388
        guid:   82c347d6-cb45-e6fe-7a9f-689ed38c5940
 15     0x00004822      0x00004e21      "0:APPSBL_1"
        attrs:  0x0000000000000000
        type:   c126787d-3eef-444c-9e43-feff3f103e22
        guid:   f09fc063-0ba5-b895-32dc-6abaf2be36f0
 16     0x00004e22      0x00005221      "0:ETHPHYFW"
        attrs:  0x0000000000000000
        type:   c1dc4cab-430b-4cdc-a8c5-7115912b74fe
        guid:   fe8a5d81-c943-e030-6d86-002e2916e73f
 17     0x00005222      0x00005a21      "0:ART"
        attrs:  0x0000000000000000
        type:   a72e50c1-d37c-429d-9620-35fca612b9a8
        guid:   f7d1a6a8-d365-793d-9238-81be80d8023e
 18     0x00005a22      0x00005c21      "0:LICENSE"
        attrs:  0x0000000000000000
        type:   a7a81a61-66ce-c908-f4a2-82d39d2aff57
        guid:   e128384c-02fb-0d93-76cd-629f02075a85
 19     0x00005c22      0x0000bc21      "0:WIFIFW"
        attrs:  0x0000000000000000
        type:   888d8069-8d27-40a8-95a9-6006e1ce9b3b
        guid:   1a1d50c1-c259-fa39-6790-46423b2fd8e7
 20     0x0000bc22      0x00011c21      "0:WIFIFW_1"
        attrs:  0x0000000000000000
        type:   981476f5-5cd7-42db-9ce9-87b3a31aadbd
        guid:   ca38814f-0460-2f98-18de-e0639d08846c
 21     0x00011c22      0x00015421      "0:HLOS"
        attrs:  0x0000000000000000
        type:   b51f2982-3ebe-46de-8721-ee641e1f9997
        guid:   c3a268fd-eae9-e835-aaa4-f31e3ab17b01
 22     0x00015422      0x00018c21      "0:HLOS_1"
        attrs:  0x0000000000000000
        type:   a71da577-7f81-4626-b4a2-e377f9174525
        guid:   7b8148fb-60e5-cb2b-3cb1-020e7d347d90
 23     0x00018c22      0x00055c21      "rootfs"
        attrs:  0x0000000000000000
        type:   98d2248d-7140-449f-a954-39d67bd6c3b4
        guid:   0f324228-4b42-bdf2-ba81-e7036f7f77ea
 24     0x00055c22      0x00092c21      "rootfs_1"
        attrs:  0x0000000000000000
        type:   5647b280-dc2a-485d-9913-cf53ac40fa32
        guid:   c2244eb8-9d5a-5cff-9715-9ae83dc809f9
 25     0x00092c22      0x00092e21      "factory"
        attrs:  0x0000000000000000
        type:   a72e50c1-d37c-429d-9620-35fca612b9a8
        guid:   2dfc3de5-5f10-bbf8-d72a-405261091789
 26     0x00092e22      0x00292e21      "plugin"
        attrs:  0x0000000000000000
        type:   5647b280-dc2a-485d-9913-cf53ac40fb42
        guid:   8e089ac3-8f3b-49af-aff5-ffce4efadd9d
 27     0x00292e22      0x002d2e21      "log"
        attrs:  0x0000000000000000
        type:   5647b280-dc2a-485d-9913-cf53ac40fb43
        guid:   3c6538be-d417-a2d4-ddc5-c2cce4b516b8
 28     0x002d2e22      0x004d2e21      "swap"
        attrs:  0x0000000000000000
        type:   5647b280-dc2a-485d-9913-cf53ac40fc41
        guid:   dd2fcbc9-7860-b21d-bda5-b91e77374b84
 29     0x004d2e22      0x0e677fde      "storage"
        attrs:  0x0000000000000000
        type:   5647b280-dc2a-485d-9913-cf53ac40fc42
        guid:   4a8b042a-58e9-56fc-ce73-984546af96ab
IPQ5332#
