（拆机+免拆）京东云路由器亚瑟ax1800pro刷机教程+恢复原厂教程RE-SS-01

已经更新最新版免拆教程，支持最新版免拆。下载免拆工具包即可。不建议最终固件用视频演示的kwrt，bug有点多。用工具包的nns固件

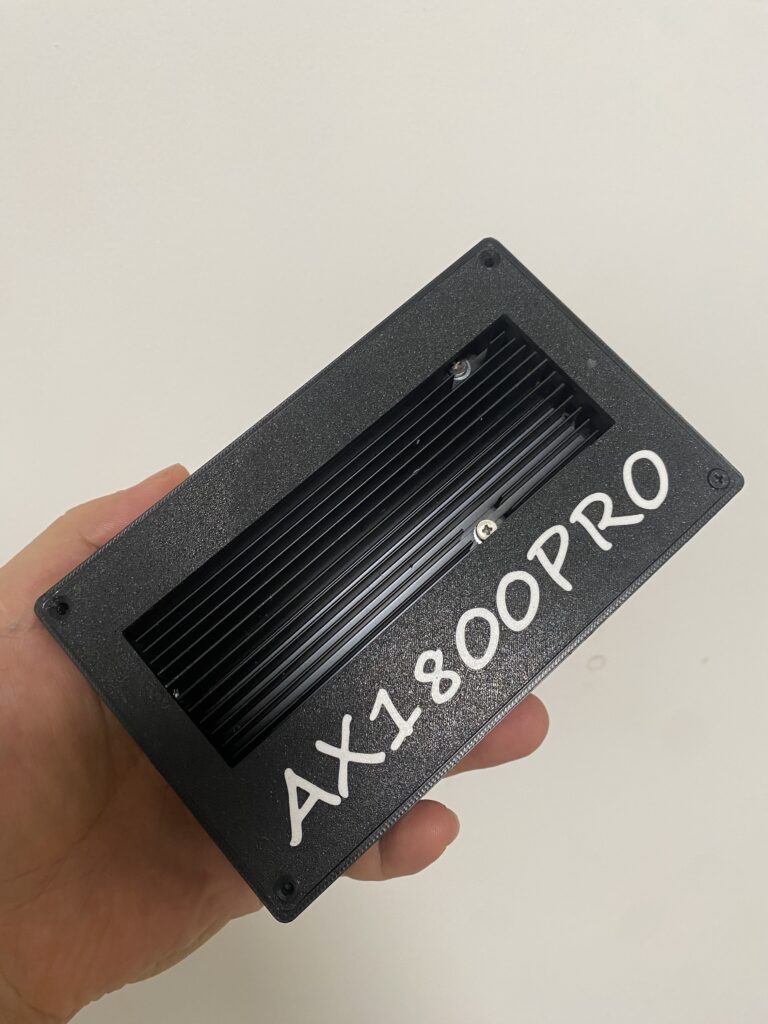

如果需要已经刷好的改装外壳散热设计可以进我的店铺购买，全国包邮，包售后

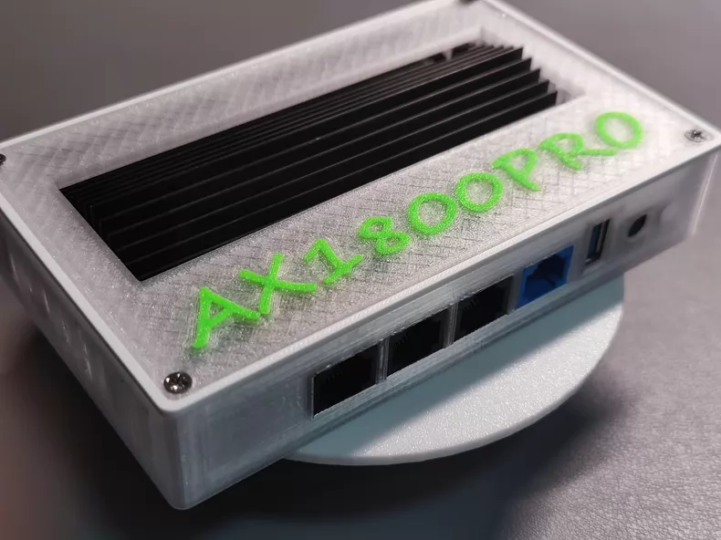

京东云亚瑟 AX1800Pro 路由器64G/128G+改装3D打印外壳更好散热

￥119

如果需要购买改装外壳散热的可以点击商城购买

京东云亚瑟 AX1800Pro 路由器64G/128G+改装3D打印外壳更好散热

￥119

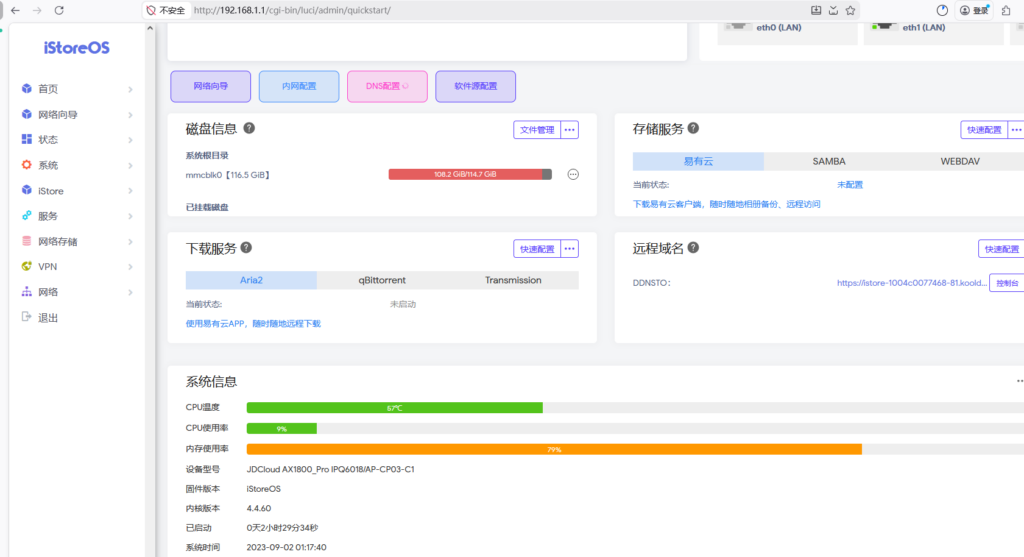

教程需要拆机操作。有附带拆机图文。自但是也做到了尽量的简易。跟着做一定刷机成功，刷的是最新版openwrt。也可以刷istoreos。

istoreos最新版https://fw0.koolcenter.com/Lean/JDC_AX1800_Pro/iStoreOS-R24.05.19-ipq60xx-generic-jdcloud_ax1800-pro-squashfs-factory.rar

kwrt如果软件源错误，是新版得bug。可以更换下软件源，或者可以用老一点版本。点击下载

备份（不通用）通过网盘分享的文件：ax1800-1111m.img
链接: https://pan.baidu.com/s/1VD-LfvnX3b73JcoDtJi1Ow 提取码: se5z

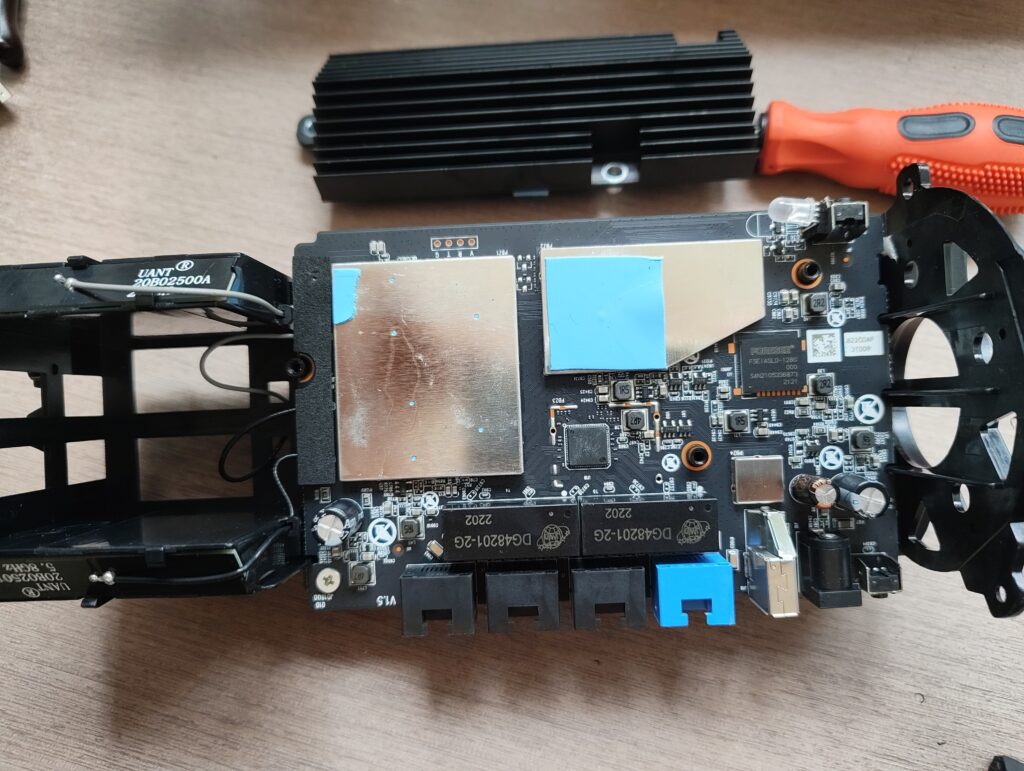

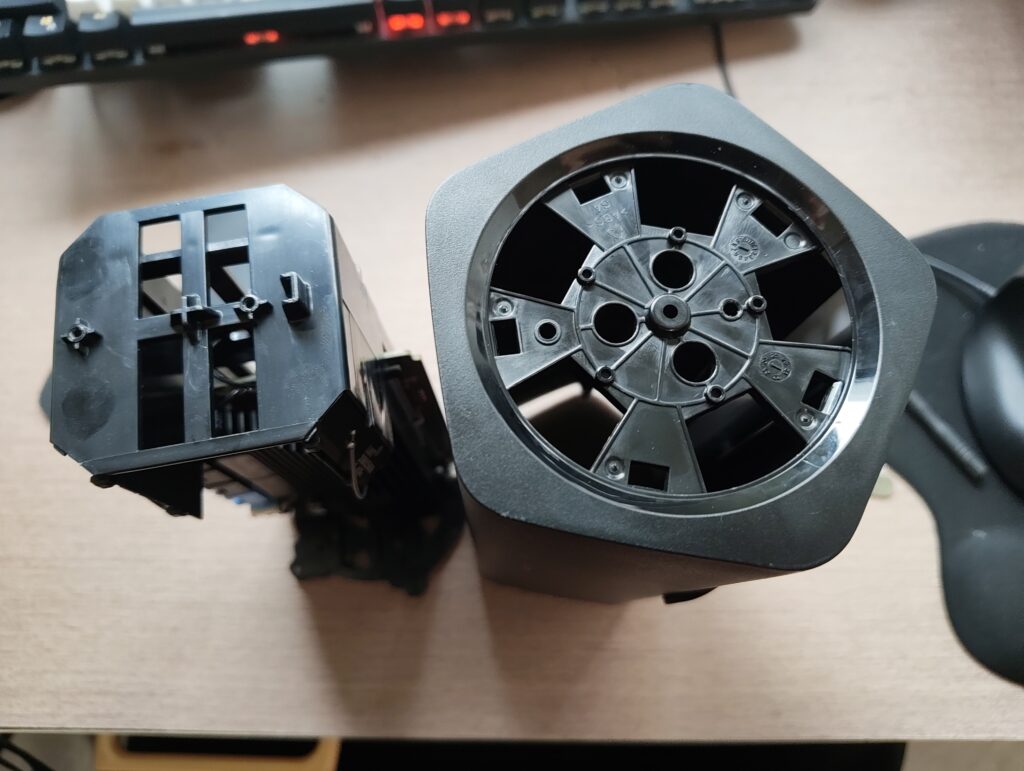

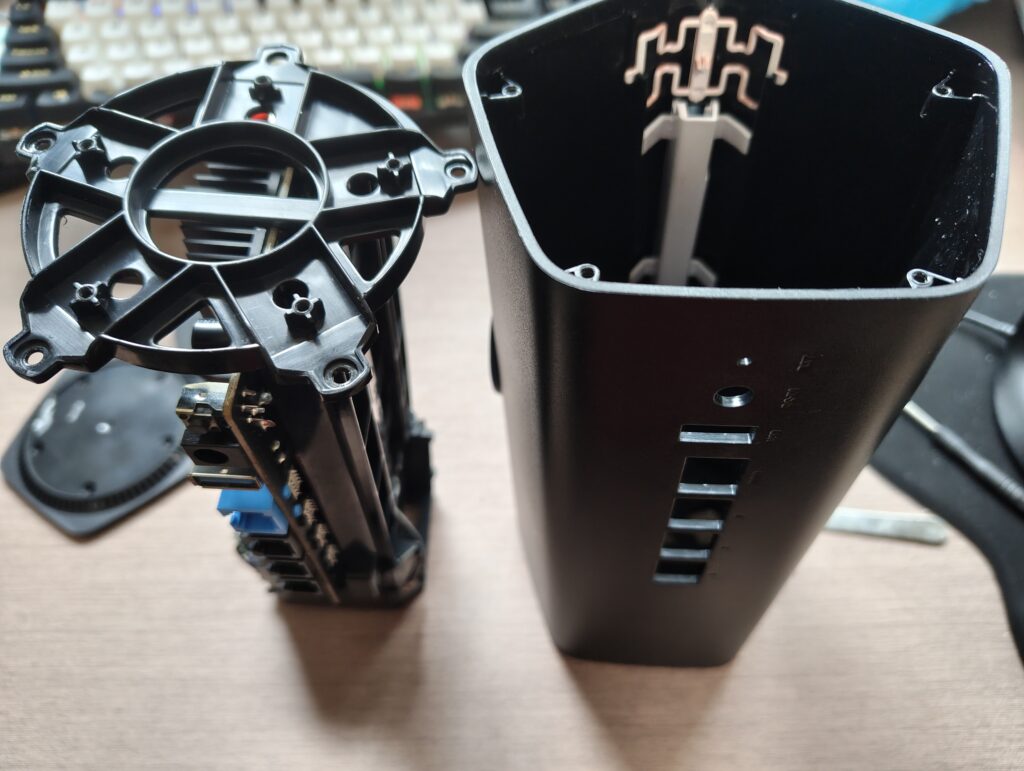

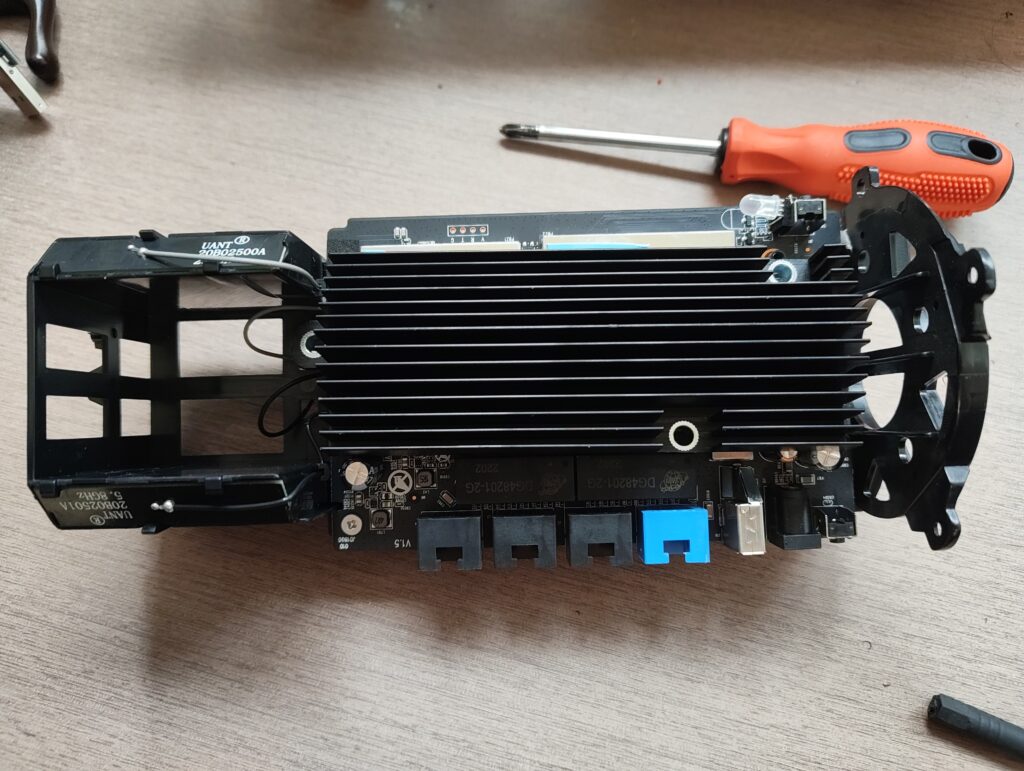

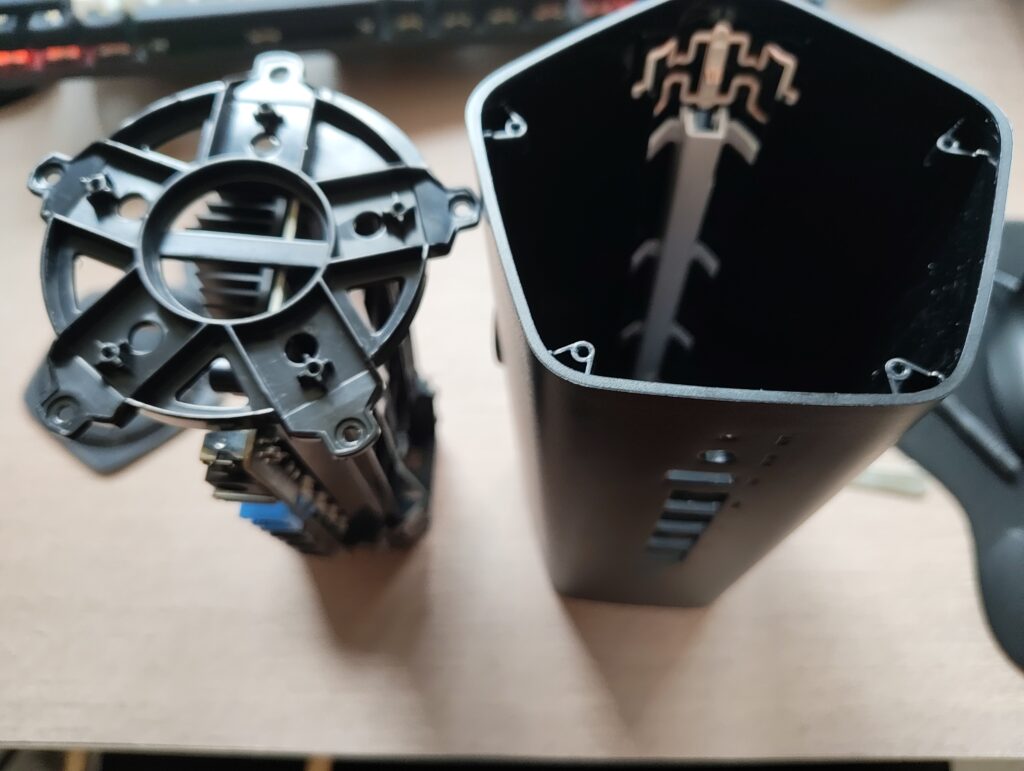

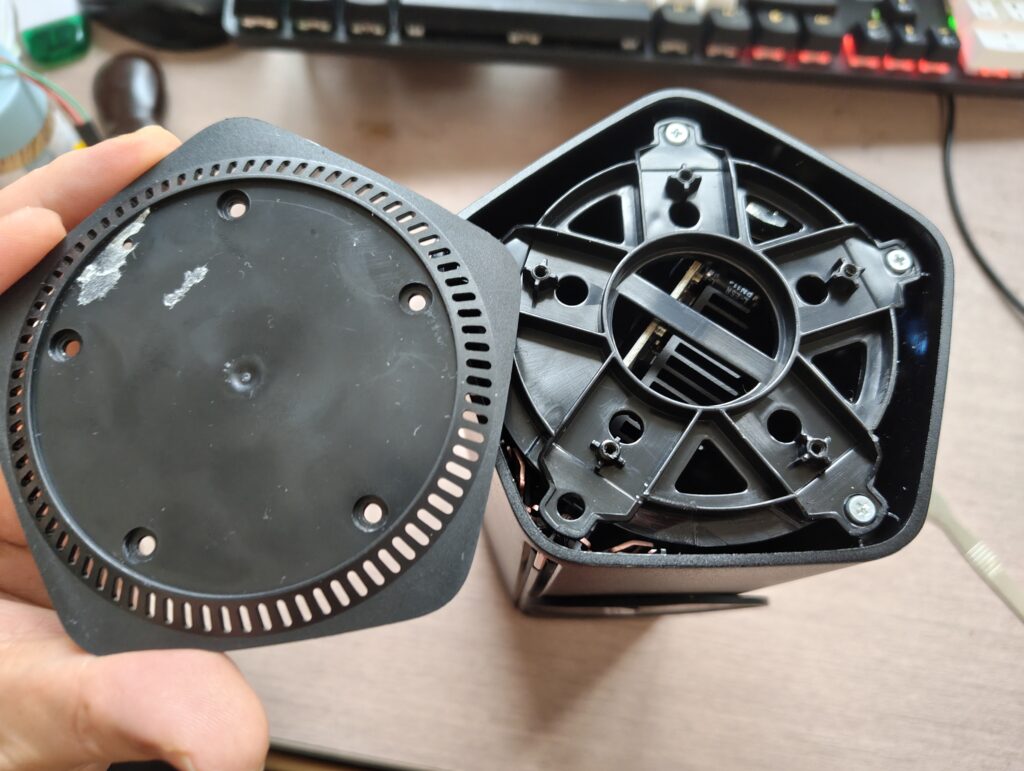

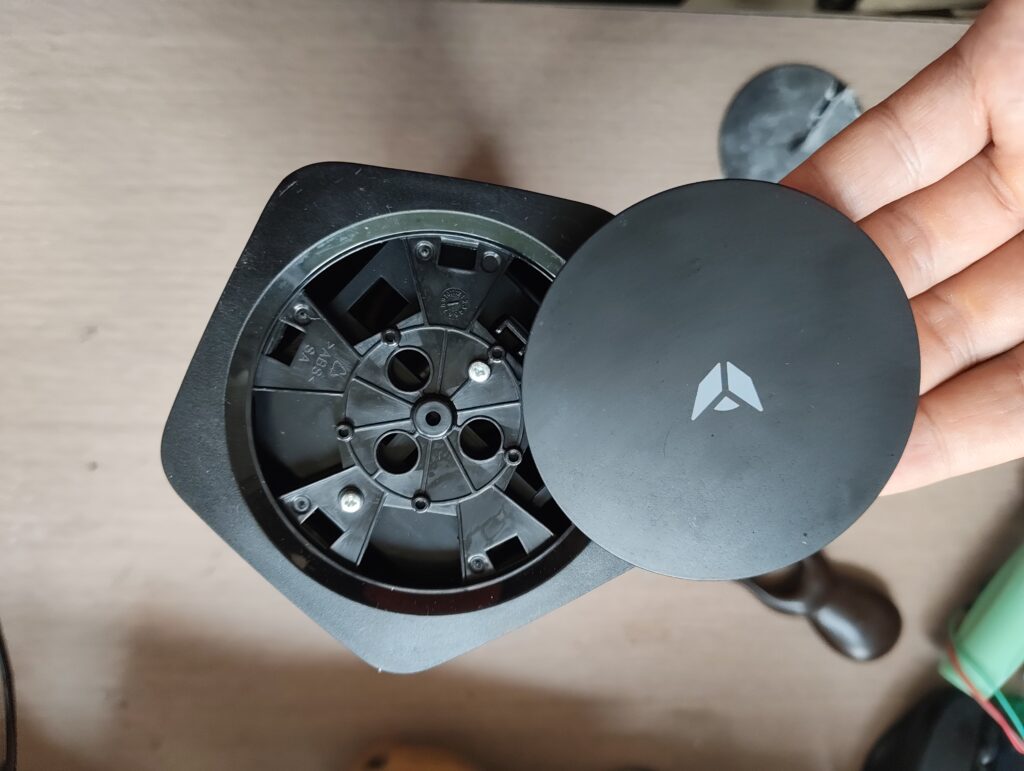

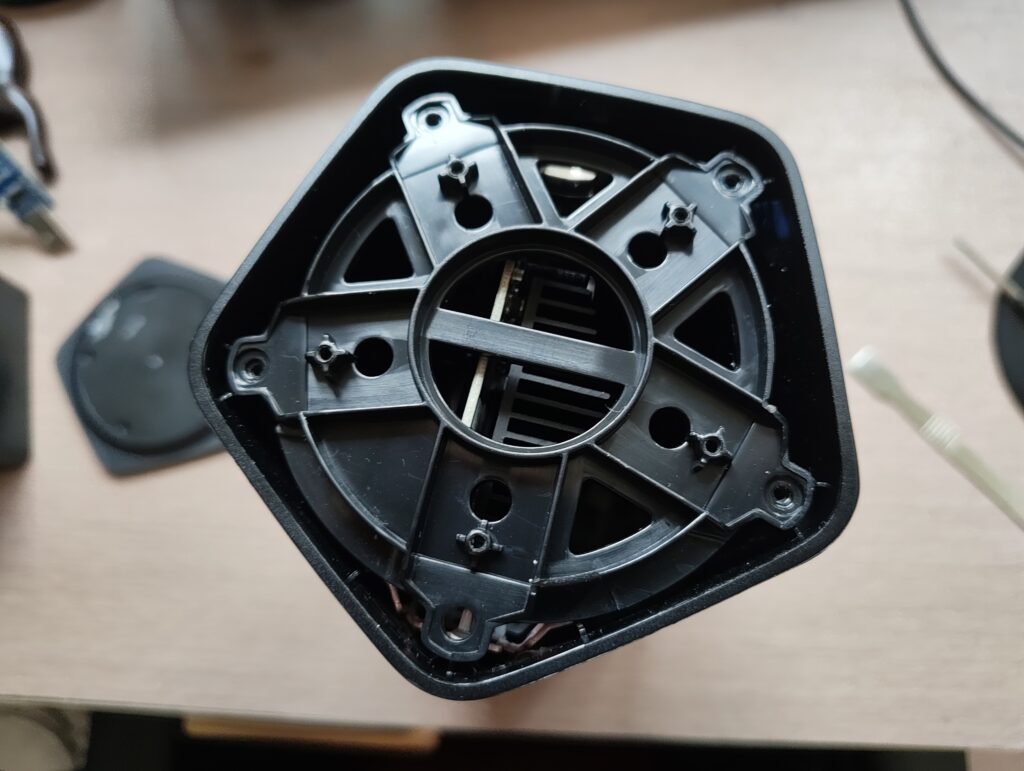

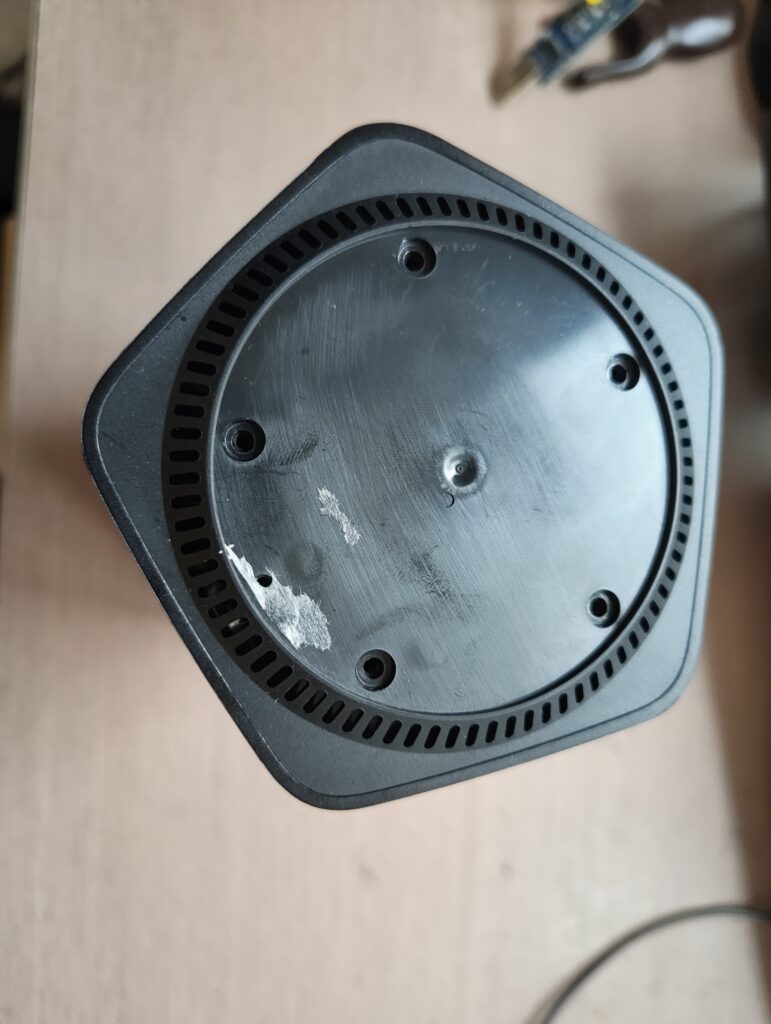

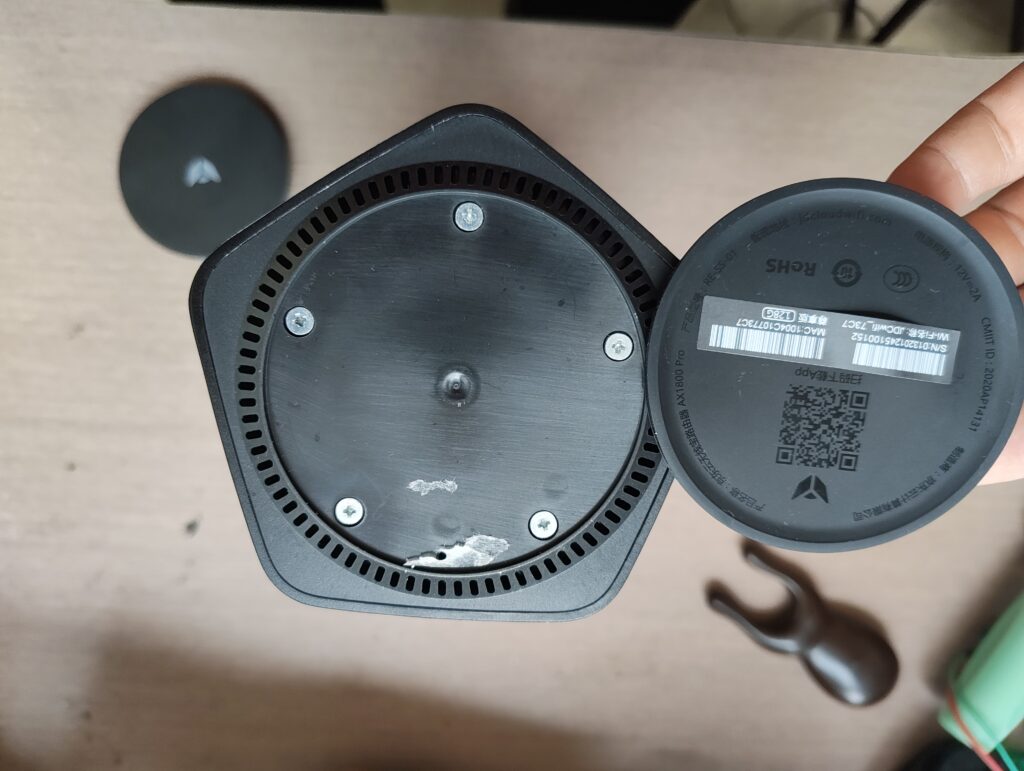

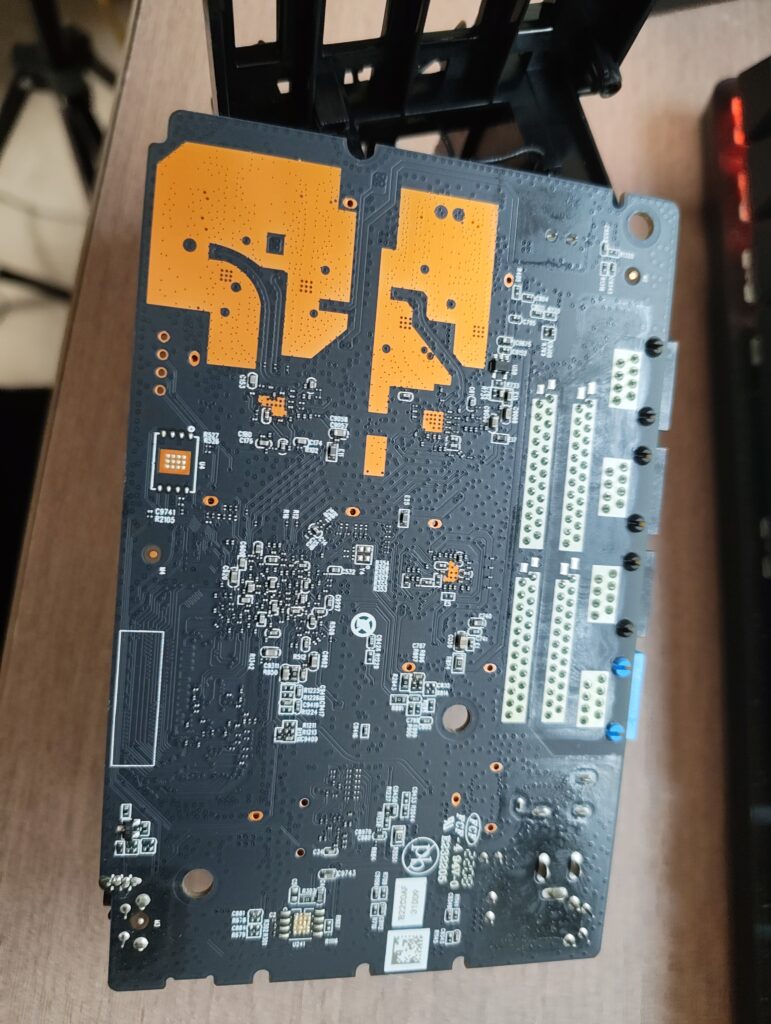

拆机教程撬开上盖，拆下两端螺丝就可以抽出来。很简单。

拆机刷机+救砖视频

免拆uboot刷机

1.连接路由器刷入uboot(拆机)

_             _          _
  __ _    ___  | |_   _ __   (_)   ___  (_)   ___    _ __         ___    ___    _ __ ___
 / _` |  / _ \ | __| | '_ \  | |  / __| | |  / _ \  | '_ \       / __|  / _ \  | '_ ` _ \
| (_| | |  __/ | |_  | |_) | | | | (__  | | | (_) | | | | |  _  | (__  | (_) | | | | | | |
 \__, |  \___|  \__| | .__/  |_|  \___| |_|  \___/  |_| |_| (_)  \___|  \___/  |_| |_| |_|_|
" |___/               |_|"
勇爱设计network出品
更多教程工具尽在getpicion.com
>>>京东云AX1800 Pro亚瑟


请输入COM端口号：4
>>>输入端口号为COM4
正在上传SBL1。。。
QSaharaServer.exe -p \\.\COM4 -s 13:mmcblk0p1_0SBL1.bin
Binary build date: Jun 25 2019 @ 03:16:15
QSAHARASERVER CALLED LIKE THIS: 'QSaharaServer.ex'Current working dir: C:\Users\yong\Desktop\ɪAX1800PROˢ̳̲\QSahara
Sahara mappings:
2: amss.mbn
6: apps.mbn
8: dsp1.mbn
10: dbl.mbn
11: osbl.mbn
12: dsp2.mbn
16: efs1.mbn
17: efs2.mbn
20: efs3.mbn
21: sbl1.mbn
22: sbl2.mbn
23: rpm.mbn
25: tz.mbn
28: dsp3.mbn
29: acdb.mbn
30: wdt.mbn
31: mba.mbn
13: mmcblk0p1_0SBL1.bin

18:37:28: Requested ID 13, file: "C:\Users\yong\Desktop\ɪAX1800PROˢ̳̲\QSahara\mmcblk0p1_0SBL1.bin"

18:37:28: 442184 bytes transferred in 0.046000 seconds (9.1674MBps)



18:37:28: File transferred successfully


NOTE: Target requested image 13 which is DeviceProgrammer. Forcing QUIT. This is by design, ** All is well ** SUCCESS!!


18:37:28: Sahara protocol completed

>>>看到最后输出Sahara protocol completed说明SBL1已上传成功
'�后，按任意键继续下一步' is not recognized as an internal or external command,
operable program or batch file.

Press any key to continue . . .
正在上传CDT DEVCFG QSEE RPM APPSBL。。。
QsaharaServer.exe -p \\.\COM4 -s 1:mmcblk0p10_0CDT_AX1800_Pro.bin -s 34:mmcblk0p6_0DEVCFG.bin -s 25:mmcblk0p4_0QSEE.bin -s 23:mmcblk0p8_0RPM.bin -s 5:mmcblk0p13_0APPSBL.bin
Binary build date: Jun 25 2019 @ 03:16:15
QSAHARASERVER CALLED LIKE THIS: 'QsaharaServer.ex'Current working dir: C:\Users\yong\Desktop\ɪAX1800PROˢ̳̲\QSahara
Sahara mappings:
2: amss.mbn
6: apps.mbn
8: dsp1.mbn
10: dbl.mbn
11: osbl.mbn
12: dsp2.mbn
16: efs1.mbn
17: efs2.mbn
20: efs3.mbn
21: sbl1.mbn
22: sbl2.mbn
23: mmcblk0p8_0RPM.bin
25: mmcblk0p4_0QSEE.bin
28: dsp3.mbn
29: acdb.mbn
30: wdt.mbn
31: mba.mbn
1: mmcblk0p10_0CDT_AX1800_Pro.bin
34: mmcblk0p6_0DEVCFG.bin
5: mmcblk0p13_0APPSBL.bin

18:37:35: Requested ID 1, file: "C:\Users\yong\Desktop\ɪAX1800PROˢ̳̲\QSahara\mmcblk0p10_0CDT_AX1800_Pro.bin"

18:37:35: 548 bytes transferred in 0.000000 seconds

18:37:35: File transferred successfully



18:37:35: Requested ID 34, file: "C:\Users\yong\Desktop\ɪAX1800PROˢ̳̲\QSahara\mmcblk0p6_0DEVCFG.bin"

18:37:35: 37114 bytes transferred in 0.000000 seconds

18:37:35: File transferred successfully



18:37:35: Requested ID 25, file: "C:\Users\yong\Desktop\ɪAX1800PROˢ̳̲\QSahara\mmcblk0p4_0QSEE.bin"

18:37:35: 1439076 bytes transferred in 0.078000 seconds (17.5950MBps)



18:37:35: File transferred successfully



18:37:35: Requested ID 23, file: "C:\Users\yong\Desktop\ɪAX1800PROˢ̳̲\QSahara\mmcblk0p8_0RPM.bin"

18:37:35: 102748 bytes transferred in 0.000000 seconds

18:37:35: File transferred successfully



18:37:35: Requested ID 5, file: "C:\Users\yong\Desktop\ɪAX1800PROˢ̳̲\QSahara\mmcblk0p13_0APPSBL.bin"

18:37:36: 577036 bytes transferred in 0.015000 seconds (36.6870MBps)



18:37:36: File transferred successfully



18:37:36: Sahara protocol completed

>>>看到最后输出Sahara protocol completed说明CDT DEVCFG QSEE RPM APPSBL已上传成功
'查是否能进入U-Boot，并及时断开USB线' is not recognized as an internal or external command,
operable program or batch file.

Press any key to continue . . .

2.刷入openwrt最新版

恢复原厂系统

拔掉路由器电源10秒。按住reset不松手。重新插电。直至灯光闪烁后常亮再松开。
打开本地连接。 设置本地ip地址为192.168.1.2等。浏览器打开192.168.1.1进入uboot模式。选择原厂固件后更新。
路由器进入刷机流程。过程灯光闪动。约2分钟。灯光常亮后。IP改成自动获取。浏览器输入192.168.68.1。

免拆教程

第一步解锁telnet

第二步刷入uboot

第三步刷入openwrt最新版

#openwrt系统分区128G-2G分区


BusyBox v1.38.0 (2026-05-13 02:19:59 UTC) built-in shell (ash)

 __           ____    Commercial         __
/\ \       __/\  _`\       Prohibition  /\ \__
\ \ \     /\_\ \ \L\ \  __  __  __  _ __\ \ ,_\
 \ \ \  __\/\ \ \  _ <'/\ \/\ \/\ \/\`'__\ \ \/
  \ \ \L\ \\ \ \ \ \L\ \ \ \_/ \_/ \ \ \/ \ \ \_
   \ \____/ \ \_\ \____/\ \___x___/'\ \_\  \ \__\
    \/___/   \/_/\/___/  \/__//__/   \/_/   \/__/
 -----------------------------------------------------
  LibWrt SNAPSHOT, r0-ca2555c
 -----------------------------------------------------

 === WARNING! =====================================
 There is no root password defined on this device!
 Use the "passwd" command to set up a new password
 in order to prevent unauthorized SSH logins.
 --------------------------------------------------

root@NERCH_Plus:~# blkid
/dev/mmcblk0p22: UUID="3beaa366-6a0e-40f8-9825-7c82918d034b" BLOCK_SIZE="1024" TYPE="ext4" PARTLABEL="rootfs_data" PARTUUID="c6e6b79c-e090-7c6e-d025-596f998c63e4"
/dev/mmcblk0p12: PARTLABEL="0:APPSBLENV" PARTUUID="2409040d-238d-c204-c410-cf3099e71cd4"
/dev/mmcblk0p9: PARTLABEL="0:RPM_1" PARTUUID="b3903885-aa99-35bf-7461-30deec262e1b"
/dev/mmcblk0p20: PARTLABEL="rootfs_1" PARTUUID="1ea5a6a4-7970-b9f3-6df2-b069ec58f038"
/dev/mmcblk0p10: PARTLABEL="0:CDT" PARTUUID="60efea05-9c41-97ef-407e-2c00fb84068b"
/dev/mmcblk0p7: PARTLABEL="0:DEVCFG_1" PARTUUID="0337d9d2-7ffc-38d8-5d45-a3354f3f7fe2"
/dev/mmcblk0p19: BLOCK_SIZE="262144" TYPE="squashfs" PARTLABEL="0:WIFIFW" PARTUUID="cadbe314-9340-e1e9-c984-bc2866ad969e"
/dev/mmcblk0p5: PARTLABEL="0:QSEE_1" PARTUUID="55f8e53b-4cd0-166a-4929-169f42b291f4"
/dev/mmcblk0p17: BLOCK_SIZE="262144" TYPE="squashfs" PARTLABEL="0:HLOS_1" PARTUUID="09d8ac8d-18c0-dac4-66c0-f85e33e49b27"
/dev/mmcblk0p25: PARTLABEL="log" PARTUUID="4faaab8c-074a-b8a2-ff8f-e420c3ac44f5"
/dev/mmcblk0p3: PARTLABEL="0:BOOTCONFIG1" PARTUUID="445afe42-9f81-f4b1-653f-e2d5f4b4a26e"
/dev/mmcblk0p15: PARTLABEL="0:ART" PARTUUID="e2689e7a-02df-17cb-e4f7-f5c64bd69084"
/dev/mmcblk0p23: PARTLABEL="0:ETHPHYFW" PARTUUID="672a56c9-e29c-fc75-ccbf-3461ce13f857"
/dev/mmcblk0p1: PARTLABEL="0:SBL1" PARTUUID="5f66e044-aef4-1141-3438-85fa0b581428"
/dev/mmcblk0p13: PARTLABEL="0:APPSBL" PARTUUID="64a5e5a8-acb0-1c50-f4d4-6f3f4ef316c5"
/dev/mmcblk0p21: PARTLABEL="0:WIFIFW_1" PARTUUID="6eacc1b4-9758-750a-d149-981fc4c66920"
/dev/mmcblk0p11: PARTLABEL="0:CDT_1" PARTUUID="3b2293f8-7b74-e59e-601b-1f5848a2d550"
/dev/mmcblk0p8: PARTLABEL="0:RPM" PARTUUID="904e0a43-e90e-fd63-6642-d97673b62af9"
/dev/mmcblk0p6: PARTLABEL="0:DEVCFG" PARTUUID="5a44b10b-65df-0a7b-ef30-069f194fb39c"
/dev/mmcblk0p18: BLOCK_SIZE="262144" TYPE="squashfs" PARTLABEL="rootfs" PARTUUID="487fa66f-4663-5be5-62f8-c4f63317f9b3"
/dev/mmcblk0p26: TYPE="swap" PARTLABEL="swap" PARTUUID="356f5adb-71da-6cd9-ef73-4f74d98145d3"
/dev/mmcblk0p4: PARTLABEL="0:QSEE" PARTUUID="76ee5765-6b8b-5c6a-07d0-65d8383609a9"
/dev/mmcblk0p16: PARTLABEL="0:HLOS" PARTUUID="0480961e-3017-14b3-b773-e9baadf79a18"
/dev/mmcblk0p24: UUID="fabb2e1e-8f9e-4963-a3dc-892413aa9b15" BLOCK_SIZE="1024" TYPE="ext4" PARTLABEL="plugin" PARTUUID="11c99c8f-b730-9d07-a87e-ddd25303b8d7"
/dev/mmcblk0p2: PARTLABEL="0:BOOTCONFIG" PARTUUID="1576360b-5c36-b397-a9d8-fc8d5ff97b50"
/dev/mmcblk0p14: PARTLABEL="0:APPSBL_1" PARTUUID="8295d369-7f25-ff07-ccaa-baaf57e1a000"
/dev/loop0: LABEL="rootfs_data" UUID="2469d13d-0d8b-4da2-8c8a-b1f5b4555e6a" BLOCK_SIZE="4096" TYPE="f2fs"
root@NERCH_Plus:~#
