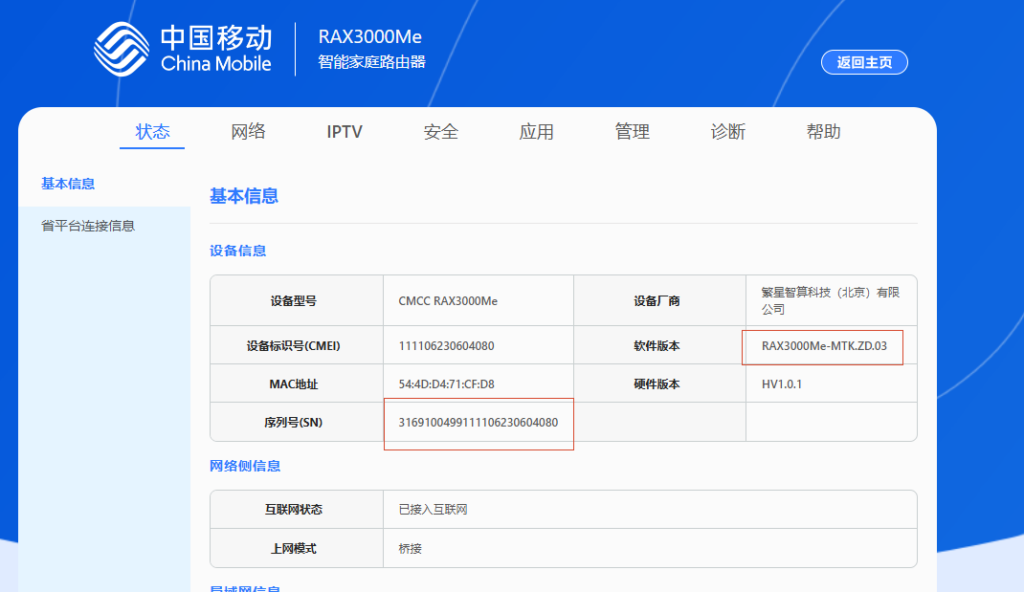

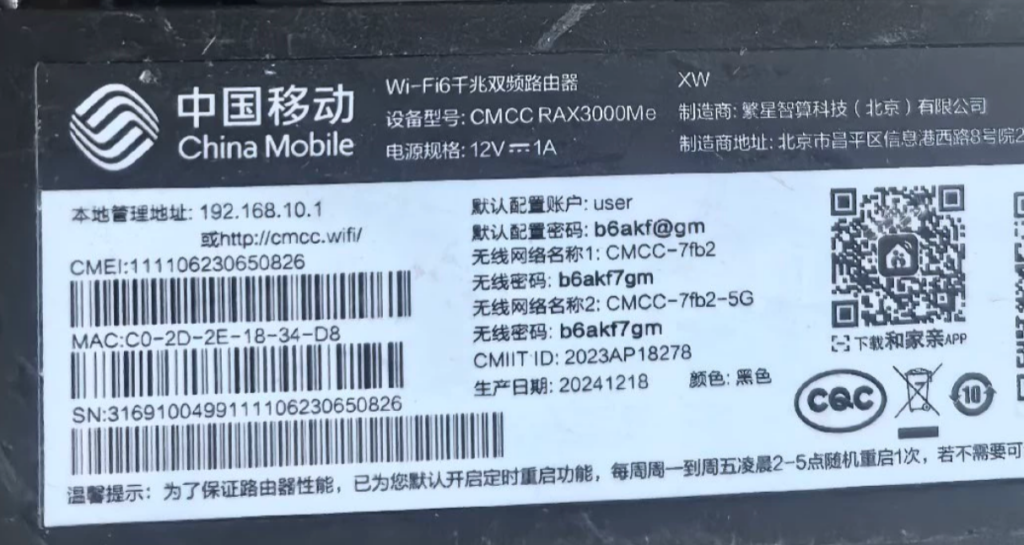

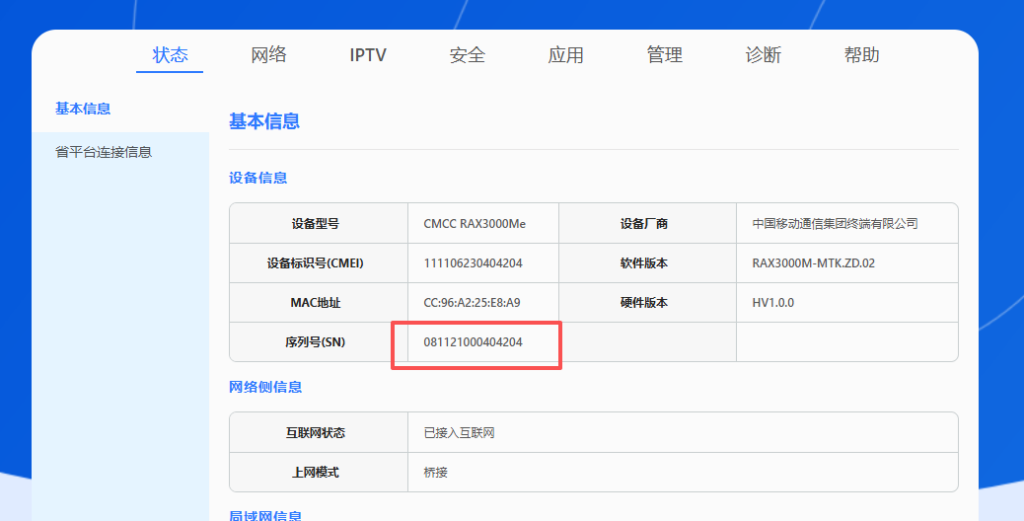

如果是SN=5D11210006XXXXX 在线解密配置文件可以免拆解锁telnet刷机。点击在线解锁进入界面

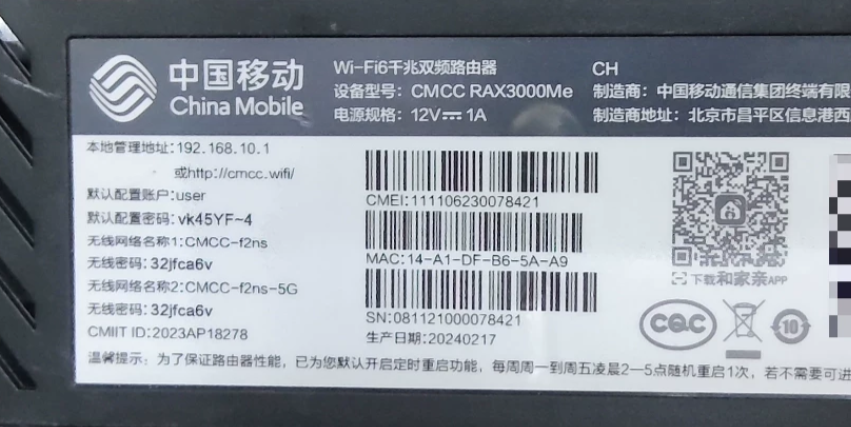

如果是下25位数SN码只能TTL拆机刷机了。
![图片[2]-中国移动CMCC RAX3000Me路由器刷机教程openwrt+恢复原厂+救砖TTL-勇爱设计Netwrok](https://www.getpicion.com/wp-content/uploads/2026/07/image-34-1024x592.png)

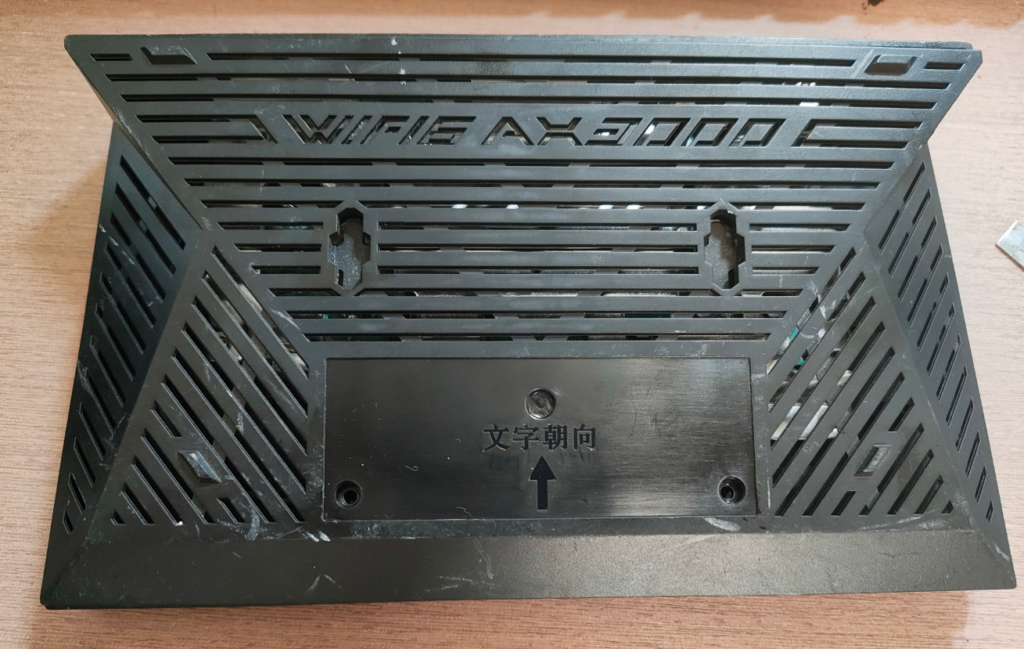

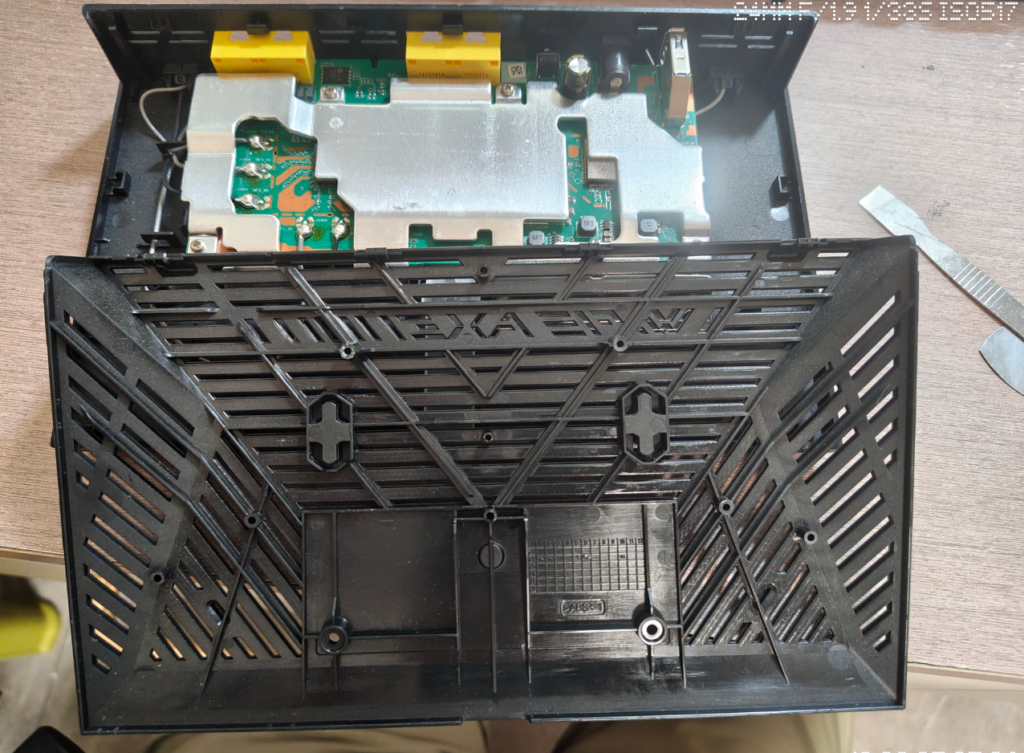

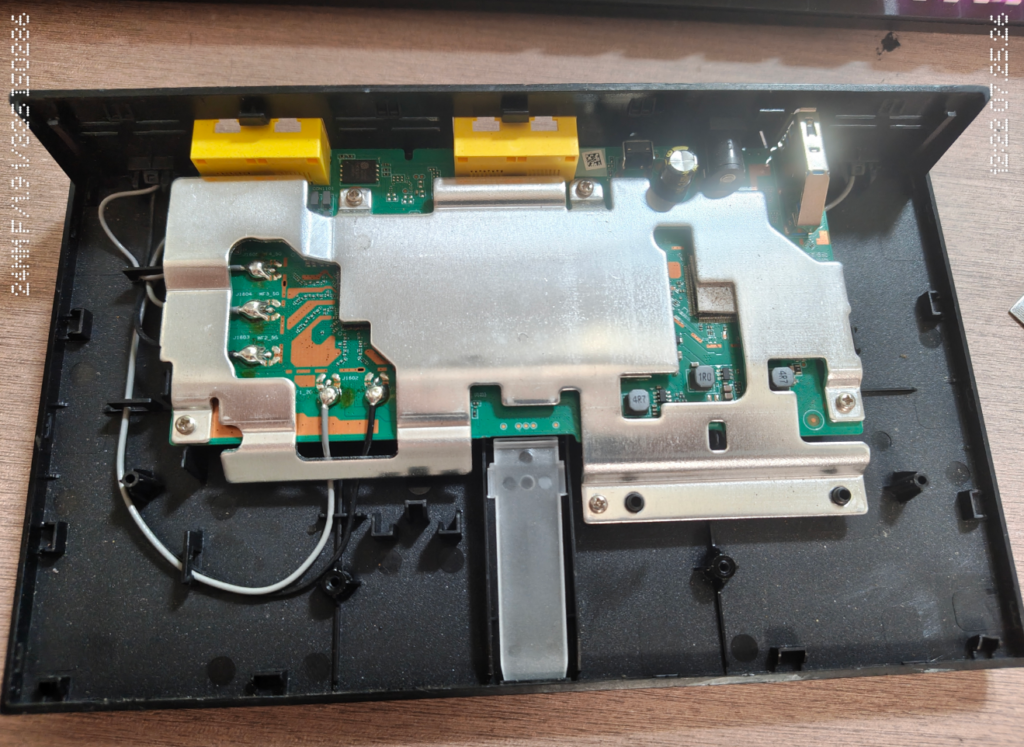

提供两款工具包，免拆和拆机TTL工具包。这款路由器SN码不同、内存版本有不同，查看内存型号DDR3/DDR4，需要TTL串口才行。TTL拆机刷机支持所有版本刷机或者救砖。
| 项目 | RAX3000M（普通版 / 算力版） | RAX3000Me（简化版） |
|---|---|---|
| 定位 | 带 USB | 有些带usb有些不带 |
| Wi‑Fi 标准 | AX3000 Wi‑Fi 6 双频 | AX3000 Wi‑Fi 6 双频 |
| 无线速率 | 2.4G：574Mbps；5G：2402Mbps（合计 2976Mbps） | 同上 |
| CPU | MT7981B 双核 A53 1.3GHz（Filogic 820） | MT7981B 双核 A53 1.3GHz（Filogic 820） |
| 内存 RAM | 512MB（DDR4） | 512MB DDR3/DDR4 |
| 闪存 Flash | 普通版：128MB SPI‑NAND；算力版：64GB eMMC | 128MB SPI‑NAND/少部分EMMC |
| 无线 MIMO | 2.4G 2T2R；5G 2T2R；集成 5 路 FEM | 同左 |
| 天线 | 4× 外置不可拆，约 6dBi | 4× 外置不可拆 |
| 网口 | 1× 千兆 WAN + 4× 千兆 LAN（共 5 口） | 1× 千兆 WAN + 3× 千兆 LAN（共 4 口） |
| USB 接口 | USB3.0×1（全系标配） | 有 USB3.0 / 无 USB 两种 |
| Mesh 组网 | 支持 | 支持 |
| 系统 / 刷机 | 原生 + 可刷 OpenWrt / 第三方固件 | 原生 + 可刷 OpenWrt / 第三方固件 |
| 带机量 | 约 200–300 台 | 约 200 台 |
| 核心差异 | 4口、USB3.0、算力版 64GB 可跑 PCDN | 4口、部分无 USB、内存多为DDR3 |
![图片[3]-中国移动CMCC RAX3000Me路由器刷机教程openwrt+恢复原厂+救砖TTL-勇爱设计Netwrok](https://www.getpicion.com/wp-content/uploads/2026/07/image-33.png)
![图片[4]-中国移动CMCC RAX3000Me路由器刷机教程openwrt+恢复原厂+救砖TTL-勇爱设计Netwrok](https://www.getpicion.com/wp-content/uploads/2026/07/image-36.png)
![图片[5]-中国移动CMCC RAX3000Me路由器刷机教程openwrt+恢复原厂+救砖TTL-勇爱设计Netwrok](https://www.getpicion.com/wp-content/uploads/2026/07/image-37-1024x545.png)
注意：新版本的路由器，TTL接口已经没有孔了。使用针夹一样可以连接。路由器主板上可能有防水涂层，连接时候螺丝刀轻轻刮除触点涂层，注意不要破坏其他器件。
#变砖案例类型
F0: 102B 0000
FA: 1040 0000
FA: 1040 0000 [0200]
F9: 3903 0041
F3: 1001 0000 [0200]
F3: 1001 0000
F6: 102C 0000
F5: 480A 0031
00: 1005 0000
FA: 1040 0000
FA: 1040 0000 [0200]
F9: 3903 0041
F3: 1001 0000 [0200]
F3: 1001 0000
F6: 102C 0000
01: 102A 0001
02: 1005 0000
BP: 2000 00C0 [0001]
EC: 0000 0000 [1000]
T0: 0000 00ED [010F]
System halt!
#原厂系统开机ttl记录，DDR3内存
F0: 102B 0000
FA: 1040 0000
FA: 1040 0000 [0200]
F9: 0000 0000
V0: 0000 0000 [0001]
00: 0000 0000
BP: 2400 0041 [0000]
G0: 1190 0000
EC: 0000 0000 [1000]
T0: 0000 024F [010F]
Jump to BL
NOTICE: BL2: v2.7(release):91da831ad-dirty
NOTICE: BL2: Built : 20:53:04, Sep 19 2024
NOTICE: WDT: disabled
NOTICE: EMI: Using DDR3 settings
NOTICE: EMI: Detected DRAM size: 512MB
NOTICE: EMI: complex R/W mem test passed
NOTICE: CPU: MT7981 (1300MHz)
NOTICE: PP COPY 0 CRC read: 0x534a, compute: 0x4a53
NOTICE: FUDAN Micro crc != crc_compute,Need change CRC Byte[254][255]
NOTICE: SPI_NAND parses attributes from parameter page.
NOTICE: SPI_NAND Detected ID 0xa1
NOTICE: Page size 2048, Block size 131072, size 134217728
NOTICE: Initializing NMBM ...
NOTICE: Signature found at block 1023 [0x07fe0000]
NOTICE: First info table with writecount 0 found in block 960
NOTICE: Second info table with writecount 0 found in block 963
NOTICE: NMBM has been successfully attached in read-only mode
NOTICE: BL2: Booting BL31
NOTICE: BL31: v2.7(release):91da831ad-dirty
NOTICE: BL31: Built : 20:53:09, Sep 19 2024
U-Boot 2022.10-rc2 (Sep 19 2024 - 20:51:58 +0800), Build: jenkins-RAX3000M-822
CPU: MediaTek MT7981
Model: mt7981-rfb
DRAM: 512 MiB
Core: 39 devices, 18 uclasses, devicetree: separate
Initializing NMBM ...
spi-nand: spi_nand spi_nand@0: FUDAN Micron SPI NAND was found.
spi-nand: spi_nand spi_nand@0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 64
test fudan_spinand_detect id.data:5faa69b0 id[1]:e4
Could not find a valid device for nmbm0
Signature found at block 1023 [0x07fe0000]
First info table with writecount 0 found in block 960
Second info table with writecount 0 found in block 963
NMBM has been successfully attached
Loading Environment from UBI... ubi0: attaching mtd6
ubi0: scanning is finished
ubi0: attached mtd6 (name "ubi", size 61 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 488, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 6, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 82/22, WL threshold: 4096, image sequence number: 173680635
ubi0: available PEBs: 101, total reserved PEBs: 387, PEBs reserved for bad PEB handling: 19
Read 524288 bytes from volume env to 000000005f77e180
OK
In: serial@11002000
Out: serial@11002000
Err: serial@11002000
Net: eth0: ethernet@15100000
*** MCUPG check failure: -64 ***

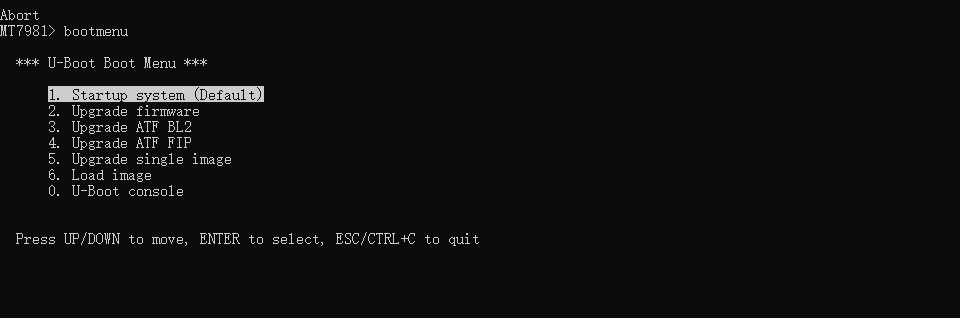

*** U-Boot Boot Menu ***
1. Startup system (Default)
0. U-Boot console
Press UP/DOWN to move, ENTER to select, ESC/CTRL+C to quit
UBI partition 'ubi' already selected
Trying to boot from image slot 0
Read 64 bytes from volume kernel to 0000000046000000
Read 3234847 bytes from volume kernel to 0000000046000000
## Checking hash(es) for FIT Image at 46000000 ...
Hash(es) for Image 0 (kernel-1): crc32+ sha1+
Hash(es) for Image 1 (fdt-1): crc32+ sha1+
Hash(es) for Image 2 (fdt-emmc): crc32+ sha1+
Read 48 bytes from volume rootfs to 0000000046315c20
Read 15165520 bytes from volume rootfs to 0000000046315c20
Hash(es) for rootfs: crc32+ sha1+
Firmware integrity verification passed
## Loading kernel from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-5.4.188
Type: Kernel Image
Compression: lzma compressed
Data Start: 0x460000e8
Data Size: 3197420 Bytes = 3 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x48080000
Entry Point: 0x48080000
Hash algo: crc32
Hash value: db15c944
Hash algo: sha1
Hash value: 6474cef54066076c1b2fc5e0915003ae59a7a528
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'fdt-1' fdt subimage
Description: ARM64 OpenWrt mt7981-spim-nand-rfb device tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x4630cc18
Data Size: 18640 Bytes = 18.2 KiB
Architecture: AArch64
Hash algo: crc32
Hash value: db774877
Hash algo: sha1
Hash value: 762fd057b44e930ddc6bfedf482b5dc64ae32398
Verifying Hash Integrity ... crc32+ sha1+ OK
Booting using the fdt blob at 0x4630cc18
Uncompressing Kernel Image
Loading Device Tree to 000000005f7ef000, end 000000005f7f68cf ... OK
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 5.4.188 (cmdc@opdev) (gcc version 8.4.0 (OpenWrt GCC 8.4.0 r0-91da831ad)) #0 SMP Thu Sep 19 12:16:49 2024
[ 0.000000] Machine model: MediaTek MT7981 RFB
[ 0.000000] earlycon: uart8250 at MMIO32 0x0000000011002000 (options '')
[ 0.000000] printk: bootconsole [uart8250] enabled
[ 0.000000] On node 0 totalpages: 130128
[ 0.000000] DMA32 zone: 2048 pages used for memmap
[ 0.000000] DMA32 zone: 0 pages reserved
[ 0.000000] DMA32 zone: 130128 pages, LIFO batch:31
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.1 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.0
[ 0.000000] percpu: Embedded 20 pages/cpu s43800 r8192 d29928 u81920
[ 0.000000] pcpu-alloc: s43800 r8192 d29928 u81920 alloc=20*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: GIC system register CPU interface
[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 128080
[ 0.000000] Kernel command line: console=ttyS0,115200n1 loglevel=8 earlycon=uart8250,mmio32,0x11002000 ubi.rootfs_volume=rootfs boot_param.boot_kernel_part=kernel boot_param.boot_rootfs_part=rootfs boot_param.upgrade_kernel_part=kernel2 boot_param.upgrade_rootfs_part=rootfs2 power=high boot_param.env_part=env boot_param.rootfs_data_part=rootfs_data boot_param.boot_image_slot=0 boot_param.upgrade_image_slot=1 boot_param.dual_boot
[ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 492396K/520512K available (6590K kernel code, 414K rwdata, 1856K rodata, 448K init, 281K bss, 28116K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] rcu: CONFIG_RCU_FANOUT set to non-default value of 32.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[ 0.000000] GICv3: 640 SPIs implemented
[ 0.000000] GICv3: 0 Extended SPIs implemented
[ 0.000000] GICv3: Distributor has no Range Selector support
[ 0.000000] GICv3: 16 PPIs implemented
[ 0.000000] GICv3: no VLPI support, no direct LPI support
[ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000
[ 0.000000] random: get_random_bytes called from start_kernel+0x2d4/0x420 with crng_init=0
[ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns
[ 0.000003] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
[ 0.008182] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=52000)
[ 0.018503] pid_max: default: 32768 minimum: 301
[ 0.023229] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.030580] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.039266] ASID allocator initialised with 65536 entries
[ 0.044768] rcu: Hierarchical SRCU implementation.
[ 0.049888] smp: Bringing up secondary CPUs ...
[ 0.054747] Detected VIPT I-cache on CPU1
[ 0.054769] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000
[ 0.054792] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.054857] smp: Brought up 1 node, 2 CPUs
[ 0.076474] SMP: Total of 2 processors activated.
[ 0.081200] CPU features: detected: 32-bit EL0 Support
[ 0.086362] CPU features: detected: CRC32 instructions
[ 0.091636] CPU: All CPU(s) started at EL2
[ 0.095758] alternatives: patching kernel code
[ 0.102721] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.112536] futex hash table entries: 512 (order: 3, 32768 bytes, linear)
[ 0.119442] pinctrl core: initialized pinctrl subsystem
[ 0.125253] NET: Registered protocol family 16
[ 0.129972] DMA: preallocated 256 KiB pool for atomic allocations
[ 0.151188] SCSI subsystem initialized
[ 0.155145] libata version 3.00 loaded.
[ 0.160011] Bluetooth: Core ver 2.22
[ 0.163673] NET: Registered protocol family 31
[ 0.168148] Bluetooth: HCI device and connection manager initialized
[ 0.174540] Bluetooth: HCI socket layer initialized
[ 0.179442] Bluetooth: L2CAP socket layer initialized
[ 0.184525] Bluetooth: SCO socket layer initialized
[ 0.189678] rbus 18000000.wbsys: PCI host bridge to bus 0000:00
[ 0.195637] pci_bus 0000:00: root bus resource [mem 0x18000000-0x18ffffff]
[ 0.202549] pci_bus 0000:00: root bus resource [bus 00-ff]
[ 0.208061] pci_bus 0000:00: scanning bus
[ 0.212102] pci 0000:00:00.0: [14c3:7981] type 00 class 0x000280
[ 0.218149] pci 0000:00:00.0: reg 0x10: [mem 0x18000000-0x1800000f 64bit]
[ 0.224972] pci 0000:00:00.0: reg 0x18: [mem 0x00000000-0x0000000f]
[ 0.231271] pci 0000:00:00.0: reg 0x1c: [mem 0x00000000-0x0000000f]
[ 0.237571] pci 0000:00:00.0: reg 0x20: [mem 0x00000000-0x0000000f]
[ 0.243870] pci 0000:00:00.0: reg 0x24: [mem 0x00000000-0x0000000f]
[ 0.251033] pci_bus 0000:00: fixups for bus
[ 0.255246] pci_bus 0000:00: bus scan returning with max=00
[ 0.261630] clocksource: Switched to clocksource arch_sys_counter
[ 0.268459] thermal_sys: Registered thermal governor 'fair_share'
[ 0.268462] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.274609] thermal_sys: Registered thermal governor 'step_wise'
[ 0.280647] thermal_sys: Registered thermal governor 'user_space'
[ 0.286682] thermal_sys: Registered thermal governor 'power_allocator'
[ 0.293057] NET: Registered protocol family 2
[ 0.304088] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.311687] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.320097] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 0.327906] TCP bind hash table entries: 4096 (order: 4, 65536 bytes, linear)
[ 0.335124] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.341573] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.348146] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.355233] NET: Registered protocol family 1
[ 0.359635] PCI: CLS 0 bytes, default 64
[ 0.364451] workingset: timestamp_bits=46 max_order=17 bucket_order=0
[ 0.373912] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.379795] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.402468] phy phy-usb-phy@11e10000.1: type_sw - reg 0x218, index 0
[ 0.418163] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled
[ 0.425281] printk: console [ttyS0] disabled
[ 0.449688] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 12, base_baud = 2500000) is a ST16650V2
[ 0.458901] printk: console [ttyS0] enabled
[ 0.458901] printk: console [ttyS0] enabled
[ 0.467262] printk: bootconsole [uart8250] disabled
[ 0.467262] printk: bootconsole [uart8250] disabled
[ 0.477598] cacheinfo: Unable to detect cache hierarchy for CPU 0
[ 0.486091] loop: module loaded
[ 0.489355] mediatek,mt2701-ice_debug ice_debug: get dbg_sel clock fail: -2
[ 0.496325] mediatek,mt2701-ice_debug: probe of ice_debug failed with error -2
[ 0.504446] mt7981-pinctrl 11d00000.pinctrl: pin_config_set op failed for pin 19
[ 0.511844] mtk-spi 1100a000.spi: Error applying setting, reverse things back
[ 0.519595] spi-nand spi0.0: FUDAN Micron SPI NAND was found.
[ 0.525345] spi-nand spi0.0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 64
[ 0.533466] test fudan_spinand_detect id.data:1e1bcd58 id[1]:e4
[ 0.541486] tun: Universal TUN/TAP device driver, 1.6
[ 0.546961] [mtk_hw_init] reset_lock:0, force:0
[ 0.551518] [mtk_hw_init] execute fe cold reset
[ 0.567830] mtk_soc_eth 15100000.ethernet: generated random MAC address 8e:90:50:09:95:16
[ 0.578100] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc011780000, irq 75
[ 0.587200] mtk_soc_eth 15100000.ethernet: generated random MAC address 02:38:09:b7:66:43
[ 0.597420] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc011780000, irq 75
[ 0.606481] (unnamed net_device) (dummy): netif_napi_add() called with weight 256
[ 0.614272] i2c /dev entries driver
[ 0.618698] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0)
[ 0.626700] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: dm-devel@redhat.com
[ 0.635282] Bluetooth: HCI UART driver ver 2.3
[ 0.639741] Bluetooth: HCI UART protocol H4 registered
[ 0.644870] Bluetooth: HCI UART protocol BCSP registered
[ 0.650261] Bluetooth: HCI UART protocol Broadcom registered
[ 0.655930] Bluetooth: HCI UART protocol QCA registered
[ 0.663310] NET: Registered protocol family 10
[ 0.668460] Segment Routing with IPv6
[ 0.672206] NET: Registered protocol family 17
[ 0.676735] Bridge firewalling registered
[ 0.680866] 8021q: 802.1Q VLAN Support v1.8
[ 0.694521] nmbm nmbm_spim_nand: Signature found at block 1023 [0x07fe0000]
[ 0.702386] nmbm nmbm_spim_nand: First info table with writecount 0 found in block 960
[ 0.713018] nmbm nmbm_spim_nand: Second info table with writecount 0 found in block 963
[ 0.721019] nmbm nmbm_spim_nand: NMBM has been successfully attached
[ 0.727644] 8 fixed-partitions partitions found on MTD device nmbm_spim_nand
[ 0.734688] Creating 8 MTD partitions on "nmbm_spim_nand":
[ 0.740170] 0x000000000000-0x000000100000 : "BL2"
[ 0.745419] 0x000000100000-0x000000180000 : "u-boot-env"
[ 0.751218] 0x000000180000-0x000000380000 : "Factory"
[ 0.756757] 0x000000380000-0x000000580000 : "FIP"
[ 0.761962] 0x000000580000-0x000004280000 : "ubi"
[ 0.767273] 0x000004280000-0x000006780000 : "plugins"
[ 0.772874] 0x000006780000-0x000006f80000 : "fwk"
[ 0.778093] 0x000006f80000-0x000007780000 : "fwk2"
[ 0.993964] mt7530 mdio-bus:1f lan3 (uninitialized): PHY [dsa-0.0:00] driver [Generic PHY]
[ 1.003541] mt7530 mdio-bus:1f lan2 (uninitialized): PHY [dsa-0.0:01] driver [Generic PHY]
[ 1.013104] mt7530 mdio-bus:1f lan1 (uninitialized): PHY [dsa-0.0:02] driver [Generic PHY]
[ 1.022011] mt7530 mdio-bus:1f: configuring for fixed/2500base-x link mode
[ 1.029166] DSA: tree 0 setup
[ 1.029416] mt7530 mdio-bus:1f: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 1.032127] mt7530-nl: genl_register_family_with_ops
[ 1.032565] UBI: auto-attach mtd5
[ 1.047724] ubi0: attaching mtd5
[ 1.052491] random: fast init done
[ 1.258770] ubi0: scanning is finished
[ 1.267964] ubi0: attached mtd5 (name "ubi", size 61 MiB)
[ 1.273373] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 1.280239] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 1.287015] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 1.293964] ubi0: good PEBs: 488, bad PEBs: 0, corrupted PEBs: 0
[ 1.299959] ubi0: user volume: 6, internal volumes: 1, max. volumes count: 128
[ 1.307169] ubi0: max/mean erase counter: 82/22, WL threshold: 4096, image sequence number: 173680635
[ 1.316373] ubi0: available PEBs: 101, total reserved PEBs: 387, PEBs reserved for bad PEB handling: 19
[ 1.325758] ubi0: background thread "ubi_bgt0d" started, PID 777
[ 1.326441] block ubiblock0_1: created from ubi0:1(rootfs)
[ 1.337254] ubiblock: device ubiblock0_1 (rootfs) set to be root filesystem
[ 1.344210] hctosys: unable to open rtc device (rtc0)
[ 1.352546] VFS: Mounted root (squashfs filesystem) readonly on device 253:0.
[ 1.359903] Freeing unused kernel memory: 448K
[ 1.377670] Run /sbin/init as init process
[ 1.589501] init: Console is alive
[ 1.593059] init: - watchdog -
[ 1.855387] crng init done
[ 2.386706] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 2.420919] conninfra@(mtk_conninfra_drv_init:644) Before platform_driver_register
[ 2.428612] Get Index(0-TOP_MISC_BASE) phy_addr(0x11d10000) vir_addr=(0xffffffc010a55000) size=(0x1000)
[ 2.437999] Get Index(1-TOPRGU_BASE) phy_addr(0x1001c000) vir_addr=(0xffffffc010a5d000) size=(0x1000)
[ 2.447206] Get Index(2-GPIO_BASE) phy_addr(0x11d00000) vir_addr=(0xffffffc010a65000) size=(0x1000)
[ 2.456239] Get Index(3-IOCFG_TR_BASE) phy_addr(0x11f00000) vir_addr=(0xffffffc010a6d000) size=(0x1000)
[ 2.465627] Get Index(4-IOCFG_TL_BASE) phy_addr(0x11f10000) vir_addr=(0xffffffc010a75000) size=(0x1000)
[ 2.475007] Get Index(5-INFRACFG_AO_BASE) phy_addr(0x10003000) vir_addr=(0xffffffc010a7d000) size=(0x1000)
[ 2.484647] Get Index(6-CONN_INFRA_CFG_BASE) phy_addr(0x18001000) vir_addr=(0xffffffc010a85000) size=(0x1000)
[ 2.494548] Get Index(7-CONN_INFRA_SYSRAM_BASE) phy_addr(0x18050000) vir_addr=(0xffffffc010a8d000) size=(0x1000)
[ 2.504708] Get Index(8-CONN_INFRA_CLKGEN_ON_TOP_BASE) phy_addr(0x18009000) vir_addr=(0xffffffc010a95000) size=(0x1000)
[ 2.515475] Get Index(9-CONN_HOST_CSR_TOP_BASE) phy_addr(0x18060000) vir_addr=(0xffffffc010a97000) size=(0x1000)
[ 2.525636] Get Index(10-CONN_INFRA_BUS_CR_BASE) phy_addr(0x1800e000) vir_addr=(0xffffffc010a99000) size=(0x1000)
[ 2.535883] Get Index(11-CONN_INFRA_RGU_BASE) phy_addr(0x18000000) vir_addr=(0xffffffc010a9b000) size=(0x1000)
[ 2.545870] Get Index(12-CONN_WT_SLP_CTL_REG_BASE) phy_addr(0x18005000) vir_addr=(0xffffffc010a9d000) size=(0x1000)
[ 2.556290] Get Index(13-INST2_CONN_WT_SLP_CTL_REG_BASE) phy_addr(0x18085000) vir_addr=(0xffffffc010a9f000) size=(0x1000)
[ 2.567234] Get Index(14-CONN_RF_SPI_MST_REG_BASE) phy_addr(0x18004000) vir_addr=(0xffffffc010aa1000) size=(0x1000)
[ 2.577655] Get Index(15-INST2_CONN_RF_SPI_MST_REG_BASE) phy_addr(0x18084000) vir_addr=(0xffffffc010aa3000) size=(0x1000)
[ 2.588597] Get Index(16-CONN_SEMAPHORE_BASE) phy_addr(0x18070000) vir_addr=(0xffffffc010b30000) size=(0x10000)
[ 2.598671] Get Index(17-CONN_AFE_CTL_BASE) phy_addr(0x18003000) vir_addr=(0xffffffc010aa5000) size=(0x1000)
[ 2.608484] Get Index(18-CONN_AFE_CTL_2ND_BASE) phy_addr(0x18083000) vir_addr=(0xffffffc010aa7000) size=(0x1000)
[ 2.618645] Get Index(19-WF_TOP_SLPPROT_ON_BASE) phy_addr(0x184c0000) vir_addr=(0xffffffc010b50000) size=(0x10000)
[ 2.628980] Get Index(20-WF_TOP_CFG_BASE) phy_addr(0x184b0000) vir_addr=(0xffffffc010aa9000) size=(0x1000)
[ 2.638619] Get Index(21-WF_MCU_CONFIG_LS_BASE) phy_addr(0x184f0000) vir_addr=(0xffffffc010aab000) size=(0x1000)
[ 2.648779] Get Index(22-WF_MCU_BUS_CR_BASE) phy_addr(0x18400000) vir_addr=(0xffffffc010aad000) size=(0x1000)
[ 2.658679] Get Index(23-WF_MCUSYS_INFRA_BUS_FULL_U_DEBUG_CTRL_AO_BASE) phy_addr(0x18500000) vir_addr=(0xffffffc010af6000) size=(0x1000)
[ 2.670923] Get Index(24-WF_TOP_CFG_ON_BASE) phy_addr(0x184c0000) vir_addr=(0xffffffc010b70000) size=(0x10000)
[ 2.680909] conninfra@(consys_plt_hw_init:162) adie_cfg_type = 1, one_adie_dbdc = 1
[ 2.688558] [emi_mng_init] gConEmiPhyBase = [0x47c80000] size = [0x100000] fw size = [0x100000] ops=[00000000e734df45]
[ 2.699333] conninfra@(mtk_conninfra_drv_init:650) After platform_driver_register
[ 2.707199] ConnInfra Dev: init (0)
[ 2.712131] conninfra@(_consys_polling_chipid_int:306) Read CONNSYS HW IP version successfully! (0x02090000)
[ 2.721984] conninfra@(connsys_d_die_cfg:365) D-die efuse: 0x00000000
[ 2.729445] conninfra@(_connsys_a_die_cfg_7976:919) adie_idx[0], A-die CHIP ID = 0x7976, HW Version = 0x8b00
[ 2.740264] conninfra@(consys_spi_write_nolock:501) addr=0x0a00, val=0xffffffff
[ 2.748567] conninfra@(consys_spi_write_nolock:501) addr=0x04ac, val=0x0000001c
[ 2.756869] conninfra@(consys_spi_write_nolock:501) addr=0x0144, val=0x00000002
[ 2.766179] conninfra@(consys_spi_write_nolock:501) addr=0x0148, val=0x00000000
[ 2.775489] conninfra@(consys_spi_write_nolock:501) addr=0x0148, val=0x43a60000
[ 2.788828] conninfra@(connsys_a_die_efuse_read_nolock:737) efuse = [0x00000001, 0x00c40000, 0x008600bd, 0x00000000]
[ 2.800339] conninfra@(consys_spi_write_nolock:501) addr=0x0144, val=0x00000002
[ 2.809649] conninfra@(consys_spi_write_nolock:501) addr=0x0148, val=0x23a6003a
[ 2.818958] conninfra@(consys_spi_write_nolock:501) addr=0x0148, val=0x63a7003a
[ 2.832298] conninfra@(connsys_a_die_efuse_read_nolock:737) efuse = [0x00000001, 0x00c40000, 0x008600bd, 0x00000000]
[ 2.843810] conninfra@(consys_spi_write_nolock:501) addr=0x0144, val=0x00000002
[ 2.853120] conninfra@(consys_spi_write_nolock:501) addr=0x0148, val=0x23a7003a
[ 2.862429] conninfra@(consys_spi_write_nolock:501) addr=0x0148, val=0x63ac003a
[ 2.875769] conninfra@(connsys_a_die_efuse_read_nolock:737) efuse = [0x00000001, 0x00c40000, 0x008600bd, 0x00000000]
[ 2.887281] conninfra@(consys_spi_write_nolock:501) addr=0x0038, val=0x4a563b00
[ 2.895584] conninfra@(consys_spi_write_nolock:501) addr=0x065c, val=0x1d59080f
[ 2.903886] conninfra@(consys_spi_write_nolock:501) addr=0x0664, val=0x34c00fe0
[ 2.912191] conninfra@(consys_spi_write_nolock:501) addr=0x0070, val=0x88888005
[ 2.921451] conninfra@(consys_spi_write_nolock:501) addr=0x0070, val=0x00000005
[ 2.929688] conninfra@(_consys_polling_chipid_int:306) Read CONNSYS HW IP version successfully! (0x02090000)
[ 2.939501] conninfra@(_consys_hw_conninfra_wakeup:470) conninfra_wakeup refcnt=[0]->[1] wakeup!!
[ 2.948364] conninfra@(_consys_hw_conninfra_sleep:490) conninfra_sleep refcnt=[1]->[0] sleep!!
[ 2.956963] conninfra@(opfunc_power_on_internal:241) [Conninfra Pwr On] BT=[0] FM=[0] GPS=[0] WF=[0] CONNINFRA=[1]
[ 2.971349] usbcore: registered new interface driver usbfs
[ 2.976893] usbcore: registered new interface driver hub
[ 2.982244] usbcore: registered new device driver usb
[ 3.004245] xhci-mtk 11200000.xhci: 11200000.xhci supply vbus not found, using dummy regulator
[ 3.012958] xhci-mtk 11200000.xhci: 11200000.xhci supply vusb33 not found, using dummy regulator
[ 3.021859] failed to open /etc/u3p-dis-msk file
[ 3.026470] get mediatek,u3p-dis-msk - [1]
[ 3.030734] phy phy-usb-phy@11e10000.0: try to get sw efuse
[ 3.036307] phy phy-usb-phy@11e10000.1: try to get sw efuse
[ 3.041871] phy phy-usb-phy@11e10000.1: try to get sw efuse+
[ 3.047546] phy phy-usb-phy@11e10000.1: u3 efuse - intr 27, rx_imp f, tx_imp d
[ 3.054797] phy_efuse_set set efuse, tx_imp d, rx_imp f intr 27
[ 3.060799] xhci-mtk 11200000.xhci: xHCI Host Controller
[ 3.066153] xhci-mtk 11200000.xhci: new USB bus registered, assigned bus number 1
[ 3.073712] xhci-mtk 11200000.xhci: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000210010
[ 3.082957] xhci-mtk 11200000.xhci: irq 85, io mem 0x11200000
[ 3.089185] hub 1-0:1.0: USB hub found
[ 3.093037] hub 1-0:1.0: 1 port detected
[ 3.097234] xhci-mtk 11200000.xhci: xHCI Host Controller
[ 3.102569] xhci-mtk 11200000.xhci: new USB bus registered, assigned bus number 2
[ 3.110069] xhci-mtk 11200000.xhci: Host supports USB 3.2 Enhanced SuperSpeed
[ 3.117259] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 3.125752] hub 2-0:1.0: USB hub found
[ 3.129516] hub 2-0:1.0: 1 port detected
[ 3.138097] mediatek_soc_hnat 15100000.hnat: wan = eth1
[ 3.143342] mediatek_soc_hnat 15100000.hnat: lan = lan
[ 3.148475] mediatek_soc_hnat 15100000.hnat: ppd = eth0
[ 3.153692] mediatek_soc_hnat 15100000.hnat: gmac num = 2
[ 3.159081] mediatek_soc_hnat 15100000.hnat: ppe num = 1
[ 3.165012] mediatek_soc_hnat 15100000.hnat: PPE0 entry number = 8192
[ 3.181847] mediatek_soc_hnat 15100000.hnat: PPE0 hwnat start
[ 3.187648] hnat roaming work enable
[ 3.194468] warp_module_init(): module init and register callback for warp
[ 3.201388] create warp_ctrl ok!!!
[ 3.204828] wed_get_slot_map(): assign slot_id:0 for entry: 0!
[ 3.210666] wed_get_slot_map(): assign slot_id:1 for entry: 1!
[ 3.218319] usbcore: registered new interface driver usb-storage
[ 3.225273] usbcore: registered new interface driver uas
[ 3.230795] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 3.244202] init: - preinit -
[ 3.477789] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 3.486125] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 3.498112] mt7530 mdio-bus:1f lan1: configuring for phy/gmii link mode
[ 3.505255] 8021q: adding VLAN 0 to HW filter on device lan1
[ 3.562383] mount_root: loading kmods from internal overlay
[ 3.580139] kmodloader: loading kernel modules from //etc/modules-boot.d/*
[ 3.588667] kmodloader: done loading kernel modules from //etc/modules-boot.d/*
[ 4.498258] UBIFS (ubi0:4): Mounting in unauthenticated mode
[ 4.513794] UBIFS (ubi0:4): background thread "ubifs_bgt0_4" started, PID 903
[ 4.547170] UBIFS (ubi0:4): recovery needed
[ 4.667489] UBIFS (ubi0:4): recovery completed
[ 4.672052] UBIFS (ubi0:4): UBIFS: mounted UBI device 0, volume 4, name "rootfs_data"
[ 4.679878] UBIFS (ubi0:4): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 4.689789] UBIFS (ubi0:4): FS size: 7237632 bytes (6 MiB, 57 LEBs), journal size 1015809 bytes (0 MiB, 6 LEBs)
[ 4.699866] UBIFS (ubi0:4): reserved for root: 341850 bytes (333 KiB)
[ 4.706303] UBIFS (ubi0:4): media format: w5/r0 (latest is w5/r0), UUID 71C8E7E9-C3CF-45E3-9FCE-8C51141FFA23, small LPT model
[ 4.718958] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 4.731036] block: extroot: not configured
[ 4.735277] UBIFS (ubi0:4): un-mount UBI device 0
[ 4.740004] UBIFS (ubi0:4): background thread "ubifs_bgt0_4" stops
[ 4.748964] UBIFS (ubi0:4): Mounting in unauthenticated mode
[ 4.754710] UBIFS (ubi0:4): background thread "ubifs_bgt0_4" started, PID 907
[ 4.814615] UBIFS (ubi0:4): UBIFS: mounted UBI device 0, volume 4, name "rootfs_data"
[ 4.822458] UBIFS (ubi0:4): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 4.832361] UBIFS (ubi0:4): FS size: 7237632 bytes (6 MiB, 57 LEBs), journal size 1015809 bytes (0 MiB, 6 LEBs)
[ 4.842435] UBIFS (ubi0:4): reserved for root: 341850 bytes (333 KiB)
[ 4.848867] UBIFS (ubi0:4): media format: w5/r0 (latest is w5/r0), UUID 71C8E7E9-C3CF-45E3-9FCE-8C51141FFA23, small LPT model
[ 4.863620] mount_root: loading kmods from internal overlay
[ 4.879205] kmodloader: loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*
[ 4.888847] kmodloader: done loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*
[ 5.725089] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 5.735057] block: extroot: not configured
[ 5.741057] mount_root: switching to ubifs overlay
[ 5.755302] urandom-seed: Seeding with /etc/urandom.seed
[ 5.812216] procd: - early -
[ 5.815183] procd: - watchdog -
[ 6.335260] procd: - watchdog -
[ 6.354632] procd: - ubus -
[ 6.412453] procd: - init -
Please press Enter to activate this console.
[ 6.769827] urngd: v1.0.2 started.
[ 6.840182] kmodloader: loading kernel modules from /etc/modules.d/*
[ 6.881677] RPC: Registered named UNIX socket transport module.
[ 6.887598] RPC: Registered udp transport module.
[ 6.892295] RPC: Registered tcp transport module.
[ 6.896989] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 6.906984] ntfs: driver 2.1.32 [Flags: R/O MODULE].
[ 6.922237] l2tp_core: L2TP core driver, V2.0
[ 6.927325] l2tp_netlink: L2TP netlink interface
[ 6.932748] gre: GRE over IPv4 demultiplexor driver
[ 6.938533] ip_gre: GRE over IPv4 tunneling driver
[ 6.949050] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).
[ 6.992021] fuse: init (API version 7.31)
[ 6.999235] (local_dev_info_init:856) module init success
[ 7.005404] (cmdc_iptvtag_proc_init:952) proc init success
[ 7.010914] (cmdc_iptvtag_init:1000) module init success
[ 7.039351] Current mapfilter version v3.0.1.2
[ 9.123354] mt_wifi: module license 'Proprietary' taints kernel.
[ 9.129382] Disabling lock debugging due to kernel taint
[ 9.178520] conninfra@(conninfra_pwr_on:120) [conninfra_pwr_on] drv=[3]
[ 9.186104] conninfra@(_consys_polling_chipid_int:306) Read CONNSYS HW IP version successfully! (0x02090000)
[ 9.203973] Adie Type: 0x7976
[ 9.203977] SKU Type: 3000
[ 9.207923] conninfra@(opfunc_power_on_internal:241) [Conninfra Pwr On] BT=[0] FM=[0] GPS=[0] WF=[1] CONNINFRA=[1]
[ 9.222060] WiFi@C12L1,get_dbg_setting_by_profile() 4244: debug level setting=INDEX0_debug_level not found!!
[ 9.231936] WiFi@C12L1,get_dbg_setting_by_profile() 4267: debug option setting=INDEX0_debug_option not found!!
[ 9.242015] mt_rbus 0000:00:00.0: runtime IRQ mapping not provided by arch
[ 9.255019] mt7981_init()-->
[ 9.257928] Use the default iPAiLNA bin image!
[ 9.262426] <--mt7981_init()
[ 9.265316] RtmpRaDevCtrlInit(): MCS_LUT not used becasue MacTb size(132) > 128!
[ 9.272863] WiFi@C12L1,match_index_by_chipname() 502: not find chip name INDEX1
[ 9.280336] WiFi@C12L1,match_index_by_chipname() 502: not find chip name INDEX2
[ 9.287687] WiFi@C12L1,match_index_by_chipname() 502: not find chip name INDEX3
[ 9.295024] WiFi@C12L1,match_index_by_chipname() 502: not find chip name INDEX4
[ 9.302351] WiFi@C12L1,match_index_by_chipname() 502: not find chip name INDEX5
[ 9.309691] WiFi@C12L1,match_index_by_chipname() 502: not find chip name INDEX6
[ 9.317030] WiFi@C12L1,match_index_by_chipname() 502: not find chip name INDEX7
[ 9.324362] WiFi@C12L1,match_index_by_chipname() 502: not find chip name INDEX8
[ 9.331701] WiFi@C12L1,match_index_by_chipname() 502: not find chip name INDEX9
[ 9.339022] WiFi@C12L2,match_index_by_chipname() 507: Not find slot id, back to old rule.
[ 9.347332] msta_ifname not found
[ 9.361921] -->mtfwd_init(ver:2.0)
[ 9.361965] <--
[ 9.366332] mtk_warp_proxy: module uses symbols from proprietary module mt_wifi, inheriting taint.
[ 9.420757] usbcore: registered new interface driver ums-alauda
[ 9.428182] usbcore: registered new interface driver ums-cypress
[ 9.435996] usbcore: registered new interface driver ums-datafab
[ 9.443679] usbcore: registered new interface driver ums-freecom
[ 9.451392] usbcore: registered new interface driver ums-isd200
[ 9.459353] usbcore: registered new interface driver ums-jumpshot
[ 9.467382] usbcore: registered new interface driver ums-karma
[ 9.475339] usbcore: registered new interface driver ums-sddr09
[ 9.483154] usbcore: registered new interface driver ums-sddr55
[ 9.491404] usbcore: registered new interface driver ums-usbat
[ 9.520331] xt_time: kernel timezone is -0000
[ 9.530653] PPP generic driver version 2.4.2
[ 9.535773] PPP MPPE Compression module registered
[ 9.542242] NET: Registered protocol family 24
[ 9.547786] PPTP driver version 0.8.5
[ 9.553909] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[ 9.561004] kmodloader: done loading kernel modules from /etc/modules.d/*
>>>>>> [20260725-113025+0800] >>>>>> Do config timer task init start!
>>>>>> [20260725-113025+0800] >>>>>> Do config timer task init success!
>>>>>> [20260725-113025+0800] >>>>>> Do preconfig init start!
>>>>>> [20260725-113025+0800] >>>>>> Do preconfig init success!
[ 11.719819] mtk_soc_eth 15100000.ethernet eth0: TX vlan offload cannot be enabled when dsa is attached.
[ 11.730100] mtk_soc_eth 15100000.ethernet eth0: TX vlan offload cannot be enabled when dsa is attached.
[ 16.895654] MediaTek MT798x PHY mdio-bus:00: TX-VCM SW cal result: 0x2
[ 16.903067] mtk_soc_eth 15100000.ethernet eth1: PHY [mdio-bus:00] driver [MediaTek MT798x PHY]
[ 16.911741] mtk_soc_eth 15100000.ethernet eth1: configuring for phy/gmii link mode
[ 16.928979] br-lan: port 1(eth1) entered blocking state
[ 16.934255] br-lan: port 1(eth1) entered disabled state
[ 16.939727] device eth1 entered promiscuous mode
[ 16.947971] br-lan: port 1(eth1) entered blocking state
[ 16.953248] br-lan: port 1(eth1) entered forwarding state
[ 16.993059] mtk_soc_eth 15100000.ethernet eth0: Link is Down
[ 17.012971] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 17.021373] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 17.026448] device eth0 entered promiscuous mode
[ 17.036738] mt7530 mdio-bus:1f lan1: configuring for phy/gmii link mode
[ 17.047966] 8021q: adding VLAN 0 to HW filter on device lan1
[ 17.060030] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 17.066559] br-lan: port 2(lan1) entered blocking state
[ 17.071816] br-lan: port 2(lan1) entered disabled state
[ 17.079331] device lan1 entered promiscuous mode
[ 17.097255] mt7530 mdio-bus:1f lan2: configuring for phy/gmii link mode
[ 17.105078] 8021q: adding VLAN 0 to HW filter on device lan2
[ 17.119388] br-lan: port 3(lan2) entered blocking state
[ 17.124676] br-lan: port 3(lan2) entered disabled state
[ 17.133178] device lan2 entered promiscuous mode
[ 17.150959] mt7530 mdio-bus:1f lan3: configuring for phy/gmii link mode
[ 17.160096] 8021q: adding VLAN 0 to HW filter on device lan3
[ 17.173261] br-lan: port 4(lan3) entered blocking state
[ 17.178519] br-lan: port 4(lan3) entered disabled state
[ 17.185575] device lan3 entered promiscuous mode
[ 17.898032] br-lan: port 1(eth1) entered disabled state
[ 18.083344] /dev/ubi0_1: Can't open blockdev
[ 18.094967] /dev/ubi0_3: Can't open blockdev
>>>>>> [20260725-113032+0800] >>>>>> alias ipaddr [192.168.10.1] conflict with lan!
>>>>>> [20260725-113032+0800] >>>>>> alias br-lan:1 disabled 1
>>>>>> [20260725-113034+0800] >>>>>> Firewall Restart!
[ 20.780240] 7981@C01L2,RTMP_COM_IoctlHandle() 1511: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_INIT
[ 20.790639] msta_ifname not found
[ 20.795194] client_get_axi_slot_id(): wrong BUS_TYPE
[ 20.800216] warp_cap_support(): chip_id=7981 is in WHNAT support list
[ 20.806672] warp_entry_acquire(): bus slot:0, hook to WARP, entry id=0, entry: 00000000a2e04067
[ 20.815399] client_hif_specific_get(): hw->base_phy_addr 0x18000000!!
[ 20.821859] client_chip_specific_get(): 0x7981 chip id 0x7981!!
[ 20.827905] warp_entry_get_by_pdev(): return entry[0]
[ 20.833168] warp_msg_register():warp,pid,5317,id,0,wed_idx,0
[ 20.838902] wed_init(0): res_start = 0x15010000, size = 1000, irq=7,base_addr=0xffffffc012f4d000
[ 20.848231] wed_ring_init(): wed tx ring init result = 0
[ 20.853807] wed_ring_init(): wed rx ring init result = 0
[ 20.866655] create wed ok!!!
[ 20.869578] wdma_init(): wdma(0) base_addr=0xffffffc012f65800, base_phy_addr=0x15104800
[ 20.878530] warp_woif_bus_init_hw(): bus:00000000424b14bf, txring: 20, pa: 0x0000000055742000, 0x0000000055742000, 24, 28, 3c
[ 20.889864] warp_woif_bus_init_hw(): bus:00000000424b14bf, rxring: 50, pa: 0x0000000055754000, 0x0000000055754000, 54, 58, 6c
[ 20.901250] get_region_info(): wed_idx = 0, base_addr = 0x00000000554c8a3d, size = 0x40000, res.start = 0x47d80000, shared:0
[ 20.912524] get_region_info(): wed_idx = 0, base_addr = 0x00000000dbec7309, size = 0x8000, res.start = 0x151e0000, shared:0
[ 20.923738] get_region_info(): wed_idx = 0, base_addr = 0x00000000c60c28fe, size = 0x240000, res.start = 0x47dc0000, shared:1
[ 20.935085] get_region_info(): wed_idx = 0, base_addr = 0x00000000ae2c0431, size = 0x1000, res.start = 0x15194000, shared:0
[ 20.946225] warp_fwdl_mcu_mode(): mcu mode, need fwdl
[ 20.991764] ########## WO Firmware ##########
[ 20.996144] Chip ID: 0x0000
[ 20.998959] ECO version:0
[ 21.001574] Version: DEV_000000
[ 21.004738] Build date: 20240618154113
[ 21.008508] Total region:3
[ 21.011234] #################################
[ 21.015606] Parsing tailer region 0
[ 21.019114] Target address: 0x151e0000
[ 21.022971] Download size: 21968
[ 21.026321] Parsing tailer region 1
[ 21.029821] Target address: 0x47d80000
[ 21.033667] Download size: 86928
[ 21.037063] Parsing tailer region 2
[ 21.040566] Target address: 0x47dc0000
[ 21.044417] Download size: 2345040
[ 21.050473] warp_fwdl_ready_check_mcu_mode(): waiting for wocpu
[ 21.073626] warp_fwdl_ready_check_mcu_mode(): wocpu is ready
[ 21.079328] warp_woctrl_init_state(), wo_state: WO_STATE_ENABLE
[ 21.085287] wo_proc_init done 00000000709d7249
[ 21.089840] wo_exep_proc_init done 00000000709d7249
[ 21.094849] wo_exception_init(0): exp log= 0x00000000d2cb712d, phy_addr= 0x0000000055238000 size= 32768
[ 21.194783] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS0 PhyMode=78
[ 21.201426] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS1 PhyMode=14
[ 21.208072] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS2 PhyMode=78
[ 21.214717] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS3 PhyMode=78
[ 21.221361] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS4 PhyMode=177
[ 21.228082] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS5 PhyMode=177
[ 21.234804] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS6 PhyMode=177
[ 21.241528] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS7 PhyMode=48
[ 21.248481] 7981@C23L3,auto_ch_select_set_cfg() 3438: BandIdx0, AutoChannelAtBootup=1, AutoChannelAlg = 3
[ 21.258099] 7981@C23L3,auto_ch_select_set_cfg() 3438: BandIdx1, AutoChannelAtBootup=1, AutoChannelAlg = 3
[ 21.325524] 7981@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=0, Desired MFPC=0
[ 21.332926] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=1, Desired MFPC=0
[ 21.340363] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=2, Desired MFPC=0
[ 21.347785] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=3, Desired MFPC=0
[ 21.355200] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=4, Desired MFPC=0
[ 21.362637] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=5, Desired MFPC=0
[ 21.370057] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=6, Desired MFPC=0
[ 21.377482] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=7, Desired MFPC=0
[ 21.387022] WiFi@C12L1,RTMPSetProfileParameters() 8516: ra0, QoSMgmtCapa=0
[ 21.393908] WiFi@C12L1,RTMPSetProfileParameters() 8516: (null), QoSMgmtCapa=0
[ 21.401064] WiFi@C12L1,RTMPSetProfileParameters() 8516: (null), QoSMgmtCapa=0
[ 21.408218] WiFi@C12L1,RTMPSetProfileParameters() 8516: (null), QoSMgmtCapa=0
[ 21.415381] WiFi@C12L1,RTMPSetProfileParameters() 8516: (null), QoSMgmtCapa=0
[ 21.422542] WiFi@C12L1,RTMPSetProfileParameters() 8516: (null), QoSMgmtCapa=0
[ 21.429686] WiFi@C12L1,RTMPSetProfileParameters() 8516: (null), QoSMgmtCapa=0
[ 21.436828] WiFi@C12L1,RTMPSetProfileParameters() 8516: (null), QoSMgmtCapa=0
[ 21.451178] WiFi@C12L1,rtmp_read_ap_client_from_file() 1635: APCLI[0] ApCliMuMimoDlEnable = 0
[ 21.459718] WiFi@C12L1,rtmp_read_ap_client_from_file() 1635: APCLI[1] ApCliMuMimoDlEnable = 0
[ 21.468467] WiFi@C12L1,rtmp_read_ap_client_from_file() 1654: APCLI[0] ApCliMuMimoUlEnable = 0
[ 21.477029] WiFi@C12L1,rtmp_read_ap_client_from_file() 1654: APCLI[1] ApCliMuMimoUlEnable = 0
[ 21.487925] WiFi@C03L1,AndesSendCmdMsg() 754: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD
[ 21.499179] WiFi@C03L2,AndesSendCmdMsg() 765: Command type = ed, Extension command type = 48
[ 21.507664] WiFi@C03L1,AndesSendCmdMsg() 754: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD
[ 21.518911] WiFi@C03L2,AndesSendCmdMsg() 765: Command type = ed, Extension command type = 48
[ 21.609495] wdma_dma_ctrl(): WDMA_GLO_CFG=50404e70, txrx = 0
[ 21.619340] wdma_dma_ctrl(): WDMA_GLO_CFG=40404e70, txrx = 0
[ 21.651341] warp_tx_ring_init_hw(): configure ring 0 setting
[ 21.657031] warp_tx_ring_init_hw(): wed:00000000f3f34842 wifi:00000000e47b09c5: 24420=56950000,24424=2048,24428=0
[ 21.667316] warp_tx_ring_init_hw(): configure ring 1 setting
[ 21.672992] warp_tx_ring_init_hw(): wed:00000000f3f34842 wifi:00000000e47b09c5: 24430=56958000,24434=2048,24438=0
[ 21.683384] set_rrocfg,0
[ 21.720249] wdma_dma_ctrl(): WDMA_GLO_CFG=40404e74, txrx = 3
[ 21.725918] using E1 ROM patch
[ 21.728965] using E1 RAM
[ 21.731530] current sync CR = 0x1
[ 21.734876] Built date: 20240618153648a
[ 21.738823] Platform: ALPS
[ 21.741641] HW/SW version: 0x8a108a10
[ 21.745384] Patch version: 0xffffffff
[ 21.756223] current sync CR = 0x1
[ 21.759589] Chip ID: 0x14
[ 21.762351] Eco version: 0x00
[ 21.765399] Region number: 0x0b
[ 21.768662] Format version: 0x02
[ 21.772005] Format flag: 0x01
[ 21.775086] Ram version: ____000000
[ 21.778682] Built date: 20240618153709
[ 21.782546] Common crc: 0xc1479dd1
[ 21.786048] Release info: header tag = 0, total length = 108
[ 21.791817] tag 1, padding length = 1, tag length = 103
[ 21.797137] payload: t-neptune-main-2111-7981-imp_backup_wk2234-MT7981_E1_ASIC_ROM_RAM_REBB_IMP_BACKUP_WK2234-20240618153558
[ 21.834482] Chip ID: 0x00
[ 21.837191] Eco version: 0x00
[ 21.840330] Region number: 0x03
[ 21.843591] Format version: 0x02
[ 21.846928] Format flag: 0x01
[ 21.849998] Ram version: DEV_000000
[ 21.853571] Built date: 20240618154019
[ 21.857427] Common crc: 0x6c87dac0
[ 21.860931] Release info: header tag = 0, total length = 0
[ 21.959806] current sync CR = 0x7
[ 21.963212] efuse_probe: efuse = deaddead
[ 22.030739] WiFi@C02L1,is_cal_free_ic() 831: [a-die version:1]
[ 22.191877] sh (5846): drop_caches: 3
>>>>>> [20260725-113036+0800] >>>>>> [ mediatek,mt7981-spim-snand-rfb ] does not need to mount
[ 23.920931] ubi1: attaching mtd6
[ 24.044666] ubi1: scanning is finished
[ 24.053937] ubi1: attached mtd6 (name "plugins", size 37 MiB)
[ 24.059693] ubi1: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 24.066569] ubi1: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 24.073354] ubi1: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 24.080309] ubi1: good PEBs: 296, bad PEBs: 0, corrupted PEBs: 0
[ 24.086310] ubi1: user volume: 1, internal volumes: 1, max. volumes count: 128
[ 24.093526] ubi1: max/mean erase counter: 35/22, WL threshold: 4096, image sequence number: 356574925
[ 24.102739] ubi1: available PEBs: 0, total reserved PEBs: 296, PEBs reserved for bad PEB handling: 19
[ 24.112007] ubi1: background thread "ubi_bgt1d" started, PID 5990
[ 24.141975] UBIFS (ubi1:0): Mounting in unauthenticated mode
[ 24.147718] UBIFS (ubi1:0): background thread "ubifs_bgt1_0" started, PID 5996
[ 24.173292] UBIFS (ubi1:0): recovery needed
[ 24.281661] UBIFS (ubi1:0): recovery completed
[ 24.286197] UBIFS (ubi1:0): UBIFS: mounted UBI device 1, volume 0, name "plugins"
[ 24.293702] UBIFS (ubi1:0): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 24.303616] UBIFS (ubi1:0): FS size: 33394688 bytes (31 MiB, 263 LEBs), journal size 1650688 bytes (1 MiB, 13 LEBs)
[ 24.314047] UBIFS (ubi1:0): reserved for root: 1577313 bytes (1540 KiB)
[ 24.320675] UBIFS (ubi1:0): media format: w5/r0 (latest is w5/r0), UUID 772335AB-6AC4-4984-87AC-BB2D36EDFAE6, small LPT model
[ 24.374555] WiFi@C17L1,RTMPReadTxPwrPerRate() 450: (450): Don't Support this now!
[ 24.382081] WiFi@C01L1,AntCfgInit() 3059: Not support for HIF_MT yet!
[ 24.406615] ch_switch_monitor_state_machine_init:: enter
[ 24.411946] ch_switch_monitor_cfg_reset:: enter
[ 24.416504] ch_switch_monitor_cfg_reset:: enter
[ 24.421296] WiFi@C17L1,tx_pwr_comp_init() 641: NotSupportYet!
[ 24.427119] WiFi@C12L1,SCS_init() 880: INIT SCSEnable [0]= 1
[ 24.432811] WiFi@C12L1,SCS_init() 887: INIT SCSEnable [1]= 0
[ 24.438653] WiFi@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 24.444214] WiFi@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 24.450012] WiFi@C14L1,IPMacTable_init() 348: IPMacTable already inited!
[ 24.476932] wdma_dma_ctrl(): WDMA_GLO_CFG=58804e75, txrx = 3
[ 24.482763] WiFi@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 24.488428] WiFi@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 24.493992] WiFi@C00L1,set_ack_timeout_mode_byband() 13377: CTS/ACK Timeout Range should between [0xFFFF:0]!!
[ 24.503913] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13465: DAT config band(0) cck_timeout Fail!
[ 24.512614] WiFi@C00L1,set_ack_timeout_mode_byband() 13377: CTS/ACK Timeout Range should between [0xFFFF:0]!!
[ 24.522522] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13476: DAT config band(0) ofdm_timeout Fail!
[ 24.531302] WiFi@C00L1,set_ack_timeout_mode_byband() 13377: CTS/ACK Timeout Range should between [0xFFFF:0]!!
[ 24.541214] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13487: DAT config band(0) ofdma_timeout Fail!
[ 24.550085] WiFi@C00L1,set_ack_timeout_mode_byband() 13377: CTS/ACK Timeout Range should between [0xFFFF:0]!!
[ 24.559996] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13465: DAT config band(1) cck_timeout Fail!
[ 24.568691] WiFi@C00L1,set_ack_timeout_mode_byband() 13377: CTS/ACK Timeout Range should between [0xFFFF:0]!!
[ 24.578600] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13476: DAT config band(1) ofdm_timeout Fail!
[ 24.587381] WiFi@C00L1,set_ack_timeout_mode_byband() 13377: CTS/ACK Timeout Range should between [0xFFFF:0]!!
[ 24.597289] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13487: DAT config band(1) ofdma_timeout Fail!
[ 24.613265] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi]
[ 24.621980] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi]
[ 24.694213] :(op = 0)
[ 24.696503] 7981@C00L2,red_tail_drop_init() 83: red_tail_drop_init: available token:8192, whnat_en:1
[ 24.705674] 7981@C00L1,MtCmdCr4RedSet() 914: MtCmdCr4RedSet: (ret = 0)
[ 24.712208] 7981@C00L1,SendRedCmd() 1049: SendRedCmd:(ret = 1)
[ 24.718133] 7981@C01L2,RTMP_COM_IoctlHandle() 1488: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_UP
[ 24.726143] WiFi@C01L3,wifi_sys_open() 856: wdev idx = 0
[ 24.731748] 7981@C18L3,BuildChannelList() 475:
[ 24.736302] 7981@C00L3,BuildChannelList() 505: BandIdx = 0, PhyMode = 78, ChListNum = 13:
[ 24.744497] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.750860] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.757300] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.763674] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.770127] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.776491] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.782950] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.789319] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.795767] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.802131] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.808590] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.814960] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.821406] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.827778] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.834232] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.840597] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.847056] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.853426] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.859877] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.866242] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.872693] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.879053] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.885498] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.891848] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.898290] 7981@C14L1,vht80_channel_group() 1560: invalid ch_band 0
[ 24.904642] 7981@C14L1,vht160_channel_group() 1629: invalid ch_band 0
[ 24.911079] 7981@C23L1,DfsBuildChannelList() 3489: [RDM]: wdev is not 5G.
[ 24.917894] 7981@C23L3,RadarStateCheck() 244: Zero Wait State: 0
[ 24.923917] 7981@C23L3,operate_loader_phy() 389: oper_cfg: prim_ch(0), ht_bw(0), extcha(1), vht_bw(0), cen_ch_2(0), PhyMode=78!
[ 24.935397] phy_freq_adjust : no prim_ch value for adjust!
[ 24.940888] 7981@C23L1,operate_loader_phy() 393: phy_freq_adjust failed!WiFi@C00L2,dump_ht_cap() 29: Caller: wlan_operate_init+0xa4/0x148 [mt_wifi]
[ 24.954371] wdev_attr_update(): wdevId0 = 54:4d:d4:71:cf:d9
[ 24.959980] WiFi@C12L1,wifi_sys_open() 907: wifi_sys_open():band0 group_idx[0]=0, bw_grp=16 omac=0
[ 24.969063] 7981@C08L3,hw_ctrl_flow_v2_open() 13: wdev_idx=0
[ 24.975222] 7981@C23L1,HcGetBandByChannel() 1139: No hdev parking on channel:0, just return a default band_idx 0!
[ 24.985540] 7981@C02L2,AsicRadioOnOffCtrl() 2317: DbdcIdx=0 RadioOn
[ 24.993776] 7981@C00L2,ApAutoChannelAtBootUp() 333: ----------------->
[ 25.000517] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 25.006382] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 25.012064] 7981@C08L1,UpdateBeaconHandler() 1887: wdev(0) bss not ready (state:0, caller:MTAPAutoSelectChannel+0x108/0x420 [mt_wifi])!!
[ 25.024455] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 25.033640] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=1, ctrl_ch2=0, cent_ch=1 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 25.072494] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=1, ctrl_ch2=0, cent_ch=1, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 25.425982] 7981@C23L2,UpdateChannelInfo() 283: channel 1 busytime 18751
[ 25.432869] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 25.442086] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=2, ctrl_ch2=0, cent_ch=2 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 25.481078] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=2, ctrl_ch2=0, cent_ch=2, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 25.753832] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=1, DfsTime=4294692984,Tmp_time=4294692984
[ 25.833977] 7981@C23L2,UpdateChannelInfo() 283: channel 2 busytime 4912
[ 25.840750] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 25.849899] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=3, ctrl_ch2=0, cent_ch=3 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 25.888781] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=3, ctrl_ch2=0, cent_ch=3, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 26.241980] 7981@C23L2,UpdateChannelInfo() 283: channel 3 busytime 4351
[ 26.248773] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 26.257968] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=4, ctrl_ch2=0, cent_ch=4 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 26.296859] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=4, ctrl_ch2=0, cent_ch=4, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 26.650019] 7981@C23L2,UpdateChannelInfo() 283: channel 4 busytime 2965
[ 26.656797] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 26.665957] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=5, ctrl_ch2=0, cent_ch=5 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 26.704901] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=5, ctrl_ch2=0, cent_ch=5, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 26.801839] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=2, DfsTime=4294692984,Tmp_time=4294694032
[ 26.902958] module exit
[ 27.057978] 7981@C23L2,UpdateChannelInfo() 283: channel 5 busytime 2496
[ 27.064807] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 27.073990] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=6, ctrl_ch2=0, cent_ch=6 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 27.112924] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=6, ctrl_ch2=0, cent_ch=6, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 27.465984] 7981@C23L2,UpdateChannelInfo() 283: channel 6 busytime 12886
[ 27.472922] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 27.482075] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=7, ctrl_ch2=0, cent_ch=7 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 27.521431] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=7, ctrl_ch2=0, cent_ch=7, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 27.853823] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=3, DfsTime=4294692984,Tmp_time=4294695084
[ 27.874151] 7981@C23L2,UpdateChannelInfo() 283: channel 7 busytime 3092
[ 27.880960] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 27.890123] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=8, ctrl_ch2=0, cent_ch=8 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 27.930138] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=8, ctrl_ch2=0, cent_ch=8, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 28.281980] 7981@C23L2,UpdateChannelInfo() 283: channel 8 busytime 3148
[ 28.288810] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 28.297981] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=9, ctrl_ch2=0, cent_ch=9 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 28.336875] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=9, ctrl_ch2=0, cent_ch=9, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 28.693996] 7981@C23L2,UpdateChannelInfo() 283: channel 9 busytime 2831
[ 28.700813] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 28.710001] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=10, ctrl_ch2=0, cent_ch=10 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 28.749081] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=10, ctrl_ch2=0, cent_ch=10, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
DEVICE LIMIT START
GUEST LIMIT OR D[ 28.871612] tcp_life = 80
EVICE LIMIT IS N[ 28.875770] fin_life = 80
OT ENABLE,ECHO 2[ 28.879936] udp_life = 80
!!!
[ 28.902100] 7981@C08L1,UpdateBeaconHandler() 1887: wdev(0) bss not ready (state:0, caller:ApUpdateCapabilityAndErpIe+0x2fc/0x4e0 [mt_wifi])!!
[ 28.915026] 7981@C08L1,UpdateBeaconHandler() 1887: wdev(0) bss not ready (state:0, caller:APUpdateOperationMode+0x110/0x270 [mt_wifi])!!
[ 28.927322] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=4, DfsTime=4294692984,Tmp_time=4294696156
[ 29.110107] 7981@C23L2,UpdateChannelInfo() 283: channel 10 busytime 5785
[ 29.117005] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 29.126204] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=11, ctrl_ch2=0, cent_ch=11 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 29.165304] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=11, ctrl_ch2=0, cent_ch=11, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 29.534602] 7981@C23L2,UpdateChannelInfo() 283: channel 11 busytime 12114
[ 29.541667] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 29.550840] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=12, ctrl_ch2=0, cent_ch=12 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 29.590044] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=12, ctrl_ch2=0, cent_ch=12, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
[ 29.750805] init: Console is alive
[ 29.754531] init: - preinit -
[ 29.859729] procd: - early -
[ 29.941984] 7981@C23L2,UpdateChannelInfo() 283: channel 12 busytime 7105
[ 29.948844] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 29.958031] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=13, ctrl_ch2=0, cent_ch=13 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(1)
[ 29.981993] 7981@C08L1,UpdateBeaconHandler() 1887: wdev(0) bss not ready (state:0, caller:update_ap_qload_to_bcn+0xa0/0xc8 [mt_wifi])!!
[ 29.994242] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=5, DfsTime=4294692984,Tmp_time=4294697224
[ 29.997068] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=13, ctrl_ch2=0, cent_ch=13, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(1)
firewall reload canncel
[ 30.353942] 7981@C23L2,UpdateChannelInfo() 283: channel 13 busytime 2071
[ 30.360938] 7981@C08L1,UpdateBeaconHandler() 1887: wdev(0) bss not ready (state:0, caller:MTAPAutoSelectChannel+0x264/0x420 [mt_wifi])!!
[ 30.373231] 7981@C23L2,select_clear_channel_busy_time() 1824: =====================================================
[ 30.383676] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 1 : Busy Time = 37502, Score 63,Skip Channel = FALSE
[ 30.386889] procd: - ubus -
[ 30.394725] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.407959] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 2 : Busy Time = 23663, Score 77,Skip Channel = TRUE
[ 30.418919] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.429361] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 3 : Busy Time = 23102, Score 77,Skip Channel = TRUE
[ 30.440311] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.450755] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 4 : Busy Time = 21716, Score 79,Skip Channel = TRUE
[ 30.456777] procd: - init -
[ 30.461737] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.474957] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 5 : Busy Time = 21247, Score 79,Skip Channel = TRUE
[ 30.485950] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.496424] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 6 : Busy Time = 31637, Score 69,Skip Channel = FALSE
[ 30.507498] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.517949] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 7 : Busy Time = 21843, Score 79,Skip Channel = TRUE
[ 30.528922] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.539389] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 8 : Busy Time = 21899, Score 79,Skip Channel = TRUE
[ 30.550366] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.560819] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 9 : Busy Time = 21582, Score 79,Skip Channel = TRUE
[ 30.571837] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.582314] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 10 : Busy Time = 24536, Score 76,Skip Channel = TRUE
[ 30.593383] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.603861] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 11 : Busy Time = 12114, Score 88,Skip Channel = FALSE
[ 30.615019] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.625495] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 12 : Busy Time = 25856, Score 75,Skip Channel = TRUE
[ 30.636623] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.647111] 7981@C23L2,select_clear_channel_busy_time() 1830: Channel 13 : Busy Time = 20822, Score 80,Skip Channel = TRUE
[ 30.658164] 7981@C23L2,select_clear_channel_busy_time() 1831: =====================================================
[ 30.668632] 7981@C23L2,select_clear_channel_busy_time() 1839: =============== select best ch for 2.4G =============
[ 30.679138] 7981@C23L3,operate_loader_phy() 389: oper_cfg: prim_ch(11), ht_bw(0), extcha(3), vht_bw(0), cen_ch_2(0), PhyMode=78!
[ 30.690725] 7981@C23L3,operate_loader_phy() 403: oper_dev after adjust: bw(0), prim_ch(11), cen_ch_1(11), cen_ch_2(0),ext_cha(0)!
[ 30.702396] 7981@C23L3,operate_loader_phy() 423: oper_radio after decision: bw(0), prim_ch(11), cen_ch_1(11), cen_ch_2(0)!
[ 30.713546] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 30.722708] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=11, ctrl_ch2=0, cent_ch=11 DBDCIdx=0, ChBand=0, BW=0, TXStream=2, RXStream=2, scan(0)
[ 30.867847] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=11, ctrl_ch2=0, cent_ch=11, RxPath=3, BandIdx=0, ChBand=0, BW=0,TXStream=2, RXStream=3, scan(0)
[ 30.882074] 7981@C23L1,DfsBuildChannelList() 3489: [RDM]: wdev is not 5G.
[ 30.888924] 7981@C23L3,zero_wait_dfs_switch_ch() 925: outband ch 0, ch_stat 0
[ 30.896376] 7981@C08L2,APStartUpForMbss() 977: ===>(caller:ap_inf_open+0x144/0x4d0 [mt_wifi]), mbss_idx:0, CfgMode:0
[ 30.907086] 7981@C15L2,APPMFInit() 133: [PMF] apidx=0, MFPC=0, MFPR=0, SHA256=0
[ 30.914641] 7981@C18L3,BuildChannelList() 475:
[ 30.919555] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi]
[ 30.927230] WiFi@C08L2,ap_link_up() 7105: (caller:wdev_do_linkup+0x20/0x38 [mt_wifi]), wdev(0)
[ 30.935870] 7981@C01L3,wifi_sys_linkup() 1166: wdev idx = 0
[ 31.012256] 7981@C08L3,hw_ctrl_flow_v2_link_up() 72: wdev_idx=0
[ 31.022076] 7981@C08L3,UpdateBeaconHandler() 1907: BCN_UPDATE_INIT, OmacIdx = 0 (ra0)
[ 31.030012] 7981@C08L3,UpdateBeaconHandler() 1920: Band0 BcnInitedRnd = 59
[ 31.037357] 7981@C00L1,TxCCKStreamCtrl() 20443: set wrong parameters
[ 31.053756] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=6, DfsTime=4294692984,Tmp_time=4294698284
[ 31.053866] PrintSrCmd:
[ 31.053866] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.053866] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 31.076879] PrintSrCmd:
[ 31.076879] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.076879] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 31.090903] PrintSrCmd:
[ 31.090903] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.090903] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 31.104975] PrintSrCmd:
[ 31.104975] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.104975] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 31.119092] PrintSrCmd:
[ 31.119092] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.119092] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 31.133252] PrintSrCmd:
[ 31.133252] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.133252] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 31.147496] 7981@C03L3,MtCmdTxPwrShowInfo() 13707: ucTxPowerInfoCatg: 2, BandIdx: 0
[ 31.155287] 7981@C03L3,MtCmdTxPwrShowInfo() 13736: (ret = 0)
[ 31.160963] [mtf_txpower_all_rate_info] band_idx:0 pwr:47 ChBand:2G ePAGain:0
[ 31.168155] -----> CMDC_Record_WSC_Status
[ 31.172166] -----> Set_Wps_Led
[ 31.175222] <----- Set_Wps_Led
[ 31.178299] CMDC_Record_WSC_Status::status=0 fromApcli=0
[ 31.183851] <----- CMDC_Record_WSC_Status
[ 31.187902] WscInit(8163) RECORD WPS STATUS:UNCFG
[ 31.192649] mtk_ppe_dev_register_hook : ineterface ra0 register (1)
[ 31.199943] nf_unregister_hooks()
[ 31.238848] br-lan: port 5(ra0) entered blocking state
[ 31.244129] br-lan: port 5(ra0) entered disabled state
[ 31.249504] device ra0 entered promiscuous mode
[ 31.254199] br-lan: port 5(ra0) entered blocking state
[ 31.259372] br-lan: port 5(ra0) entered forwarding state
[ 31.264920] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[ 31.400486] 7981@C08L2,mbss_virtual_if_open() 134: ===> ra1
[ 31.406258] 7981@C01L2,RTMP_COM_IoctlHandle() 1511: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_INIT
[ 31.414500] 7981@C01L2,RTMP_COM_IoctlHandle() 1488: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_UP
[ 31.422556] WiFi@C01L3,wifi_sys_open() 856: wdev idx = 1
[ 31.428248] 7981@C18L3,BuildChannelList() 475:
[ 31.432898] 7981@C23L3,operate_loader_phy() 389: oper_cfg: prim_ch(0), ht_bw(0), extcha(1), vht_bw(0), cen_ch_2(0), PhyMode=14!
[ 31.444453] phy_freq_adjust : no prim_ch value for adjust!
[ 31.450016] 7981@C23L1,operate_loader_phy() 393: phy_freq_adjust failed!WiFi@C00L2,dump_ht_cap() 29: Caller: wlan_operate_init+0xa4/0x148 [mt_wifi]
[ 31.463495] wdev_attr_update(): wdevId1 = 56:4d:d4:11:cf:d9
[ 31.469171] WiFi@C12L1,wifi_sys_open() 907: wifi_sys_open():band0 group_idx[1]=9, bw_grp=16 omac=17
[ 31.478370] 7981@C08L3,hw_ctrl_flow_v2_open() 13: wdev_idx=1
[ 31.499983] 7981@C23L1,HcGetBandByChannel() 1139: No hdev parking on channel:0, just return a default band_idx 0!
[ 31.510378] 7981@C02L2,AsicRadioOnOffCtrl() 2317: DbdcIdx=0 RadioOn
[ 31.525792] 7981@C00L2,ApAutoChannelAtBootUp() 333: ----------------->
[ 31.535457] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 31.544217] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 31.549702] 7981@C23L3,operate_loader_phy() 389: oper_cfg: prim_ch(11), ht_bw(0), extcha(3), vht_bw(0), cen_ch_2(0), PhyMode=14!
[ 31.561313] 7981@C23L3,operate_loader_phy() 403: oper_dev after adjust: bw(0), prim_ch(11), cen_ch_1(11), cen_ch_2(0),ext_cha(0)!
[ 31.573014] 7981@C23L3,operate_loader_phy() 423: oper_radio after decision: bw(0), prim_ch(11), cen_ch_1(11), cen_ch_2(0)!
[ 31.584092] 7981@C23L1,DfsBuildChannelList() 3489: [RDM]: wdev is not 5G.
[ 31.590893] 7981@C23L3,zero_wait_dfs_switch_ch() 925: outband ch 0, ch_stat 0
[ 31.598318] 7981@C08L2,APStartUpForMbss() 977: ===>(caller:ap_inf_open+0x144/0x4d0 [mt_wifi]), mbss_idx:1, CfgMode:0
[ 31.608923] 7981@C15L2,APPMFInit() 133: [PMF] apidx=1, MFPC=0, MFPR=0, SHA256=0
[ 31.616311] 7981@C18L3,BuildChannelList() 475:
[ 31.621154] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi]
[ 31.628883] WiFi@C08L2,ap_link_up() 7105: (caller:wdev_do_linkup+0x20/0x38 [mt_wifi]), wdev(1)
[ 31.637557] 7981@C01L3,wifi_sys_linkup() 1166: wdev idx = 1
[ 31.715118] 7981@C08L3,hw_ctrl_flow_v2_link_up() 72: wdev_idx=1
[ 31.726004] 7981@C08L3,UpdateBeaconHandler() 1907: BCN_UPDATE_INIT, OmacIdx = 11 (ra1)
[ 31.757280] 7981@C00L1,TxCCKStreamCtrl() 20443: set wrong parameters
[ 31.773853] PrintSrCmd:
[ 31.773853] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.773853] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 31.787884] PrintSrCmd:
[ 31.787884] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.787884] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 31.801901] PrintSrCmd:
[ 31.801901] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.801901] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 31.815909] PrintSrCmd:
[ 31.815909] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.815909] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 31.830003] PrintSrCmd:
[ 31.830003] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.830003] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 31.844088] PrintSrCmd:
[ 31.844088] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
[ 31.844088] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 31.858212] 7981@C03L3,MtCmdTxPwrShowInfo() 13707: ucTxPowerInfoCatg: 2, BandIdx: 0
[ 31.865963] 7981@C03L3,MtCmdTxPwrShowInfo() 13736: (ret = 0)
[ 31.866070] [mtf_txpower_all_rate_info] band_idx:0 pwr:47 ChBand:2G ePAGain:0
[ 31.871626] -----> CMDC_Record_WSC_Status
[ 31.882734] -----> Set_Wps_Led
[ 31.885784] <----- Set_Wps_Led
[ 31.888828] CMDC_Record_WSC_Status::status=0 fromApcli=0
[ 31.894316] <----- CMDC_Record_WSC_Status
[ 31.898344] WscInit(8163) RECORD WPS STATUS:UNCFG
[ 31.903063] mtk_ppe_dev_register_hook : ineterface ra1 register (2)
[ 31.953098] br-lan: port 6(ra1) entered blocking state
[ 31.958315] br-lan: port 6(ra1) entered disabled state
[ 31.963710] device ra1 entered promiscuous mode
[ 31.968391] br-lan: port 6(ra1) entered blocking state
[ 31.973562] br-lan: port 6(ra1) entered forwarding state
[ 32.043508] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 32.074034] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 32.089669] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 32.105475] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 32.122303] device ra0 left promiscuous mode
[ 32.126765] br-lan: port 5(ra0) entered disabled state
[ 32.138087] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 32.149858] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=7, DfsTime=4294692984,Tmp_time=4294699380
[ 32.157322] br-lan: port 5(ra0) entered blocking state
[ 32.164108] br-lan: port 5(ra0) entered disabled state
[ 32.169458] device ra0 entered promiscuous mode
[ 32.174132] br-lan: port 5(ra0) entered blocking state
[ 32.179310] br-lan: port 5(ra0) entered forwarding state
[ 32.232486] device ra1 left promiscuous mode
[ 32.236993] br-lan: port 6(ra1) entered disabled state
[ 32.268772] br-lan: port 6(ra1) entered blocking state
[ 32.273983] br-lan: port 6(ra1) entered disabled state
[ 32.279364] device ra1 entered promiscuous mode
[ 32.283972] br-lan: port 6(ra1) entered blocking state
[ 32.289153] br-lan: port 6(ra1) entered forwarding state
[ 32.295068] 7981@C08L2,mbss_virtual_if_open() 134: ===> rax0
[ 32.300854] 7981@C01L2,RTMP_COM_IoctlHandle() 1511: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_INIT
[ 32.308947] 7981@C01L2,RTMP_COM_IoctlHandle() 1488: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_UP
[ 32.316991] WiFi@C01L3,wifi_sys_open() 856: wdev idx = 4
[ 32.322686] 7981@C18L3,BuildChannelList() 475:
[ 32.327285] 7981@C00L3,BuildChannelList() 505: BandIdx = 1, PhyMode = 177, ChListNum = 13:
[ 32.335654] 7981@C23L3,DfsBuildChannelList() 3534: Done
[ 32.340947] 7981@C23L3,RadarStateCheck() 244: Zero Wait State: 0
[ 32.347014] 7981@C23L3,RadarStateCheck() 290: RD_NORMAL_MODE
[ 32.353828] 7981@C23L3,operate_loader_phy() 389: oper_cfg: prim_ch(0), ht_bw(1), extcha(1), vht_bw(2), cen_ch_2(0), PhyMode=177!
[ 32.365410] phy_freq_adjust : no prim_ch value for adjust!
[ 32.370927] 7981@C23L1,operate_loader_phy() 393: phy_freq_adjust failed!WiFi@C00L2,dump_ht_cap() 29: Caller: wlan_operate_init+0xa4/0x148 [mt_wifi]
[ 32.384435] wdev_attr_update(): wdevId4 = 54:4d:d4:71:cf:da
[ 32.390058] WiFi@C12L1,wifi_sys_open() 907: wifi_sys_open():band1 group_idx[4]=4, bw_grp=16 omac=0
[ 32.399155] 7981@C08L3,hw_ctrl_flow_v2_open() 13: wdev_idx=4
[ 32.453573] 7981@C23L1,HcGetBandByChannel() 1139: No hdev parking on channel:0, just return a default band_idx 0!
[ 32.463897] 7981@C02L2,AsicRadioOnOffCtrl() 2317: DbdcIdx=0 RadioOn
[ 32.503062] 7981@C00L2,ApAutoChannelAtBootUp() 333: ----------------->
[ 32.509972] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 32.515717] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 32.521196] 7981@C23L3,AutoChSelBuildChannelListFor56G() 2707: ChListNum56G = 13
[ 32.528618] 7981@C23L3,AutoChSelBuildChannelListFor56G() 2895: ACSChListNum = 8
[ 32.536221] 7981@C08L1,UpdateBeaconHandler() 1887: wdev(4) bss not ready (state:0, caller:MTAPAutoSelectChannel+0x108/0x420 [mt_wifi])!!
[ 32.548645] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 32.557839] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=36, ctrl_ch2=0, cent_ch=36 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 32.629155] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=36, ctrl_ch2=0, cent_ch=36, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 32.713660] BcnCheck start after 3400 ms (ra0)
0
[ 33.257890] 7981@C23L2,UpdateChannelInfo() 283: channel 36 busytime 891
[ 33.264599] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 33.273746] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=40, ctrl_ch2=0, cent_ch=40 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 33.335208] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=40, ctrl_ch2=0, cent_ch=40, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 33.785910] 7981@C23L2,UpdateChannelInfo() 283: channel 40 busytime 187
[ 33.792622] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 33.801771] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=44, ctrl_ch2=0, cent_ch=44 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 33.863180] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=44, ctrl_ch2=0, cent_ch=44, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 34.317911] 7981@C23L2,UpdateChannelInfo() 283: channel 44 busytime 0
[ 34.324451] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 34.333597] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=48, ctrl_ch2=0, cent_ch=48 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 34.394995] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=48, ctrl_ch2=0, cent_ch=48, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 34.853901] 7981@C23L2,UpdateChannelInfo() 283: channel 48 busytime 1
[ 34.860432] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 34.869578] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=52, ctrl_ch2=0, cent_ch=52 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 34.930504] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=52, ctrl_ch2=0, cent_ch=52, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 35.197894] 7981@C23L2,UpdateChannelInfo() 283: channel 52 busytime 90
[ 35.204519] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 35.213664] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=56, ctrl_ch2=0, cent_ch=56 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 35.274534] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=56, ctrl_ch2=0, cent_ch=56, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 35.329632] BcnCheck start after 900 ms (ra0)
[ 35.334307] 7981@C08L1,UpdateBeaconHandler() 1887: wdev(4) bss not ready (state:0, caller:update_ap_qload_to_bcn+0xa0/0xc8 [mt_wifi])!!
[ 35.541916] 7981@C23L2,UpdateChannelInfo() 283: channel 56 busytime 5
[ 35.548486] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 35.557637] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=60, ctrl_ch2=0, cent_ch=60 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 35.618650] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=60, ctrl_ch2=0, cent_ch=60, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 35.885919] 7981@C23L2,UpdateChannelInfo() 283: channel 60 busytime 56
[ 35.892552] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 35.901695] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=64, ctrl_ch2=0, cent_ch=64 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 35.962734] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=64, ctrl_ch2=0, cent_ch=64, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 36.229898] 7981@C23L2,UpdateChannelInfo() 283: channel 64 busytime 5
[ 36.236442] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 36.245625] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=149, ctrl_ch2=0, cent_ch=149 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 36.307271] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=149, ctrl_ch2=0, cent_ch=149, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 36.937904] 7981@C23L2,UpdateChannelInfo() 283: channel 149 busytime 321
[ 36.944711] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 36.953858] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=153, ctrl_ch2=0, cent_ch=153 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 37.015572] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=153, ctrl_ch2=0, cent_ch=153, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 37.466971] 7981@C23L2,UpdateChannelInfo() 283: channel 153 busytime 492
[ 37.473802] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 37.482952] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=157, ctrl_ch2=0, cent_ch=157 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 37.544666] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=157, ctrl_ch2=0, cent_ch=157, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 37.989911] 7981@C23L2,UpdateChannelInfo() 283: channel 157 busytime 0
[ 37.996545] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 38.005691] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=161, ctrl_ch2=0, cent_ch=161 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 38.067455] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=161, ctrl_ch2=0, cent_ch=161, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 38.141947] Binding Threshold =30
[ 38.521899] 7981@C23L2,UpdateChannelInfo() 283: channel 161 busytime 0
[ 38.528538] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 38.537726] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=165, ctrl_ch2=0, cent_ch=165 DBDCIdx=1, ChBand=1, BW=0, TXStream=3, RXStream=3, scan(1)
[ 38.599415] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=165, ctrl_ch2=0, cent_ch=165, RxPath=7, BandIdx=1, ChBand=1, BW=0,TXStream=3, RXStream=7, scan(1)
[ 39.233902] 7981@C23L2,UpdateChannelInfo() 283: channel 165 busytime 0
[ 39.240664] 7981@C08L1,UpdateBeaconHandler() 1887: wdev(4) bss not ready (state:0, caller:MTAPAutoSelectChannel+0x264/0x420 [mt_wifi])!!
[ 39.252971] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 36 : Busy Time = 891, Score 99,Skip Channel = FALSE
[ 39.263801] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 40 : Busy Time = 187, Score 99,Skip Channel = FALSE
[ 39.274576] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 44 : Busy Time = 0, Score 100,Skip Channel = FALSE
[ 39.285276] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 48 : Busy Time = 1, Score 99,Skip Channel = FALSE
[ 39.295896] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 52 : Busy Time = 90, Score 99,Skip Channel = FALSE
[ 39.306612] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 56 : Busy Time = 5, Score 99,Skip Channel = FALSE
[ 39.317250] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 60 : Busy Time = 56, Score 99,Skip Channel = FALSE
[ 39.327939] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 64 : Busy Time = 5, Score 99,Skip Channel = FALSE
[ 39.338540] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 149 : Busy Time = 321, Score 99,Skip Channel = FALSE
[ 39.349429] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 153 : Busy Time = 492, Score 99,Skip Channel = FALSE
[ 39.360309] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 157 : Busy Time = 0, Score 99,Skip Channel = FALSE
[ 39.371002] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 161 : Busy Time = 0, Score 99,Skip Channel = FALSE
[ 39.381724] 7981@C23L2,select_clear_channel_bw_160M() 1629: Channel 165 : Busy Time = 0, Score 99,Skip Channel = TRUE
[ 39.392364] 7981@C23L2,select_clear_channel_bw_160M() 1632: for BW 160M, select the best primary channel 44
[ 39.402125] 7981@C23L3,RadarStateCheck() 244: Zero Wait State: 0
[ 39.408132] 7981@C23L3,RadarStateCheck() 260: cac_not_req 0
[ 39.414839] 7981@C23L3,operate_loader_phy() 389: oper_cfg: prim_ch(44), ht_bw(1), extcha(1), vht_bw(2), cen_ch_2(0), PhyMode=177!
[ 39.426527] 7981@C23L3,operate_loader_phy() 403: oper_dev after adjust: bw(3), prim_ch(44), cen_ch_1(50), cen_ch_2(0),ext_cha(1)!
[ 39.438210] 7981@C23L3,operate_loader_phy() 423: oper_radio after decision: bw(3), prim_ch(44), cen_ch_1(50), cen_ch_2(0)!
[ 39.449251] 7981@C23L3,DfsCacNormalStart() 3401: [RDM] CAC 65 seconds start . Disable MAC TX
[ 39.457764] 7981@C23L3,DfsSwitchCheck() 3690: DFS ByPass TX calibration.
[ 39.464610] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 39.473754] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=44, ctrl_ch2=0, cent_ch=50 DBDCIdx=1, ChBand=1, BW=3, TXStream=3, RXStream=3, scan(0)
[ 39.505838] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=8, DfsTime=4294692984,Tmp_time=4294706736
[ 39.535862] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=44, ctrl_ch2=0, cent_ch=50, RxPath=7, BandIdx=1, ChBand=1, BW=3,TXStream=3, RXStream=7, scan(0)
[ 39.554678] 7981@C23L3,DfsBuildChannelList() 3534: Done
[ 39.559916] 7981@C23L3,zero_wait_dfs_switch_ch() 925: outband ch 0, ch_stat 0
[ 39.567049] 7981@C23L3,zero_wait_dfs_switch_ch() 932: bDedicatedZeroWaitDefault == 0
[ 39.575006] 7981@C08L2,APStartUpForMbss() 977: ===>(caller:ap_inf_open+0x144/0x4d0 [mt_wifi]), mbss_idx:4, CfgMode:0
[ 39.585565] 7981@C15L2,APPMFInit() 133: [PMF] apidx=4, MFPC=0, MFPR=0, SHA256=0
[ 39.592932] 7981@C18L3,BuildChannelList() 475:
[ 39.597748] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi]
[ 39.605375] WiFi@C08L2,ap_link_up() 7105: (caller:wdev_do_linkup+0x20/0x38 [mt_wifi]), wdev(4)
[ 39.614001] 7981@C01L3,wifi_sys_linkup() 1166: wdev idx = 4
[ 39.689910] 7981@C08L3,hw_ctrl_flow_v2_link_up() 72: wdev_idx=4
[ 39.699748] 7981@C08L3,UpdateBeaconHandler() 1907: BCN_UPDATE_INIT, OmacIdx = 0 (rax0)
[ 39.707672] 7981@C08L3,UpdateBeaconHandler() 1920: Band1 BcnInitedRnd = 141
[ 39.728113] PrintSrCmd:
[ 39.728113] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 39.728113] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 39.742117] PrintSrCmd:
[ 39.742117] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 39.742117] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 39.756103] PrintSrCmd:
[ 39.756103] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 39.756103] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 39.770166] PrintSrCmd:
[ 39.770166] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 39.770166] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 39.784257] PrintSrCmd:
[ 39.784257] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 39.784257] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 39.798343] PrintSrCmd:
[ 39.798343] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 39.798343] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 39.812531] 7981@C03L3,MtCmdTxPwrShowInfo() 13707: ucTxPowerInfoCatg: 2, BandIdx: 1
[ 39.820305] 7981@C03L3,MtCmdTxPwrShowInfo() 13736: (ret = 0)
[ 39.826008] [mtf_txpower_all_rate_info] band_idx:1 pwr:48 ChBand:5G ePAGain:0
[ 39.833157] -----> CMDC_Record_WSC_Status
[ 39.837162] -----> Set_Wps_Led
[ 39.840265] <----- Set_Wps_Led
[ 39.843319] CMDC_Record_WSC_Status::status=0 fromApcli=0
[ 39.848782] <----- CMDC_Record_WSC_Status
[ 39.852799] WscInit(8163) RECORD WPS STATUS:UNCFG
[ 39.857528] mtk_ppe_dev_register_hook : ineterface rax0 register (3)
[ 39.877445] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 39.889848] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 39.905227] br-lan: port 7(rax0) entered blocking state
[ 39.910584] br-lan: port 7(rax0) entered disabled state
[ 39.916066] device rax0 entered promiscuous mode
[ 39.920809] br-lan: port 7(rax0) entered blocking state
[ 39.926050] br-lan: port 7(rax0) entered forwarding state
[ 39.940605] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 39.949464] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 40.036230] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 40.046731] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 40.054889] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 40.139303] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 40.147319] 7981@C08L2,mbss_virtual_if_open() 134: ===> rax1
[ 40.153093] 7981@C01L2,RTMP_COM_IoctlHandle() 1511: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_INIT
[ 40.161292] 7981@C01L2,RTMP_COM_IoctlHandle() 1488: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_UP
[ 40.169339] WiFi@C01L3,wifi_sys_open() 856: wdev idx = 5
[ 40.174990] 7981@C18L3,BuildChannelList() 475:
[ 40.179673] 7981@C23L3,RadarStateCheck() 244: Zero Wait State: 0
[ 40.185710] 7981@C23L3,RadarStateCheck() 260: cac_not_req 0
[ 40.192431] 7981@C23L3,operate_loader_phy() 389: oper_cfg: prim_ch(44), ht_bw(1), extcha(1), vht_bw(2), cen_ch_2(0), PhyMode=177!
[ 40.204084] 7981@C23L3,operate_loader_phy() 403: oper_dev after adjust: bw(3), prim_ch(44), cen_ch_1(50), cen_ch_2(0),ext_cha(1)!
[ 40.215797] 7981@C23L3,operate_loader_phy() 423: oper_radio after decision: bw(3), prim_ch(44), cen_ch_1(50), cen_ch_2(0)!
[ 40.226884] 7981@C23L3,DfsCacNormalStart() 3401: [RDM] CAC 65 seconds start . Disable MAC TX
[ 40.235395] 7981@C23L3,DfsSwitchCheck() 3690: DFS ByPass TX calibration.
[ 40.242270] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 40.251483] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=44, ctrl_ch2=0, cent_ch=50 DBDCIdx=1, ChBand=1, BW=3, TXStream=3, RXStream=3, scan(0)
[ 40.298079] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=44, ctrl_ch2=0, cent_ch=50, RxPath=7, BandIdx=1, ChBand=1, BW=3,TXStream=3, RXStream=7, scan(0)
[ 40.317246] WiFi@C00L2,dump_ht_cap() 29: Caller: wlan_operate_init+0xa4/0x148 [mt_wifi]
[ 40.325332] wdev_attr_update(): wdevId5 = 56:4d:d4:51:cf:da
[ 40.330997] WiFi@C12L1,wifi_sys_open() 907: wifi_sys_open():band1 group_idx[5]=25, bw_grp=16 omac=17
[ 40.340355] 7981@C08L3,hw_ctrl_flow_v2_open() 13: wdev_idx=5
[ 40.349895] 7981@C02L2,AsicRadioOnOffCtrl() 2317: DbdcIdx=1 RadioOn
[ 40.357425] 7981@C00L2,ApAutoChannelAtBootUp() 333: ----------------->
[ 40.364273] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 40.370397] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 40.375876] 7981@C00L1,ApAutoChannelAtBootUp() 493: zero-wait DFS is not enabled
[ 40.383301] 7981@C08L1,ap_run_at_boot() 625: ACS is disable !!
[ 40.390178] 7981@C08L2,APStartUpForMbss() 977: ===>(caller:ap_inf_open+0x144/0x4d0 [mt_wifi]), mbss_idx:5, CfgMode:0
[ 40.400772] 7981@C15L2,APPMFInit() 133: [PMF] apidx=5, MFPC=0, MFPR=0, SHA256=0
[ 40.408169] 7981@C18L3,BuildChannelList() 475:
[ 40.413012] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi]
[ 40.420706] WiFi@C08L2,ap_link_up() 7105: (caller:wdev_do_linkup+0x20/0x38 [mt_wifi]), wdev(5)
[ 40.429355] 7981@C01L3,wifi_sys_linkup() 1166: wdev idx = 5
[ 40.510355] 7981@C08L3,hw_ctrl_flow_v2_link_up() 72: wdev_idx=5
[ 40.528447] 7981@C08L3,UpdateBeaconHandler() 1907: BCN_UPDATE_INIT, OmacIdx = 11 (rax1)
[ 40.552515] PrintSrCmd:
[ 40.552515] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 40.552515] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 40.566627] PrintSrCmd:
[ 40.566627] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 40.566627] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 40.580736] PrintSrCmd:
[ 40.580736] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 40.580736] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 40.594784] PrintSrCmd:
[ 40.594784] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 40.594784] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 40.608924] PrintSrCmd:
[ 40.608924] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 40.608924] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 40.623066] PrintSrCmd:
[ 40.623066] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 40.623066] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 40.637232] 7981@C03L3,MtCmdTxPwrShowInfo() 13707: ucTxPowerInfoCatg: 2, BandIdx: 1
[ 40.645140] 7981@C03L3,MtCmdTxPwrShowInfo() 13736: (ret = 0)
[ 40.645244] [mtf_txpower_all_rate_info] band_idx:1 pwr:48 ChBand:5G ePAGain:0
[ 40.650815] -----> CMDC_Record_WSC_Status
[ 40.661926] -----> Set_Wps_Led
[ 40.664968] <----- Set_Wps_Led
[ 40.668046] CMDC_Record_WSC_Status::status=0 fromApcli=0
[ 40.673517] <----- CMDC_Record_WSC_Status
[ 40.677548] WscInit(8163) RECORD WPS STATUS:UNCFG
[ 40.682418] mtk_ppe_dev_register_hook : ineterface rax1 register (4)
[ 40.689181] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 40.699700] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:8
[ 40.708520] br-lan: port 8(rax1) entered blocking state
[ 40.713793] br-lan: port 8(rax1) entered disabled state
[ 40.719401] device rax1 entered promiscuous mode
[ 40.724217] br-lan: port 8(rax1) entered blocking state
[ 40.729483] br-lan: port 8(rax1) entered forwarding state
[ 40.735181] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=9, DfsTime=4294692984,Tmp_time=4294707964
[ 40.744850] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 40.756905] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:0
[ 40.780197] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 40.809327] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 40.823824] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 40.840626] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 40.854610] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:1
[ 40.860846] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 40.885089] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 40.917689] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 40.941286] 7981@C03L3,bssUpdateHighPriRateICMP() 4146: bssUpdateHighPriRateICMP (BSS_INFO_HIGHPRI_INFO), CmdBssInfoHighPriRate.u2HighPriTransmit = 8192
[ 40.960326] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 40.974143] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:2
[ 40.983228] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:3
[ 41.008505] 7981@C12L1,Set_AP_VENDOR_SPECIFIC_IE() 3554: Unknown OUIType = 16
[ 41.053294] 7981@C12L1,Set_AP_VENDOR_SPECIFIC_IE() 3554: Unknown OUIType = 9
[ 41.065291] sh (9054): drop_caches: 3
[ 41.072208] 7981@C12L1,set_wapp_cmm_ie() 3450: Unknown IE(EID = 111)
[ 41.080561] 7981@C12L1,set_wapp_cmm_ie() 3450: Unknown IE(EID = 110)
[ 41.225305] br-lan: port 9(apcli0) entered blocking state
[ 41.230743] br-lan: port 9(apcli0) entered disabled state
[ 41.236451] device apcli0 entered promiscuous mode
GUEST LIMIT OR D[ 41.444169] tcp_life = 80
EVICE LIMIT IS N[ 41.448517] fin_life = 80
OT ENABLE,ECHO 2[ 41.453153] udp_life = 80
!!!
[ 41.461051] Per-port-per-queue mode is going to be enabled !
[ 41.754268] device rax0 left promiscuous mode
[ 41.758823] br-lan: port 7(rax0) entered disabled state
[ 41.805829] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=10, DfsTime=4294692984,Tmp_time=4294709036
[ 41.817380] br-lan: port 7(rax0) entered blocking state
[ 41.822645] br-lan: port 7(rax0) entered disabled state
[ 41.828091] device rax0 entered promiscuous mode
[ 41.832781] br-lan: port 7(rax0) entered blocking state
[ 41.838003] br-lan: port 7(rax0) entered forwarding state
[ 41.914759] device rax1 left promiscuous mode
[ 41.919262] br-lan: port 8(rax1) entered disabled state
[ 41.963624] br-lan: port 8(rax1) entered blocking state
[ 41.968886] br-lan: port 8(rax1) entered disabled state
[ 41.974382] device rax1 entered promiscuous mode
[ 41.979163] br-lan: port 8(rax1) entered blocking state
[ 41.984408] br-lan: port 8(rax1) entered forwarding state
[ 42.054694] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8bee] return!!!
[ 42.197600] br-lan: port 10(apclix0) entered blocking state
[ 42.203225] br-lan: port 10(apclix0) entered disabled state
[ 42.236165] device apclix0 entered promiscuous mode
[ 42.299990] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8bee] return!!!
[ 42.853850] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=11, DfsTime=4294692984,Tmp_time=4294710084
[ 42.939163] Set_Fh_Bss_Proc ra0 wdev->MAPCfg.DevOwnRole 0x0
[ 42.950395] Set_Fh_Bss_Proc ra0 wdev->MAPCfg.DevOwnRole 0x20
[ 42.958502] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8bee] return!!!
[ 42.979703] 7981@C12L1,RTMPAPPrivIoctlSet() 3567: IOCTL::(iwpriv) Command not Support [MapChannelEn=1]
[ 43.001094] Set_Fh_Bss_Proc ra1 wdev->MAPCfg.DevOwnRole 0x0
[ 43.013580] Set_Fh_Bss_Proc ra1 wdev->MAPCfg.DevOwnRole 0x20
[ 43.025499] 7981@C12L1,RTMPAPPrivIoctlSet() 3567: IOCTL::(iwpriv) Command not Support [MapChannelEn=1]
[ 43.039690] Set_Fh_Bss_Proc rax0 wdev->MAPCfg.DevOwnRole 0x0
[ 43.051921] Set_Fh_Bss_Proc rax0 wdev->MAPCfg.DevOwnRole 0x20
[ 43.070574] 7981@C12L1,RTMPAPPrivIoctlSet() 3567: IOCTL::(iwpriv) Command not Support [MapChannelEn=1]
[ 43.098284] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8bee] return!!!
[ 43.588096] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 0, duty: 100
[ 43.597458] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 1, duty: 70
[ 43.606517] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 2, duty: 30
[ 43.630613] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 3, duty: 10
[ 43.651711] SetThermalProtectDutyInfo(): band_idx: 0
[ 43.656809] EventThermalProtDutyInfo
[ 43.660385] band_idx: 0
[ 43.662825] duty0: 100, duty1: 70, duty2: 30, duty3: 10
[ 43.679900] SetThermalProtectEnable(): band_idx: 0, protection_type: 1, trigger_type: 1
[ 43.687932] SetThermalProtectEnable(): trigger_temp: 108, restore_temp: 98, recheck_time: 10
[ 43.723079] SetThermalProtectInfo(): band_idx: 0
[ 43.727881] band_idx: 0
[ 43.730333] prot_type: 0, trig_type: 1
[ 43.734073] state: 0, enable: 0
[ 43.737200] trigger_temp: 0, restore_temp: 0
[ 43.741458] recheck_time: 0
[ 43.744242] --------------------------
[ 43.747981] prot_type: 1, trig_type: 1
[ 43.751719] state: 0, enable: 1
[ 43.754850] trigger_temp: 108, restore_temp: 98
[ 43.759369] recheck_time: 10
[ 43.762239] --------------------------
[ 43.765977] prot_type: 2, trig_type: 1
[ 43.769715] state: 0, enable: 0
[ 43.772843] trigger_temp: 0, restore_temp: 0
[ 43.777101] recheck_time: 0
[ 43.779884] --------------------------
[ 43.789808] SetThermalProtectDutyCfg(): band_idx: 1, level_idx: 0, duty: 100
[ 43.799444] SetThermalProtectDutyCfg(): band_idx: 1, level_idx: 1, duty: 70
[ 43.827397] SetThermalProtectDutyCfg(): band_idx: 1, level_idx: 2, duty: 30
[ 43.846570] SetThermalProtectDutyCfg(): band_idx: 1, level_idx: 3, duty: 10
[ 43.876378] SetThermalProtectDutyInfo(): band_idx: 1
[ 43.881539] EventThermalProtDutyInfo
[ 43.885121] band_idx: 1
[ 43.887562] duty0: 100, duty1: 70, duty2: 30, duty3: 10
[ 43.898539] SetThermalProtectEnable(): band_idx: 1, protection_type: 1, trigger_type: 1
[ 43.901820] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=12, DfsTime=4294692984,Tmp_time=4294711132
[ 43.906635] SetThermalProtectEnable(): trigger_temp: 108, restore_temp: 98, recheck_time: 10
[ 43.954529] SetThermalProtectInfo(): band_idx: 1
[ 43.959339] band_idx: 1
[ 43.961796] prot_type: 0, trig_type: 1
[ 43.965543] state: 0, enable: 0
[ 43.968678] trigger_temp: 0, restore_temp: 0
[ 43.972937] recheck_time: 0
[ 43.975723] --------------------------
[ 43.979462] prot_type: 1, trig_type: 1
[ 43.983201] state: 0, enable: 1
[ 43.986334] trigger_temp: 108, restore_temp: 98
[ 43.990857] recheck_time: 10
[ 43.993730] --------------------------
[ 43.997466] prot_type: 2, trig_type: 1
[ 44.001205] state: 0, enable: 0
[ 44.004338] trigger_temp: 0, restore_temp: 0
[ 44.008597] recheck_time: 0
[ 44.011381] --------------------------
[ 44.555001] Set_MapR2_Proc MAP R2 is already disabled
[ 44.563802] Set_MapTS_Proc MAP TS is already disabled
[ 44.583192] Set_MapR2_Proc MAP R2 is already disabled
[ 44.593504] Set_MapTS_Proc MAP TS is already disabled
[ 44.619087] Set_Enable_Dpp_Proc DPP is already disabled
[ 44.638316] Set_MapTS_Proc MAP TS is already disabled
[ 44.658938] Set_Enable_Dpp_Proc DPP is already disabled
[ 44.666800] Set_MapTS_Proc MAP TS is already disabled
[ 44.953847] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=13, DfsTime=4294692984,Tmp_time=4294712184
[ 45.719142] -->mtfwd_exit()
[ 45.719187] <--mtfwd_exit()
[ 45.767480] Current mapfilter version v3.0.1.2
[ 45.807448] 7981@C01L2,RTMP_COM_IoctlHandle() 1511: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_INIT
[ 45.815596] 7981@C01L2,RTMP_COM_IoctlHandle() 1488: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_UP
[ 45.823617] WiFi@C01L3,wifi_sys_open() 856: wdev idx = 8
[ 45.829195] 7981@C18L3,BuildChannelList() 475:
[ 45.833792] 7981@C23L3,operate_loader_phy() 389: oper_cfg: prim_ch(11), ht_bw(0), extcha(1), vht_bw(0), cen_ch_2(0), PhyMode=78!
[ 45.845354] 7981@C23L3,operate_loader_phy() 403: oper_dev after adjust: bw(0), prim_ch(11), cen_ch_1(11), cen_ch_2(0),ext_cha(0)!
[ 45.857007] 7981@C23L3,operate_loader_phy() 423: oper_radio after decision: bw(0), prim_ch(11), cen_ch_1(11), cen_ch_2(0)!
[ 45.868255] WiFi@C00L2,dump_ht_cap() 29: Caller: wlan_operate_init+0xa4/0x148 [mt_wifi]
[ 45.876269] wdev_attr_update(): wdevId8 = 52:4d:d4:71:cf:d9
[ 45.886800] 7981@C08L3,hw_ctrl_flow_v2_open() 13: wdev_idx=8
[ 45.895358] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi]
[ 45.902789] -----> CMDC_Record_WSC_Status
[ 45.906799] -----> Set_Wps_Led
[ 45.909847] <----- Set_Wps_Led
[ 45.912889] CMDC_Record_WSC_Status::status=0 fromApcli=0
[ 45.918955] <----- CMDC_Record_WSC_Status
[ 45.922983] WscInit(8163) RECORD WPS STATUS:UNCFG
[ 45.927704] mtk_ppe_dev_register_hook : ineterface apcli0 register (5)
[ 45.934428] br-lan: port 9(apcli0) entered blocking state
[ 45.939839] br-lan: port 9(apcli0) entered forwarding state
[ 45.945799] br-lan: port 9(apcli0) entered disabled state
[ 45.961544] Set_Map_Proc current MAP MODE is 1
[ 45.971109] SetApCliEnableByWdev: I/F(apcli0) (enable = 0)
[ 46.005860] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=14, DfsTime=4294692984,Tmp_time=4294713236
[ 46.030372] 7981@C01L2,RTMP_COM_IoctlHan
[ 48.113792] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=16, DfsTime=4294692984,Tmp_time=4294715344
[ 48.333952] 7981@C08L2,mbss_virtual_if_close() 171: ===> rax1
[ 48.339874] 7981@C01L2,RTMP_COM_IoctlHandle() 1499: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_DOWN
[ 48.348284] WiFi@C08L2,ap_link_down() 7123: (caller:wdev_do_linkdown+0x20/0x38 [mt_wifi]), wdev(5)
[ 48.357558] 7981@C08L1,UpdateBeaconHandler() 1887: wdev(5) bss not ready (state:2, caller:ap_link_down+0x84/0x130 [mt_wifi])!!
[ 48.369013] 7981@C01L3,wifi_sys_linkdown() 1290: wdev idx = 5
[ 48.375103] 7981@C08L3,hw_ctrl_flow_v2_link_down() 123: wdev_idx=5
[ 48.384865] WiFi@C01L3,wifi_sys_close() 945: wdev idx = 5
[ 48.390647] 7981@C08L3,hw_ctrl_flow_v2_close() 41: wdev_idx=5
[ 48.396831] 7981@C01L2,RTMP_COM_IoctlHandle() 1522: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_DEINIT
[ 48.405116] extif_put_dev(rax1)
[ 48.408296] mtk_ppe_dev_unregister_hook : ineterface rax1 set null (4)
[ 48.414987] br-lan: port 8(rax1) entered disabled state
[ 49.161778] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=17, DfsTime=4294692984,Tmp_time=4294716392
[ 49.425603] 7981@C08L2,mbss_virtual_if_open() 134: ===> rax1
[ 49.431414] 7981@C01L2,RTMP_COM_IoctlHandle() 1511: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_INIT
[ 49.439556] 7981@C01L2,RTMP_COM_IoctlHandle() 1488: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_UP
[ 49.447559] WiFi@C01L3,wifi_sys_open() 856: wdev idx = 5
[ 49.453173] 7981@C18L3,BuildChannelList() 475:
[ 49.457746] 7981@C23L3,RadarStateCheck() 244: Zero Wait State: 0
[ 49.463792] 7981@C23L3,RadarStateCheck() 260: cac_not_req 0
[ 49.470491] 7981@C23L3,operate_loader_phy() 389: oper_cfg: prim_ch(44), ht_bw(1), extcha(1), vht_bw(2), cen_ch_2(0), PhyMode=177!
[ 49.482133] 7981@C23L3,operate_loader_phy() 403: oper_dev after adjust: bw(3), prim_ch(44), cen_ch_1(50), cen_ch_2(0),ext_cha(1)!
[ 49.493825] 7981@C23L3,operate_loader_phy() 423: oper_radio after decision: bw(3), prim_ch(44), cen_ch_1(50), cen_ch_2(0)!
[ 49.504878] 7981@C23L3,DfsCacNormalStart() 3401: [RDM] CAC 65 seconds start . Disable MAC TX
[ 49.513327] 7981@C23L3,DfsSwitchCheck() 3690: DFS ByPass TX calibration.
[ 49.520140] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal
[ 49.529289] 7981@C03L3,MtCmdChannelSwitch() 2529: ctrl_chl=44, ctrl_ch2=0, cent_ch=50 DBDCIdx=1, ChBand=1, BW=3, TXStream=3, RXStream=3, scan(0)
[ 49.547379] 7981@C03L3,MtCmdSetTxRxPath() 2772: ctrl_chl=44, ctrl_ch2=0, cent_ch=50, RxPath=7, BandIdx=1, ChBand=1, BW=3,TXStream=3, RXStream=7, scan(0)
[ 49.566460] WiFi@C00L2,dump_ht_cap() 29: Caller: wlan_operate_init+0xa4/0x148 [mt_wifi]
[ 49.574480] wdev_attr_update(): wdevId5 = 56:4d:d4:51:cf:da
[ 49.580119] WiFi@C12L1,wifi_sys_open() 907: wifi_sys_open():band1 group_idx[5]=25, bw_grp=16 omac=17
[ 49.589340] 7981@C08L3,hw_ctrl_flow_v2_open() 13: wdev_idx=5
[ 49.596261] 7981@C02L2,AsicRadioOnOffCtrl() 2317: DbdcIdx=1 RadioOn
[ 49.603150] 7981@C00L2,ApAutoChannelAtBootUp() 333: ----------------->
[ 49.609860] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 49.615394] 7981@C03L1,MtCmdSetMacTxRx() 10207: (ret = 0)
[ 49.620798] 7981@C00L1,ApAutoChannelAtBootUp() 493: zero-wait DFS is not enabled
[ 49.628191] 7981@C08L1,ap_run_at_boot() 625: ACS is disable !!
[ 49.635019] 7981@C08L2,APStartUpForMbss() 977: ===>(caller:ap_inf_open+0x144/0x4d0 [mt_wifi]), mbss_idx:5, CfgMode:0
[ 49.645591] 7981@C15L2,APPMFInit() 133: [PMF] apidx=5, MFPC=0, MFPR=0, SHA256=0
[ 49.652922] 7981@C18L3,BuildChannelList() 475:
[ 49.657717] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi]
[ 49.665329] WiFi@C08L2,ap_link_up() 7105: (caller:wdev_do_linkup+0x20/0x38 [mt_wifi]), wdev(5)
[ 49.673945] 7981@C01L3,wifi_sys_linkup() 1166: wdev idx = 5
[ 49.754695] 7981@C08L3,hw_ctrl_flow_v2_link_up() 72: wdev_idx=5
[ 49.772536] 7981@C08L3,UpdateBeaconHandler() 1907: BCN_UPDATE_INIT, OmacIdx = 11 (rax1)
[ 49.780541] 7981@C08L2,bcn_buf_init() 170: BcnPkt is allocated!, bcn offload=1
[ 49.801264] PrintSrCmd:
[ 49.801264] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 49.801264] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 49.815270] PrintSrCmd:
[ 49.815270] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 49.815270] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 49.829268] PrintSrCmd:
[ 49.829268] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 49.829268] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 1
[ 49.843255] PrintSrCmd:
[ 49.843255] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 49.843255] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 49.857326] PrintSrCmd:
[ 49.857326] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 49.857326] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 49.871402] PrintSrCmd:
[ 49.871402] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
[ 49.871402] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
[ 49.885504] 7981@C03L3,MtCmdTxPwrShowInfo() 13707: ucTxPowerInfoCatg: 2, BandIdx: 1
[ 49.893273] 7981@C03L3,MtCmdTxPwrShowInfo() 13736: (ret = 0)
[ 49.893374] [mtf_txpower_all_rate_info] band_idx:1 pwr:48 ChBand:5G ePAGain:0
[ 49.898933] -----> CMDC_Record_WSC_Status
[ 49.910051] -----> Set_Wps_Led
[ 49.913093] <----- Set_Wps_Led
[ 49.916145] CMDC_Record_WSC_Status::status=0 fromApcli=0
[ 49.921571] <----- CMDC_Record_WSC_Status
[ 49.925592] WscInit(8163) RECORD WPS STATUS:UNCFG
[ 49.930317] extif_set_dev(rax1)
[ 49.933447] mtk_ppe_dev_register_hook : ineterface rax1 register (4)
[ 49.939920] br-lan: port 8(rax1) entered blocking state
[ 49.945157] br-lan: port 8(rax1) entered forwarding state
[ 49.968535] Set_MapR2_Proc: MAP R2 is enabled
[ 49.974683] Set_MapTS_Proc: MAP TS is enabled
[ 49.984262] Set_MapR2_Proc MAP R2 is already enabled
[ 49.993332] Set_MapTS_Proc MAP TS is already enabled
[ 50.028601] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 4
[ 50.038287] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 4
[ 50.047677] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 2
[ 50.058535] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 2
[ 50.072153] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 4
[ 50.081463] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 4
[ 50.091146] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 2
[ 50.102064] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 2
[ 50.112658] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.122378] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.132724] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.142432] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.151702] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.161350] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.170939] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.180203] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.190969] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.206504] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.217566] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.226984] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 50.246752] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 4
[ 50.257683] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 2
[ 50.272824] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 4
[ 50.287098] 7981@C12L3,Set_VLAN_Policy_Proc() 14381: Set the VLAN checking policy : 2
[ 50.297843] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=18, DfsTime=4294692984,Tmp_time=4294717528
[ 51.349806] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=19, DfsTime=4294692984,Tmp_time=4294718580
[ 52.397785] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=20, DfsTime=4294692984,Tmp_time=4294719628
[ 52.664936] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 52.674395] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 52.684094] SetApCliEnableByWdev: I/F(apcli0) (enable = 0)
[ 52.692399] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 52.701599] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 52.784143] SetApCliEnableByWdev: I/F(apcli1) (enable = 0)
[ 52.884988] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 52.899687] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 52.908141] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 52.916912] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 53.072766] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 53.080744] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 53.089172] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[ 53.097155] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!!
[1905Daemon][main] Current Version v3.0.2.0
[1905Daemon][main] alloc ctx size(312336)
[1905Daemon][main] set 1905 role agent
[1905Daemon][main] map cfg file /etc/map/1905d.cfg
[1905Daemon][main] wts bss cfg file /etc/map/wts_bss_info_config
[1905Daemon][map_read_config_file] map_agent_alid = 54:4d:d4:71:cf:d8
[1905Daemon][map_read_config_file] br_inf = br-lan
[1905Daemon][map_read_config_file] ctx->map_[ 53.266694] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:8
version = 2
[19[ 53.274351] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:0
05Daemon][map_re[ 53.282232] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:1
ad_config_file] [ 53.289064] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:2
bss_config_prior[ 53.296683] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:3
ity: ra0;ra1;ra2[ 53.304980] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:8
;ra3;apcli0;rax0[ 53.311786] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:0
;rax1;rax2;rax3;[ 53.319467] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:1
apclix0;
[1905D[ 53.326688] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:2
aemon][map_read_[ 53.333916] 7981@C14L1,set_wapp_param() 3306: Unknown Parameter:3
config_file] dec[ 53.341404] 7981@C12L1,Set_AP_VENDOR_SPECIFIC_IE() 3554: Unknown OUIType = 16
rypt_fail_thresh[ 53.349876] 7981@C12L1,Set_AP_VENDOR_SPECIFIC_IE() 3554: Unknown OUIType = 9
old = 10
[1905D[ 53.358671] 7981@C12L1,set_wapp_cmm_ie() 3450: Unknown IE(EID = 111)
aemon][map_read_[ 53.366438] 7981@C12L1,set_wapp_cmm_ie() 3450: Unknown IE(EID = 110)
config_file] Eth[ 53.374061] 7981@C12L1,Set_AP_VENDOR_SPECIFIC_IE() 3554: Unknown OUIType = 16
OnboardingFlag =[ 53.382278] do_map_set_ctl==>cmd(1905)
1
[1905Daemon][ 53.387211] do_map_set_ctl==>almac(54:4d:d4:71:cf:d8)
[map_read_config[ 53.393623] sp update own almac to54:4d:d4:71:cf:d8
_file] lan = eth[ 53.400220] 7981@C12L1,Set_AP_VENDOR_SPECIFIC_IE() 3554: Unknown OUIType = 9
1
[1905Daemon][[ 53.408627] 7981@C12L1,set_wapp_cmm_ie() 3450: Unknown IE(EID = 111)
map_read_config_[ 53.417011] 7981@C12L1,set_wapp_cmm_ie() 3450: Unknown IE(EID = 110)
file] lan = lan1
[1905Daemon][map_read_config_file] lan = lan2
[1905Daemon][map_read_config_file] lan = lan3
[1905Daemon][map_read_config_file] wan = eth1
[1905Daemon][map_read_config_file] set discovery_cnt to defaut value(11)
cmdu_in[ 53.443854] Set_Fh_Bss_Proc ra0 wdev->MAPCfg.DevOwnRole 0x0
it set send buff[ 53.450317] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=21, DfsTime=4294692984,Tmp_time=4294720680
er size 425984
cmdu_init set recv buffer size 425984
[1905Daemon][cmdu_init] br mac addr 54:4d:d4:71:cf:d8_1905_interface_open_sock set send buffer size 425984
_1905_interfa[ 53.475795] Set_Fh_Bss_Proc ra0 wdev->MAPCfg.DevOwnRole 0x20
ce_open_sock set recv buffer size 425984
[1905Daemon][_1905_interface_set_sock_[ 53.487849] 7981@C12L1,RTMPAPPrivIoctlSet() 3567: IOCTL::(iwpriv) Command not Support [MapChannelEn=1]
buf] alloc 1905 sock_buf :20480!
[1905Daemon][lldpdu_init] create lldpdu on eth1-sock(12) success
[1905Daemon][ 53.506624] Set_Fh_Bss_Proc ra1 wdev->MAPCfg.DevOwnRole 0x0
[lldpdu_init] create lldpdu on lan1-sock(13) success
[1905Daemon][lldpdu_init] create lldpdu on lan2-sock(14) success
[1905Daemon][lldpdu_init] create lldpdu on lan3-sock(15) success[ 53.534397] Set_Fh_Bss_Proc ra1 wdev->MAPCfg.DevOwnRole 0x20
[ 53.547399] 7981@C12L1,RTMPAPPrivIoctlSet() 3567: IOCTL::(iwpriv) Command not Support [MapChannelEn=1]
[1905Daemon][lldpdu_init] create lldpdu on eth1-sock(16) success
[1905Daemon][read_config_file] br_lan=br-lan
[1905Daemon][parse_eth_lan_interface] lan_interface[0]=eth1
[1905Daemon][parse_eth_lan_interface] lan_interface[1]=lan1
[1905Daemon][parse_eth_lan_interface] lan_interface[2]=lan2
[1905Daemon][parse_eth_la[ 53.584142] Set_Fh_Bss_Proc rax0 wdev->MAPCfg.DevOwnRole 0x0
n_interface] lan_interface[3]=lan3
[ 53.597204] traffic separation is offn_interface[4]=eth1
[1905Daemon][read_config_file] unknown config line lan_vid
[19[ 53.606565] Set_Fh_Bss_Proc rax0 wdev->MAPCfg.DevOwnRole 0x20
05Daemon][read_config_file] unknown config line [ 53.616971] set wan(54:4D:D4:71:CF:D8) to disable vlan tag check successfully
wan_vid
[1905Da[ 53.625389] ----->free map device rcu 000000004b4ee2ec
emon][read_config_file] parse ext phy port
[1905Daemon][get_port_no] eth1 (1)
[ 53.637112] traffic separation is on
[1905Daemon][get[ 53.640211] 7981@C12L1,RTMPAPPrivIoctlSet() 3567: IOCTL::(iwpriv) Command not Support [MapChannelEn=1]
_port_no] lan1 (2)
[1905Daemon][get_port_no] lan2 (3)
[1905Daemon][get_port_no] lan3 (4)
[1905Daemon][get_port_no] eth1 (1)
[1905Daemon][eth_layer_port_init] MAX_LAN_PORT_NUM=7
[1905Daemon][eth_layer_port_init] init eth_data[0]=0
[190[ 53.672178] handle_ts_default_8021q vid=4095, pcp=0
5Daemon][eth_lay[ 53.678528] ts policy number=0
er_port_init] init eth_data[1]=1[ 53.685568] Set_Fh_Bss_Proc rax1 wdev->MAPCfg.DevOwnRole 0x0
[1905Daemon][eth_layer_port_init] init eth_dat[ 53.694378] Set_Fh_Bss_Proc rax1 wdev->MAPCfg.DevOwnRole 0x20
a[2]=2
[1905Daemon][eth_layer_port_init] init eth_data[3]=3
[1905Daemon][eth_layer_port_init] init eth_data[4]=4
[1905Daemon][eth_layer_port_init] init eth_d[ 53.713967] 7981@C12L1,RTMPAPPrivIoctlSet() 3567: IOCTL::(iwpriv) Command not Support [MapChannelEn=1]
ata[5]=5
[1905Daemon][eth_layer_port_init] init eth_data[6]=6
[1905Daemon][eth_layer_port_init] lan_port=0000000f, wan_port=00000010
[1905Daemon][eth_layer_port_init] assign eth_data[0]=0
[1905Daemon][eth_layer_port_init] assign eth_data[1]=1
[1905Daemon][eth_layer_port_init] assign eth_data[2]=2
[1905Daemon][eth_layer_port_init] assign eth_data[3]=3
[1905Daemon][eth_layer_port_init] lan_finished=0 j=4
[1905Daemon][eth_layer_port_init] assign eth_data[4]=4 wan_port = true
[1905Daemon][update_mapfilter_wan_tag] set wan(eth1) to enable ts vlan tag check
[1905Daemon][map_dpp_read_keys] open MAP keys file (/etc/map/1905_dpp_keys.txt)
[1905Daemon][map_dpp_read_keys] no netAccessKey specified
[1905Daemon][map_dpp_read_keys] no CsignKey specified
[1905Daemon][map_dpp_read_keys] no connector specified
[1905Daemon][wpa_init] init wpa parameter as Agent.
[1905Daemon][wpa_init] success
[1905Daemon][main] p1905_Manager Daemon Running
[1905Daemon][_1905_notify_ts_setting] fh_count=0
[1905Daemon][_1905_interface_send] send msg to notify mapd change recv buffer size:107 (input buf len:107, peer:0, default:0)
[1905Daemon][_1905_interface_send] notify 1905 change recv buffer size msg fail, drop msg (type:49)
map rm hnat session cmd:
***************************
cat /sys/kernel/debug/hnat/hnat_entry | while read line;do line_num=$(echo $line | awk -F "(" '{print $2}' | awk -F ")" '{print $1}'); [ -n "$line_num" ] && echo "3 $line_num">/sys/kernel/debug/hnat/hnat_entry && usleep 1000;done
***************************
[ 54.489828] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=22, DfsTime=4294692984,Tmp_time=4294721720
[1905Daemon][eth_layer_port_data_update_and_notify] [TOPO]port [0] DOWN
[1905Daemon][update_topology_tree] [TOPO]root leaf not exist, could not update topology tree
[1905Daemon][eth_layer_port_data_update_and_notify] [TOPO]port [1] DOWN
[1905Daemon][update_topology_tree] [TOPO]root leaf not exist, could not update topology tree
[1905Daemon][eth_layer_port_data_update_and_notify] [TOPO]port [2] DOWN
[1905Daemon][update_topology_tree] [TOPO]root leaf not exist, could not update topology tree
[1905Daemon][eth_layer_port_data_update_and_notify] [TOPO]port [3] DOWN
[1905Daemon][update_topology_tree] [TOPO]root leaf not exist, could not update topology tree
[1905Daemon][eth_layer_port_data_update_and_notify] [TOPO]port [4] DOWN
[1905Daemon][update_topology_tree] [TOPO]root leaf not exist, could not update topology tree
[1905Daemon][eth_layer_port_data_update_and_notify] [TOPO]port [5] DOWN
[1905Daemon][update_topology_tree] [TOPO]root leaf not exist, could not update topology tree
[1905Daemon][eth_layer_port_data_update_and_notify] [TOPO]port [6] DOWN
[1905Daemon][update_topology_tree] [TOPO]root leaf not exist, could not update topology tree
[mapd][ch_clear_mesh_client_status][3247][ch]rm file /var/run/cmdc_mesh_client_status
[mapd][mapd_init][3301]DB NAME=./client_db.txt
[mapd][mapd_init][3308]Man Daemon XX version: v3.0.2.0
[mapd][mapd_init][3338]Succesfully connected to WAPPD
[mapd][mapd_set_1905_cli_sock_buf][1117]alloc 1905 cli sock_buf :15360 success!
[mapd][mapd_init][3346]Succesfully connected to 1905
[_1905_interface_ctrl_request]send msg to notify 1905 change recv buffer size:235 (input cmd len:235, peer:0, default:0)
[1905Daemon][map_event_handler] receive LIB_SYNC_RECV_BUF_SIZE (notify len:235, peer len:15360) from mapd, own real len:20480, default len:20480
[1905Daemon][_1905_interface_set_sock_buf] alloc 1905 sock_buf :20480!
[1905Daemon][map_event_handler] change own real len success:20480
[1905Daemon][map_event_handler] change peer len success:15360
[1905Daemon][_1905_send_sync_recv_buf_size_rsp] _1905_SYNC_RECV_BUF_SIZE_RSP_EVENT send to mapd success, change_len:20480, rsp:1
[_1905_Sync_Recv_Buf_Size]LIB_SYNC_RECV_BUF_SIZE send to 1905 success (change len:235, own len:15360)
[_1905_interface_ctrl_request]receive the _1905_SYNC_RECV_BUF_SIZE_RSP_EVENT from 1905
[_1905_interface_ctrl_request]change buf size success len:20480, rsp :1
[_1905_interface_ctrl_request]send cmd(type:247,len:235)to 1905 success after adjust recv sock buf len
[1905Daemon][init_wireless_interface] itf name = ra0
[1905Daemon][init_wireless_interface] itf name = ra1
[1905Daemon][init_wireless_interface] itf name = apcli0
[1905Daemon][init_wireless_interface] itf name = rax0
[1905Daemon][init_wireless_interface] itf name = rax1
[1905Daemon][init_wireless_interface] itf name = apclix0
[1905Daemon][init_interface_socket] sock_inf_recv_1905[i] socket is exist
[1905Daemon][init_interface_socket] sock_inf_recv_1905[i] socket is exist
[1905Daemon][init_interface_socket] sock_inf_recv_1905[i] socket is exist
[1905Daemon][init_interface_socket] sock_inf_recv_1905[i] socket is exist
[1905Daemon][init_interface_socket] sock_inf_recv_1905[i] socket is exist
[mapd][mapd_init][3353]Wapp wireless interface init success
[mapd][mapd_init_steer_params][2993]ChPlanningChUtilThresh_24G=70
[mapd][mapd_init_steer_params][3001]ChPlanningChUtilThresh_5GL=80
[mapd][mapd_init_steer_params][3022]ChPlanningEDCCAThresh_24G=200
[mapd][mapd_init_steer_params][3029]ChPlanningEDCCAThresh_5GL=200
[mapd][mapd_init_steer_params][3036]ChPlanningOBSSThresh_24G=200
[mapd][mapd_init_steer_params][3043]ChPlanningOBSSThresh_5GL=200
[mapd][mapd_init_steer_params][3061]ChPlanningR2MonitorTimeoutSecs=300
[mapd][mapd_init_steer_params][3068]ChPlanningR2MonitorProhibitSecs=900
[mapd][mapd_init_steer_params][3075]ChPlanningR2MetricReportingInterval=10
[mapd][mapd_init_steer_params][3082]ChPlanningR2MinScoreMargin=10
[mapd][mapd_init_steer_params][3091]M[ 55.280816] do_map_set_ctl==>cmd(1905)
etricRepIntv=5
[ 55.285054] do_map_set_ctl==>almac(54:4d:d4:71:cf:d8)
[mapd][mapd_init[ 55.291477] sp update own almac to54:4d:d4:71:cf:d8
_steer_params][3108]init rssi bandsteering rssi_24G:-55 rssi_5G:-70
[mapd][mapd_client_db_read][70]Failed to open DB file './client_db.txt', error: No such file or directory
[mapd][create_1905_device][5386]one 1905 device created
[1905Daemon][lldpdu_init] open lldpdu socket is exist
[1905Daemon][lldpdu_init] open lldpdu socket is exist
[1905Daemon][lldpdu_init] open lldpdu socket is exist
[1905Daemon][lldpdu_init] open lldpdu socket is exist
[1905Daemon][lldpdu_init] open lldpdu socket is exist
[1905Daemon][lldpdu_init] create lldpdu on ra0-sock(28) success
[1905Daemon][lldpdu_init] create lldpdu on ra1-sock(29) success
[1905Daemon][lldpdu_init] create lldpdu on apcli0-sock(30) success
[1905Daemon][lldpdu_init] create lldpdu on rax0-sock(31) success
[1905Daemon][lldpdu_init] create lldpdu on rax1-sock(32) success
[1905Daemon][lldpdu_init] create lldpdu on apclix0-sock(33) success
[1905Daemon][set_bss_config_priority_by_str] bss intf(ra0) priority=1
[1905Daemon][set_bss_config_priority_by_str] bss intf(ra1) priority=2
[1905Daemon][set_bss_config_priority_by_str] bss intf(ra2) not exist in local interface
[1905Daemon][set_bss_config_priority_by_str] bss intf(ra2) priority=3
[1905Daemon][set_bss_config_priority_by_str] bss intf(ra3) not exist in local interface
[1905Daemon][set_bss_config_priority_by_str] bss intf(ra3) priority=4
[1905Daemon][set_bss_config_priority_by_str] bss intf(apcli0) priority=5
[1905Daemon][set_bss_config_priority_by_str] bss intf(rax0) priority=6
[1905Daemon][set_bss_config_priority_by_str] bss intf(rax1) priority=7
[1905Daemon][set_bss_config_priority_by_str] bss intf(rax2) not exist in local interface
[1905Daemon][set_bss_config_priority_by_str] bss intf(rax2) priority=8
[1905Daemon][set_bss_config_priority_by_str] bss intf(rax3) not exist in local interface
[1905Daemon][set_bss_config_priority_by_str] bss intf(rax3) priority=9
[1905Daemon][set_bss_config_priority_by_str] bss intf(apclix0) priority=10
[1905Daemon][common_info_init] reset almac(br) to 54:4d:d4:71:cf:d8
[1905Daemon][common_info_init] eth1 is eth interface; enable all tx rx
[1905Daemon][common_info_init] lan1 is eth interface; enable all tx rx
[1905Daemon][common_info_init] lan2 is eth interface; enable all tx rx
[1905Daemon][common_info_init] lan3 is eth interface; enable all tx rx
[1905Daemon][common_info_init] eth1 is eth interface; enable all tx rx
[ 55.537799] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=23, DfsTime=4294692984,Tmp_time=4294722768
[mapd][topo_srv_init_own_1905_info][5352]topo_srv_init_own_1905_info
[0] ifname:ra0 mac 54:4d:d4:71:cf:d9type=00, band=1
[1] ifname:ra1 mac 56:4d:d4:11:cf:d9type=00, band=1
[2] ifname:apcli0 mac 52:4d:d4:71:cf:d9type=01, band=1
[3] ifname:rax0 mac 54:4d:d4:71:cf:datype=00, band=2
[4] ifname:rax1 mac 56:4d:d4:51:cf:datype=00, band=2
[5] ifname:apclix0 mac 5e:4d:d4:71:cf:d9type=01, band=2
[mapd][update_apcli_info_in1905][547]peer_radio not found corresponding to identifier
[mapd][topo_srv_update_radio_info][7726][TOPO]radio id(00:00:00:00:01:00) ch(11) Op(81) band(0) max_tx_pwr(0)
[mapd][topo_srv_update_radio_info][7726][TOPO]radio id(00:00:00:00:01:01) ch(44) Op(129) band(0) max_tx_pwr(0)
[mapd][topo_srv_init_own_info][5716]radio (00:00:00:00:01:01) orignal_bw(3) opclass(129) ch(44)
[mapd][topo_srv_init_own_info][5716]radio (00:00:00:00:01:00) orignal_bw(0) opclass(81) ch(11)
[mapd][topo_srv_parse_wapp_scan_capab][1569]------------->
[mapd][topo_srv_update_cac_cap][155]MY device CAC Mode = 0
[mapd][topo_srv_update_cac_cap][155]MY device CAC Mode = 0
CACCapab - hexdump(len=26): 43 4e 01 00 00 00 00 01 01 02 00 00 00 41 02 80 01 3a 81 01 32 00 00 02 8a 00
[mapd][topo_srv_parse_wapp_r2_ap_cap][1588]------------->
R2ApCap - hexdump(len=4): 06 00 70 02
[mapd][topo_srv_update_channel_preference][9138][TOPO]chnl Pref for radio Ch(44) Op(129) band(0) max_tx_pwr(0) MAC 00:00:00:00:01:01
[mapd][topo_srv_update_metric_rep_intv_cap][7873]dev->metric_rep_interval: 60
[mapd][topo_srv_update_ap_wf6_cap][9419]wf6 tlv handling sr mode 0
WF6:MAPD:map_1905_Set_Ap_Wf6_Cap Ap capa calling 1905library func to send data to 1905
[mapd][wapp_usr_intf_parse_event][2373]DM:Solicited WAPP_AP_SPT_REUSE_REQ from WAPP: CONSUME
[1905Daemon][create_oper_bss] create operational bss(54:4d:d4:71:cf:da)almac(54:4d:d4:71:cf:d8) ssid=CMCC-s52j-5G
[1905Daemon][create_oper_bss] create operational bss(56:4d:d4:51:cf:da)almac(54:4d:d4:71:cf:d8) ssid=CMCC-MESH-CFD8-5G
[mapd][topo_srv_update_radio_info][7726][TOPO]radio id(00:00:00:00:01:00) ch(11) Op(81) band(0) max_tx_pwr(0)
[mapd][topo_srv_update_radio_info][7726][TOPO]radio id(00:00:00:00:01:01) ch(44) Op(129) band(2) max_tx_pwr(0)
[mapd][wlanif_handle_op_chan_info][1543]wlanif_handle_op_chan_info: Found already listed Radio with RUID=00:00:00:00:01:00
[mapd][wlanif_handle_op_chan_info][1543]wlanif_handle_op_chan_info: Found already listed Radio with RUID=00:00:00:00:01:01
[mapd][wlanif_handle_op_chan_info][1543]wlanif_handle_op_chan_info: Found already listed Radio with RUID=00:00:00:00:01:01
[mapd][topo_srv_update_channel_preference][9138][TOPO]chnl Pref for radio Ch(44) Op(129) band(2) max_tx_pwr(0) MAC 00:00:00:00:01:01
[mapd][topo_srv_update_metric_rep_intv_cap][7873]dev->metric_rep_interval: 60
[mapd][topo_srv_update_ap_wf6_cap][9419]wf6 tlv handling sr mode 0
WF6:MAPD:map_1905_Set_Ap_Wf6_Cap Ap capa calling 1905library func to send data to 1905
[mapd][wapp_usr_intf_parse_event][2373]DM:Solicited WAPP_AP_SPT_REUSE_REQ from WAPP: CONSUME
[mapd][topo_srv_update_channel_preference][9138][TOPO]chnl Pref for radio Ch[ 56.585803] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=24, DfsTime=4294692984,Tmp_time=4294723816
(11) Op(81) band(0) max_tx_pwr(0) MAC 00:00:00:00:01:00
[mapd][topo_srv_update_metric_rep_intv_cap][7873]dev->metric_rep_interval: 60
[mapd][topo_srv_update_ap_wf6_cap][9419]wf6 tlv handling sr mode 0
WF6:MAPD:map_1905_Set_Ap_Wf6_Cap Ap capa calling 1905library func to send data to 1905
[mapd][wapp_usr_intf_parse_event][2373]DM:Solicited WAPP_AP_SPT_REUSE_REQ from WAPP: CONSUME
[1905Daemon][create_oper_bss] create operational bss(54:4d:d4:71:cf:d9)almac(54:4d:d4:71:cf:d8) ssid=CMCC-s52j
[1905Daemon][create_oper_bss] create operational bss(56:4d:d4:11:cf:d9)almac(54:4d:d4:71:cf:d8) ssid=CMCC-GUIDE-LINK
[mapd][topo_srv_update_radio_info][7726][TOPO]radio id(00:00:00:00:01:00) ch(11) Op(81) band(1) max_tx_pwr(0)
[mapd][topo_srv_update_radio_info][7726][TOPO]radio id(00:00:00:0[ 56.665610] dynamic load balance is off
0:01:01) ch(44) Op(129) band(2) max_tx_pwr(0)
[mapd][wlanif_handle_op_chan_info][1543]wlanif_handle_op_chan_info: Found already listed Radio wi[ 56.669793] mapfilter: Start drop the specific ip packets now !!
[ 56.669793]
th RUID=00:00:00[ 56.681682] ----->free map device rcu 00000000197a9182
:00:01:00
[mapd[ 56.696346] ----->free map device rcu 00000000189fa2e6
][wlanif_handle_[ 56.702886] ----->free map device rcu 0000000003f930d2
op_chan_info][15[ 56.709414] ----->free map device rcu 000000000dca3e43
43]wlanif_handle_op_chan_info: Found already listed Radio with RUID=00:00:00:00:01:01
[mapd][wlanif_handle_op_chan_info][1543]wlanif_handle_op_chan_info: Found already listed Radio with RUID=00:00:00:00:01:01
[mapd][topo_srv_update_channel_preference][9138][TOPO]chnl Pref for radio Ch(11) Op(81) band(1) max_tx_pwr(0) MAC 00:00:00:00:01:00
[mapd][topo_srv_update_metric_rep_intv_cap][7873]dev->metric_rep_interval: 60
[mapd][topo_srv_update_ap_wf6_cap][9419]wf6 tlv handling sr mode 0
WF6:MAPD:map_1905_Set_Ap_Wf6_Cap Ap capa calling 1905library func to send data to 1905
[mapd][wapp_usr_intf_parse_event][2373]DM:Solicited WAPP_AP_SPT_REUSE_REQ from WAPP: CONSUME
[mapd][topo_srv_update_radio_config_status][12291]radio ID 00:00:00:00:01:01 Ch(44) Op(129) band(2) Status: NOT CONFIGURED
[mapd][topo_srv_update_radio_config_status][12291]radio ID 00:00:00:00:01:00 Ch(11) Op(81) band(1) Status: NOT CONFIGURED
[mapd][ap_selection_update_vend_ie][212]con Connect=0, root_distance=0
[mapd][ap_selection_update_vend_ie][223]failed to find any bh entry
mode=1
[mapd][mapd_read_config_file][8354]router mode
[mapd][parse_eth_lan_interface][8001]lan_interface[0]=eth1
[mapd][parse_eth_lan_interface][8001]lan_interface[1]=lan1
[mapd][parse_eth_lan_interface][8001]lan_interface[2]=lan2
[mapd][parse_eth_lan_interface][8001]lan_interface[3]=lan3
[mapd][mapd_read_config_file][8095]wan interface is eth1
[mapd][mapd_read_config_file][8100]device role is 0
ChPlanningInitTimeout=120NtwrkOptConnectWaitTime=45NtwrkOptDisconnectWaitTime=45[mapd][mapd_read_config_file][8466]BandSwitchTime = 120
2G ScanThreshold=-885G ScanThreshold=-88[mapd][mapd_read_config_file][8123]Channel Planning R2 Enabled =1 , R1 ch_planning_enabled 0
NetworkOptimizationEnabled=0[mapd][mapd_read_config_file][8445]AutoBHSwitching = 1
DhcpCtl=0
[mapd][mapd_read_config_file][8341]disable
[mapd][mapd_read_config_file][8345] dhcp_ctl in config file is : disable !
[mapd][mapd_read_config_file][8472]ThirdPartyConnection = 0
[mapd][mapd_read_config_file][8529]Default max_allowed_scan = 5
[mapd][mapd_read_config_file][8537]bh_steer_timeout = 120
NtwrkOptPostCACTriggerTime=30NetworkOptPrefer5Gover2G=0NetworkOptPrefer5Gover2GRetryCnt=0[mapd][mapd_read_config_file][8132]Channel Planning R2 Enabled_bw =1
NtwrkOptDataCollectionTime=300ChPlanningScanValidTime=14400NetOptUserSetPriority=0[mapd][mapd_read_config_file][8548]EthOnboardingFlag =1
[mapd][mapd_read_config_file][8636]going to check 1905 map version
[mapd][mapd_read_config_file][8648]for 1905 cfg
[mapd][mapd_read_config_file][8661]it is R2
[mapd][mapd_read_config_file][8664]1905dev own is R2
[mapd][mapd_read_config_file][8695]Network Optimization Enable 0
[mapd][mapd_read_config_file][8697]conn 45 dis 45
[mapd][mapd_read_config_file][8700]Init 56
[mapd][mapd_read_config_file][8751]apclix0 BH priority = 1
[mapd][mapd_read_config_file][8755]apcli0 BH priority = 0
[mapd][mapd_init][3387]map glbl dev:2
[mapd][mapd_init][3412][AUTO_ROLE] role(DEVICE_ROLE_UNCONFIGURED), set drop flag to mapfilter
[mapd][network_opt_init][567][NETOPT] conn 45 dis 45
[mapd][parse_supported_service_tlv][5819][TOPO]reset role to 2 for dev 54:4d:d4:71:cf:d8
[mapd][topo_srv_get_controller_device][870][TOPO]controller not found in MAP dev list
[1905Daemon][append_akm_suite_cap_tlv] Num BH AKM Suite 4
[1905Daemon][append_akm_suite_cap_tlv] suite type 4, oui 000fac
[1905Daemon][append_akm_suite_cap_tlv] suite type 4, oui 000fac
[1905Daemon][append_akm_suite_cap_tlv] suite type 4, oui 000fac
[1905Daemon][append_akm_suite_cap_tlv] suite type 4, oui 506f9a
[1905Daemon][append_akm_suite_cap_tlv] Num FH AKM Suite 6
[1905Daemon][append_akm_suite_cap_tlv] suite type 6, oui 000fac
[1905Daemon][append_akm_suite_cap_tlv] suite type 6, oui 000fac
[1905Daemon][append_akm_suite_cap_tlv] suite type 6, oui 000fac
[1905Daemon][append_akm_suite_cap_tlv] suite type 6, oui 000fac
[1905Daemon][append_akm_suite_cap_tlv] suite type 6, oui 000fac
[1905Daemon][append_akm_suite_cap_tlv] suite type 6, oui 506f9a
[mapd][topo_srv_get_controller_device][870][TOPO]controller not found in MAP dev list
[1905Daemon][fill_send_tlv] receive new send tlv, replace old one(1841288967)
[ 57.649796] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=25, DfsTime=4294692984,Tmp_time=4294724880
[ 58.121272] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8bee] return!!!
[ 58.139595] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 58.155540] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 58.184746] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8bee] return!!!
[ 58.197722] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 58.234916] 7981@C12L1,rt28xx_ap_ioctl() 866: interface is down, cmd [8be2] return!!!
[ 58.324389] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8bee] return!!!
[ 58.361329] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8bee] return!!!
[ 58.705808] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=26, DfsTime=4294692984,Tmp_time=4294725936
[ 59.753842] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=27, DfsTime=4294692984,Tmp_time=4294726984
[ 60.801804] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=28, DfsTime=4294692984,Tmp_time=4294728032
[ 61.849854] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=29, DfsTime=4294692984,Tmp_time=4294729080
[ 62.901821] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=30, DfsTime=4294692984,Tmp_time=4294730132
[ 63.949784] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=31, DfsTime=4294692984,Tmp_time=4294731180
[ 64.997785] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=32, DfsTime=4294692984,Tmp_time=4294732228
[ 66.049790] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=33, DfsTime=4294692984,Tmp_time=4294733280
[ 67.097793] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=34, DfsTime=4294692984,Tmp_time=4294734328
[ 68.145778] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=35, DfsTime=4294692984,Tmp_time=4294735376
[ 69.193848] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=36, DfsTime=4294692984,Tmp_time=4294736424
[ 70.241796] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=37, DfsTime=4294692984,Tmp_time=4294737472
[ 71.289800] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=38, DfsTime=4294692984,Tmp_time=4294738520
[ 72.341798] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=39, DfsTime=4294692984,Tmp_time=4294739572
[ 73.389828] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=40, DfsTime=4294692984,Tmp_time=4294740620
[ 74.437830] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=41, DfsTime=4294692984,Tmp_time=4294741668
[ 75.485794] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=42, DfsTime=4294692984,Tmp_time=4294742716
[ 76.533833] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=43, DfsTime=4294692984,Tmp_time=4294743764
[ 77.581796] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=44, DfsTime=4294692984,Tmp_time=4294744812
[ 78.629798] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=45, DfsTime=4294692984,Tmp_time=4294745860
[ 79.677797] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=46, DfsTime=4294692984,Tmp_time=4294746908
[ 80.725799] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=47, DfsTime=4294692984,Tmp_time=4294747956
[ 81.777797] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=48, DfsTime=4294692984,Tmp_time=4294749008
[ 82.825791] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=49, DfsTime=4294692984,Tmp_time=4294750056
[ 83.873826] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=50, DfsTime=4294692984,Tmp_time=4294751104
[ 84.921801] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=51, DfsTime=4294692984,Tmp_time=4294752152
[ 85.969800] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=52, DfsTime=4294692984,Tmp_time=4294753200
[ 87.017794] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=53, DfsTime=4294692984,Tmp_time=4294754248
[ 88.065818] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=54, DfsTime=4294692984,Tmp_time=4294755296
[ 89.113791] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=55, DfsTime=4294692984,Tmp_time=4294756344
[ 90.161800] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=56, DfsTime=4294692984,Tmp_time=4294757392
[ 91.209828] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=57, DfsTime=4294692984,Tmp_time=4294758440
[ 92.257785] 7981@C08L3,APMlmePeriodicExec() 439: RDCount=58, DfsTime=4294692984,Tmp_time=4294759488
[ 92.266988] 7981@C23L3,DfsCacEndUpdate() 2951: [RDM] CAC end. Enable MAC TX.
[mapd][topo_srv_get_controller_device][870][TOPO]controller not found in MAP dev list
[mapd][topo_srv_parse_wapp_cac_completion_report][2050][CH_PLANNING]report cac comp status: 0, report channel: 44, op_class: 129
[mapd][topo_srv_parse_wapp_cac_completion_report][2119][CH_PLANNING]current CAC on channel: 0
[mapd][topo_srv_update_radio_info][7726][TOPO]radio id(00:00:00:00:01:00) ch(11) Op(81) band(1) max_tx_pwr(0)
[mapd][topo_srv_update_radio_info][7726][TOPO]radio id(00:00:00:00:01:01) ch(44) Op(129) band(2) max_tx_pwr(0)
[mapd][wlanif_handle_op_chan_info][1543]wlanif_handle_op_chan_info: Found already listed Radio with RUID=00:00:00:00:01:00
[mapd][wlanif_handle_op_chan_info][1543]wlanif_handle_op_chan_info: Found already listed Radio with RUID=00:00:00:00:01:01
[mapd][wlanif_handle_op_chan_info][1543]wlanif_handle_op_chan_info: Found already listed Radio with RUID=00:00:00:00:01:01
[mapd][topo_srv_get_controller_device][870][TOPO]controller not found in MAP dev list
[1905Daemon][fill_send_tlv] receive new send tlv, replace old one(149614025)
[mapd][topo_srv_get_controller_device][870][TOPO]controller not found in MAP dev list
[1905Daemon][fill_send_tlv] receive new send tlv, replace old one(347646686)
![图片[6]-中国移动CMCC RAX3000Me路由器刷机教程openwrt+恢复原厂+救砖TTL-勇爱设计Netwrok](https://www.getpicion.com/wp-content/uploads/2026/07/image-35.png)
#TTL菜单调用
bootmenu#uboot ttl模式查看分区
MT7981> mtd list
List of MTD devices:
* spi-nand0
- device: spi_nand@0
- parent: spi@1100a000
- driver: spi_nand
- path: /spi@1100a000/spi_nand@0
- type: NAND flash
- block size: 0x20000 bytes
- min I/O: 0x800 bytes
- OOB size: 64 bytes
- OOB available: 62 bytes
- 0x000000000000-0x000008000000 : "spi-nand0"
- 0x000000000000-0x000000100000 : "bl2"
- 0x000000100000-0x000000180000 : "u-boot-env"
- 0x000000180000-0x000000380000 : "factory"
- 0x000000380000-0x000000580000 : "fip"
- 0x000000580000-0x000007780000 : "ubi"
MT7981> mtdparts
device spi-nand0 <spi-nand0>, # parts = 5
#: name size offset mask_flags
0: bl2 0x00100000 0x00000000 0
1: u-boot-env 0x00080000 0x00100000 0
2: factory 0x00200000 0x00180000 0
3: fip 0x00200000 0x00380000 0
4: ubi 0x07200000 0x00580000 0
active partition: spi-nand0,0 - (bl2) 0x00100000 @ 0x00000000
defaults:
mtdids : spi-nand0=spi-nand0
mtdparts: spi-nand0:1024k(bl2),512k(u-boot-env),2048k(factory),2048k(fip),116736k(ubi)
MT7981> printenv
arch=arm
baudrate=115200
board=mt7981
board_name=mt7981
bootconf=config-1#mt7981b-cmcc-rax3000m-nand
bootdelay=3
bootmenu_0=Startup system (Default)=mtkboardboot
bootmenu_1=Upgrade firmware=mtkupgrade fw
bootmenu_2=Upgrade ATF BL2=mtkupgrade bl2
bootmenu_3=Upgrade ATF FIP=mtkupgrade fip
bootmenu_4=Upgrade single image=mtkupgrade simg
bootmenu_5=Load image=mtkload
cpu=armv8
env_fdt_path=/config/environment
ethaddr=7e:19:17:f2:c2:25
fdtcontroladdr=5ffc44c0
ipaddr=192.168.1.1
loadaddr=0x46000000
mtddevname=bl2
mtddevnum=0
mtdids=spi-nand0=spi-nand0
mtdparts=spi-nand0:1024k(bl2),512k(u-boot-env),2048k(factory),2048k(fip),116736k(ubi)
netmask=255.255.255.0
partition=spi-nand0,0
serverip=192.168.1.2
soc=mediatek
stderr=serial@11002000
stdin=serial@11002000
stdout=serial@11002000
vendor=mediatek
Environment size: 801/126971 bytes#openwrt-nand开机过程
F0: 102B 0000
FA: 1040 0000
FA: 1040 0000 [0200]
F9: 0000 0000
V0: 0000 0000 [0001]
00: 0000 0000
BP: 2400 0041 [0000]
G0: 1190 0000
EC: 0000 0000 [1000]
T0: 0000 024F [010F]
Jump to BL
NOTICE: BL2: v2.7(release):91da831ad-dirty
NOTICE: BL2: Built : 20:53:04, Sep 19 2024
NOTICE: WDT: disabled
NOTICE: EMI: Using DDR3 settings
NOTICE: EMI: Detected DRAM size: 512MB
NOTICE: EMI: complex R/W mem test passed
NOTICE: CPU: MT7981 (1300MHz)
NOTICE: PP COPY 0 CRC read: 0x534a, compute: 0x4a53
NOTICE: FUDAN Micro crc != crc_compute,Need change CRC Byte[254][255]
NOTICE: SPI_NAND parses attributes from parameter page.
NOTICE: SPI_NAND Detected ID 0xa1
NOTICE: Page size 2048, Block size 131072, size 134217728
NOTICE: Initializing NMBM ...
NOTICE: Signature found at block 1023 [0x07fe0000]
NOTICE: First info table with writecount 0 found in block 960
NOTICE: Second info table with writecount 0 found in block 963
NOTICE: NMBM has been successfully attached in read-only mode
NOTICE: BL2: Booting BL31
INFO: Total CPU count: 2
INFO: MCUSYS: L2C share 256K --> 0K
INFO: Disable NETSYS SRAM remapping
INFO: SPMC: Changed to SPMC mode
NOTICE: BL31: v2.12.0(release):20240123-97-g629d6123b-dirty
NOTICE: BL31: Built : 18:26:16, Mar 20 2025
INFO: GICv3 without legacy support detected.
INFO: ARM GICv3 driver initialized in EL3
INFO: Maximum SPI INTID supported: 671
INFO: [DEVAPC] devapc_init done
INFO: [MPU](Region0)sa:0x0300, ea:0x0301
INFO: [MPU](Region0)apc0:0x80b6db69, apc1:0x00b6db6d
INFO: [MPU](Region1)sa:0x0000, ea:0x0000
INFO: [MPU](Region1)apc0:0x00000000, apc1:0x00000000
INFO: [MPU](Region2)sa:0x0000, ea:0x0000
INFO: [MPU](Region2)apc0:0x00000000, apc1:0x00000000
INFO: [MPU](Region3)sa:0x0000, ea:0x0000
INFO: [MPU](Region3)apc0:0x00000000, apc1:0x00000000
INFO: BL31: Initializing runtime services
INFO: Secondary bootloader is AArch64
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0x41e00000
INFO: SPSR = 0x3c9
U-Boot 2022.07 (Mar 20 2025 - 18:26:12 +0800)
CPU: MediaTek MT7981
Model: mt7981-cmcc-rax3000me-ddr3
DRAM: 512 MiB
Core: 28 devices, 15 uclasses, devicetree: embed
Loading Environment from UBI... spi-nand: spi_nand spi_nand@0: FMSH SPI NAND was found.
spi-nand: spi_nand spi_nand@0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 64
Read 126976 bytes from volume ubootenv to 000000005f7c1c80
Read 126976 bytes from volume ubootenv2 to 000000005f7e0cc0
*** Warning - bad CRC, using default environment
In: serial@11002000
Out: serial@11002000
Err: serial@11002000
Net:
Warning: ethernet@15100000 (eth0) using random MAC address - 6e:43:f6:32:f7:32
eth0: ethernet@15100000
*** U-Boot Boot Menu ***
1. Startup system (Default)
2. Upgrade firmware
3. Upgrade ATF BL2
4. Upgrade ATF FIP
5. Upgrade single image
6. Load image
0. U-Boot console
Press UP/DOWN to move, ENTER to select, ESC/CTRL+C to quit
Reading from volume 'fit' to 0x46000000, size 0x0 ... OK
## Loading kernel from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-6.12.94
Type: Kernel Image
Compression: gzip compressed
Data Start: 0x46001000
Data Size: 8242049 Bytes = 7.9 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x44000000
Entry Point: 0x44000000
Hash algo: crc32
Hash value: 53a0f2ba
Hash algo: sha1
Hash value: 53f20fbcb54562b3a2a22d80ad10337d23f1222b
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'fdt-1' fdt subimage
Description: ARM64 OpenWrt cmcc_rax3000me device tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x467de000
Data Size: 28329 Bytes = 27.7 KiB
Architecture: AArch64
Load Address: 0x43f00000
Hash algo: crc32
Hash value: d65f4a0f
Hash algo: sha1
Hash value: e0866bd1b3d375754c3d7a2360771a281c1ab7be
Verifying Hash Integrity ... crc32+ sha1+ OK
Loading fdt from 0x467de000 to 0x43f00000
## Loading fdt from FIT Image at 46000000 ...
Using 'mt7981b-cmcc-rax3000m-nand' configuration
Trying 'fdt-mt7981b-cmcc-rax3000m-nand' fdt subimage
Description: ARM64 OpenWrt cmcc_rax3000me device tree overlay mt7981b-cmcc-rax3000m-nand
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x467e6000
Data Size: 3696 Bytes = 3.6 KiB
Architecture: AArch64
Hash algo: crc32
Hash value: 2bc26a63
Hash algo: sha1
Hash value: 297f6b8f8b58988d97bae3eec05059bde3fb84c2
Verifying Hash Integrity ... crc32+ sha1+ OK
Booting using the fdt blob at 0x43f00000
## Loading loadables from FIT Image at 46000000 ...
Trying 'rootfs-1' loadables subimage
Description: ARM64 OpenWrt cmcc_rax3000me rootfs
Type: Filesystem Image
Compression: uncompressed
Data Start: 0x467e8000
Data Size: 9396224 Bytes = 9 MiB
Hash algo: crc32
Hash value: 5d279916
Hash algo: sha1
Hash value: 76b62e58db70bfe929c7d925e237fc08a7694378
Verifying Hash Integrity ... crc32+ sha1+ OK
Uncompressing Kernel Image
Loading Device Tree to 000000005f7f1000, end 000000005f7fa7c2 ... OK
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 6.12.94 (buildbot@buildbot.infra.immortalwrt.org) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 14.3.0 r37978-cd0a06bfd3fd) 14.3.0, GNU ld (GNU Binutils) 2.44) #0 SMP Thu Jul 2 01:40:04 2026
[ 0.000000] Machine model: CMCC RAX3000Me
[ 0.000000] OF: reserved mem: 0x0000000042ff0000..0x0000000042ffffff (64 KiB) map non-reusable ramoops@42ff0000
[ 0.000000] OF: reserved mem: 0x0000000043000000..0x000000004302ffff (192 KiB) nomap non-reusable secmon@43000000
[ 0.000000] OF: reserved mem: 0x0000000047c80000..0x0000000047d7ffff (1024 KiB) nomap non-reusable wmcpu-reserved@47c80000
[ 0.000000] OF: reserved mem: 0x0000000047d80000..0x0000000047dbffff (256 KiB) nomap non-reusable wo-emi@47d80000
[ 0.000000] OF: reserved mem: 0x0000000047dc0000..0x0000000047ffffff (2304 KiB) nomap non-reusable wo-data@47dc0000
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000040000000-0x0000000042ffffff]
[ 0.000000] node 0: [mem 0x0000000043000000-0x000000004302ffff]
[ 0.000000] node 0: [mem 0x0000000043030000-0x0000000047c7ffff]
[ 0.000000] node 0: [mem 0x0000000047c80000-0x0000000047ffffff]
[ 0.000000] node 0: [mem 0x0000000048000000-0x000000005fffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.1 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.5
[ 0.000000] percpu: Embedded 30 pages/cpu s82136 r8192 d32552 u122880
[ 0.000000] pcpu-alloc: s82136 r8192 d32552 u122880 alloc=30*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: GIC system register CPU interface
[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Kernel command line: root=/dev/fit0 rootwait
[ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 131072
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 0MB
[ 0.000000] software IO TLB: area num 2.
[ 0.000000] software IO TLB: mapped [mem 0x000000005fd54000-0x000000005fdd4000] (0MB)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2
[ 0.000000] RCU Tasks Trace: Setting shift to 1 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=2.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[ 0.000000] GICv3: 640 SPIs implemented
[ 0.000000] GICv3: 0 Extended SPIs implemented
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GICv3: GICv3 features: 16 PPIs
[ 0.000000] GICv3: GICD_CTRL.DS=0, SCR_EL3.FIQ=0
[ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns
[ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
[ 0.000235] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=130000)
[ 0.000245] pid_max: default: 32768 minimum: 301
[ 0.003178] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.003187] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.005316] cacheinfo: Unable to detect cache hierarchy for CPU 0
[ 0.006196] rcu: Hierarchical SRCU implementation.
[ 0.006204] rcu: Max phase no-delay instances is 1000.
[ 0.006389] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level
[ 0.006742] smp: Bringing up secondary CPUs ...
[ 0.007163] Detected VIPT I-cache on CPU1
[ 0.007212] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000
[ 0.007244] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.007339] smp: Brought up 1 node, 2 CPUs
[ 0.007345] SMP: Total of 2 processors activated.
[ 0.007347] CPU: All CPU(s) started at EL2
[ 0.007350] CPU features: detected: 32-bit EL0 Support
[ 0.007354] CPU features: detected: CRC32 instructions
[ 0.007378] alternatives: applying system-wide alternatives
[ 0.007528] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching
[ 0.007667] Memory: 486660K/524288K available (10496K kernel code, 1648K rwdata, 7260K rodata, 576K init, 336K bss, 35276K reserved, 0K cma-reserved)
[ 0.011284] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.011305] futex hash table entries: 512 (order: 3, 32768 bytes, linear)
[ 0.011370] 27648 pages in range for non-PLT usage
[ 0.011373] 519168 pages in range for PLT usage
[ 0.012620] pinctrl core: initialized pinctrl subsystem
[ 0.015049] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.015425] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations
[ 0.015451] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.015472] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 0.015910] thermal_sys: Registered thermal governor 'fair_share'
[ 0.015914] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.015917] thermal_sys: Registered thermal governor 'step_wise'
[ 0.015920] thermal_sys: Registered thermal governor 'user_space'
[ 0.015987] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.016052] ASID allocator initialised with 65536 entries
[ 0.016985] pstore: Using crash dump compression: deflate
[ 0.016990] pstore: Registered ramoops as persistent store backend
[ 0.016993] ramoops: using 0x10000@0x42ff0000, ecc: 0
[ 0.018902] /soc/interrupt-controller@c000000: Fixed dependency cycle(s) with /soc/interrupt-controller@c000000
[ 0.042803] cryptd: max_cpu_qlen set to 1000
[ 0.059003] SCSI subsystem initialized
[ 0.059155] libata version 3.00 loaded.
[ 0.062379] clocksource: Switched to clocksource arch_sys_counter
[ 0.064683] NET: Registered PF_INET protocol family
[ 0.064788] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.098263] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.098287] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.098297] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 0.098328] TCP bind hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 0.098425] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.098653] MPTCP token hash table entries: 512 (order: 2, 12288 bytes, linear)
[ 0.098763] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.098780] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.098995] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.099017] NET: Registered PF_XDP protocol family
[ 0.099027] PCI: CLS 0 bytes, default 64
[ 0.101401] workingset: timestamp_bits=46 max_order=17 bucket_order=0
[ 0.106725] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.106735] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.162383] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251)
[ 0.174402] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[ 0.178402] printk: legacy console [ttyS0] disabled
[ 0.198872] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 72, base_baud = 2500000) is a ST16650V2
[ 0.198920] printk: legacy console [ttyS0] enabled
[ 0.979271] random: crng init done
[ 0.985672] loop: module loaded
[ 0.991057] spi-nand spi0.0: Fudan Micro SPI NAND was found.
[ 0.996780] spi-nand spi0.0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 64
[ 1.005392] 5 fixed-partitions partitions found on MTD device spi0.0
[ 1.012018] Creating 5 MTD partitions on "spi0.0":
[ 1.016853] 0x000000580000-0x000007780000 : "ubi"
[ 1.084744] ubi0: default fastmap pool size: 45
[ 1.089278] ubi0: default fastmap WL pool size: 22
[ 1.094078] ubi0: attaching mtd0
[ 1.506967] ubi0: scanning is finished
[ 1.515989] ubi0 warning: ubi_eba_init: cannot reserve enough PEBs for bad PEB handling, reserved 18, need 20
[ 1.526650] ubi0: attached mtd0 (name "ubi", size 114 MiB)
[ 1.532142] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 1.539025] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 1.545807] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 1.552764] ubi0: good PEBs: 912, bad PEBs: 0, corrupted PEBs: 0
[ 1.558758] ubi0: user volume: 4, internal volumes: 1, max. volumes count: 128
[ 1.565975] ubi0: max/mean erase counter: 2/1, WL threshold: 4096, image sequence number: 0
[ 1.574316] ubi0: available PEBs: 0, total reserved PEBs: 912, PEBs reserved for bad PEB handling: 18
[ 1.583534] ubi0: background thread "ubi_bgt0d" started, PID 263
[ 1.584279] block ubiblock0_2: created from ubi0:2(fit)
[ 1.595048] 0x000000380000-0x000000580000 : "fip"
[ 1.601221] 0x000000180000-0x000000380000 : "factory"
[ 1.608033] 0x000000100000-0x000000180000 : "u-boot-env"
[ 1.614084] 0x000000000000-0x000000100000 : "bl2"
[ 2.259191] an8855-switch an8855-switch.2.auto: probe with driver an8855-switch failed with error -110
[ 2.274433] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc082000000, irq 75
[ 2.284402] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc082000000, irq 75
[ 2.294518] i2c_dev: i2c /dev entries driver
[ 2.300624] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0)
[ 2.310422] NET: Registered PF_INET6 protocol family
[ 2.316343] Segment Routing with IPv6
[ 2.320034] In-situ OAM (IOAM) with IPv6
[ 2.324020] NET: Registered PF_PACKET protocol family
[ 2.329089] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 2.342578] 8021q: 802.1Q VLAN Support v1.8
[ 2.366112] phy phy-soc:usb-phy@11e10000.1: type_sw - reg 0x218, index 0
[ 2.374100] FIT: Detected U-Boot 2022.07
[ 2.378032] FIT: Selected configuration: "config-1" (OpenWrt cmcc_rax3000me)
[ 2.385134] FIT: kernel sub-image 0x00001000..0x007dd380 "kernel-1" (ARM64 OpenWrt Linux-6.12.94)
[ 2.394991] FIT: flat_dt sub-image 0x007de000..0x007e4ea8 "fdt-1" (ARM64 OpenWrt cmcc_rax3000me device tree blob)
[ 2.406137] FIT: flat_dt sub-image 0x007e5000..0x007e5d83 "fdt-mt7981b-cmcc-rax3000m-emmc" (ARM64 OpenWrt cmcc_rax3000me device tree overlay mt7981b-cmcc-rax3000m-emmc)
[ 2.422050] FIT: flat_dt sub-image 0x007e6000..0x007e6e6f "fdt-mt7981b-cmcc-rax3000m-nand" (ARM64 OpenWrt cmcc_rax3000me device tree overlay mt7981b-cmcc-rax3000m-nand)
[ 2.437967] FIT: flat_dt sub-image 0x007e7000..0x007e7195 "fdt-mt7981b-cmcc-rax3000me-nousb" (ARM64 OpenWrt cmcc_rax3000me device tree overlay mt7981b-cmcc-rax3000me-nousb)
[ 2.454237] FIT: filesystem sub-image 0x007e8000..0x010ddfff "rootfs-1" (ARM64 OpenWrt cmcc_rax3000me rootfs)
[ 2.465277] block ubiblock0_2: mapped 1 uImage.FIT filesystem sub-image as /dev/fit0
[ 2.523328] mt7530-mdio mdio-bus:1f: configuring for fixed/2500base-x link mode
[ 2.532057] mt7530-mdio mdio-bus:1f: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 2.542044] mt7530-mdio mdio-bus:1f lan3 (uninitialized): PHY [mt7530-0:00] driver [MediaTek MT7531 PHY] (irq=79)
[ 2.563291] mt7530-mdio mdio-bus:1f lan2 (uninitialized): PHY [mt7530-0:01] driver [MediaTek MT7531 PHY] (irq=80)
[ 2.584330] mt7530-mdio mdio-bus:1f lan1 (uninitialized): PHY [mt7530-0:02] driver [MediaTek MT7531 PHY] (irq=81)
[ 2.596116] mtk_soc_eth 15100000.ethernet eth0: entered promiscuous mode
[ 2.602873] DSA: tree 0 setup
[ 2.636618] clk: Disabling unused clocks
[ 2.640821] PM: genpd: Disabling unused power domains
[ 2.649414] VFS: Mounted root (squashfs filesystem) readonly on device 259:0.
[ 2.656843] Freeing unused kernel memory: 576K
[ 2.661373] Run /sbin/init as init process
[ 2.665470] with arguments:
[ 2.668426] /sbin/init
[ 2.671121] with environment:
[ 2.674254] HOME=/
[ 2.676603] TERM=linux
[ 2.954313] init: Console is alive
[ 2.957844] init: - watchdog -
[ 3.664784] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 3.704333] usbcore: registered new interface driver usbfs
[ 3.709863] usbcore: registered new interface driver hub
[ 3.715263] usbcore: registered new device driver usb
[ 3.726702] gpio_button_hotplug: loading out-of-tree module taints kernel.
[ 3.751209] xhci-mtk 11200000.usb: supply vbus not found, using dummy regulator
[ 3.759373] xhci-mtk 11200000.usb: xHCI Host Controller
[ 3.764645] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 1
[ 3.775056] xhci-mtk 11200000.usb: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000200010
[ 3.784232] xhci-mtk 11200000.usb: irq 82, io mem 0x11200000
[ 3.789998] xhci-mtk 11200000.usb: xHCI Host Controller
[ 3.795266] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 2
[ 3.802663] xhci-mtk 11200000.usb: Host supports USB 3.2 Enhanced SuperSpeed
[ 3.810343] hub 1-0:1.0: USB hub found
[ 3.814149] hub 1-0:1.0: 1 port detected
[ 3.818404] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 3.826891] hub 2-0:1.0: USB hub found
[ 3.830675] hub 2-0:1.0: 1 port detected
[ 3.842497] usbcore: registered new interface driver usb-storage
[ 3.849903] usbcore: registered new interface driver uas
[ 3.855522] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 3.873058] init: - preinit -
[ 4.215669] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 4.224163] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 4.261334] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode
Press the [f] key and hit [enter] to enter failsafe mode
Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level
[ 5.527114] mt7530-mdio mdio-bus:1f lan1: Link is Up - 1Gbps/Full - flow control off
[ 8.504976] mount_root: loading kmods from internal overlay
[ 8.519548] kmodloader: loading kernel modules from //etc/modules-boot.d/*
[ 8.529694] kmodloader: done loading kernel modules from //etc/modules-boot.d/*
[ 8.689474] block: attempting to load /tmp/overlay/upper/etc/config/fstab
[ 8.698274] block: unable to load configuration (fstab: Entry not found)
[ 8.705135] block: attempting to load /tmp/overlay/etc/config/fstab
[ 8.711475] block: unable to load configuration (fstab: Entry not found)
[ 8.718232] block: attempting to load /etc/config/fstab
[ 8.724854] block: unable to load configuration (fstab: Entry not found)
[ 8.731655] block: no usable configuration
[ 8.748314] UBIFS (ubi0:3): default file-system created
[ 8.754011] UBIFS (ubi0:3): Mounting in unauthenticated mode
[ 8.759769] UBIFS (ubi0:3): background thread "ubifs_bgt0_3" started, PID 840
[ 8.807989] UBIFS (ubi0:3): UBIFS: mounted UBI device 0, volume 3, name "rootfs_data"
[ 8.815848] UBIFS (ubi0:3): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 8.825764] UBIFS (ubi0:3): FS size: 93200384 bytes (88 MiB, 734 LEBs), max 745 LEBs, journal size 4698112 bytes (4 MiB, 37 LEBs)
[ 8.837410] UBIFS (ubi0:3): reserved for root: 4402084 bytes (4298 KiB)
[ 8.844022] UBIFS (ubi0:3): media format: w5/r0 (latest is w5/r0), UUID 1D28B0E5-D42E-457D-8E84-EB03E6B7656E, small LPT model
[ 8.856016] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 8.863206] block: unable to load configuration (fstab: Entry not found)
[ 8.869976] block: attempting to load /tmp/ubifs_cfg/etc/config/fstab
[ 8.876543] block: unable to load configuration (fstab: Entry not found)
[ 8.883317] block: attempting to load /etc/config/fstab
[ 8.888606] block: unable to load configuration (fstab: Entry not found)
[ 8.895363] block: no usable configuration
[ 8.902643] UBIFS (ubi0:3): un-mount UBI device 0
[ 8.907365] UBIFS (ubi0:3): background thread "ubifs_bgt0_3" stops
[ 8.916945] UBIFS (ubi0:3): Mounting in unauthenticated mode
[ 8.922750] UBIFS (ubi0:3): background thread "ubifs_bgt0_3" started, PID 843
[ 8.970443] UBIFS (ubi0:3): UBIFS: mounted UBI device 0, volume 3, name "rootfs_data"
[ 8.978306] UBIFS (ubi0:3): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 8.988214] UBIFS (ubi0:3): FS size: 93200384 bytes (88 MiB, 734 LEBs), max 745 LEBs, journal size 4698112 bytes (4 MiB, 37 LEBs)
[ 8.999856] UBIFS (ubi0:3): reserved for root: 4402084 bytes (4298 KiB)
[ 9.006464] UBIFS (ubi0:3): media format: w5/r0 (latest is w5/r0), UUID 1D28B0E5-D42E-457D-8E84-EB03E6B7656E, small LPT model
[ 9.061401] block: attempting to load /tmp/overlay/upper/etc/config/fstab
[ 9.068744] block: unable to load configuration (fstab: Entry not found)
[ 9.075535] block: attempting to load /tmp/overlay/etc/config/fstab
[ 9.081872] block: unable to load configuration (fstab: Entry not found)
[ 9.088621] block: attempting to load /etc/config/fstab
[ 9.093937] block: unable to load configuration (fstab: Entry not found)
[ 9.100687] block: no usable configuration
[ 9.106782] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 9.114015] block: unable to load configuration (fstab: Entry not found)
[ 9.120757] block: attempting to load /tmp/ubifs_cfg/etc/config/fstab
[ 9.127285] block: unable to load configuration (fstab: Entry not found)
[ 9.134083] block: attempting to load /etc/config/fstab
[ 9.139364] block: unable to load configuration (fstab: Entry not found)
[ 9.146104] block: no usable configuration
[ 9.151724] mount_root: overlay filesystem has not been fully initialized yet
[ 9.159218] mount_root: switching to ubifs overlay
[ 9.170383] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off.
[ 9.182433] urandom-seed: Seed file not found (/etc/urandom.seed)
cfg016cb7
cfg026cb7
grep: /etc/fw_env.config: No such file or directory
- generating board file -
Warning: Bad CRC, using default environment
[ 9.989157] mt7530-mdio mdio-bus:1f lan1: Link is Down
[ 9.998638] procd: - early -
[ 10.001589] procd: - watchdog -
[ 10.564530] procd: - watchdog -
[ 10.569839] procd: - ubus -
[ 10.732333] procd: - init -
Please press Enter to activate this console.
[ 11.276628] urngd: v1.0.2 started.
[ 11.569550] kmodloader: loading kernel modules from /etc/modules.d/*
[ 11.635756] NET: Registered PF_ALG protocol family
[ 11.654266] GACT probability on
[ 11.658827] Mirror/redirect action on
[ 11.671967] u32 classifier
[ 11.674749] input device check on
[ 11.678441] Actions configured
[ 11.695786] ntfs3: Enabled Linux POSIX ACLs support
[ 11.704110] crypto-safexcel 10320000.crypto: EIP97:230(0,1,4,4)-HIA:270(0,5,5),PE:150/433(alg:7fcdfc00)/0/0/0
[ 11.739715] Loading modules backported from Linux version v6.18.26-0-g1fe060681
[ 11.747108] Backport generated by backports.git 6ecbb44
[ 11.763904] usbcore: registered new interface driver ums-alauda
[ 11.771104] usbcore: registered new interface driver ums-cypress
[ 11.778552] usbcore: registered new interface driver ums-datafab
[ 11.785930] usbcore: registered new interface driver ums-freecom
[ 11.793485] usbcore: registered new interface driver ums-isd200
[ 11.800776] usbcore: registered new interface driver ums-jumpshot
[ 11.808237] usbcore: registered new interface driver ums-karma
[ 11.815791] usbcore: registered new interface driver ums-sddr09
[ 11.823445] usbcore: registered new interface driver ums-sddr55
[ 11.830582] usbcore: registered new interface driver ums-usbat
[ 12.084766] mt798x-wmac 18000000.wifi: attaching wed device 0 version 2
[ 12.137591] platform 15010000.wed: MTK WED WO Firmware Version: DEV_000000, Build Time: 20240823161926
[ 12.146934] platform 15010000.wed: MTK WED WO Chip ID 00 Region 3
[ 12.689882] mt798x-wmac 18000000.wifi: HW/SW Version: 0x8a108a10, Build Time: 20240823161240a
[ 12.872857] mt798x-wmac 18000000.wifi: WM Firmware Version: ____000000, Build Time: 20240823161304
[ 12.970111] mt798x-wmac 18000000.wifi: WA Firmware Version: DEV_000000, Build Time: 20240823161841
[ 13.067897] mt798x-wmac 18000000.wifi: registering led 'mt76-phy0'
[ 13.154782] mt798x-wmac 18000000.wifi: registering led 'mt76-phy1'
[ 13.276077] PPP generic driver version 2.4.2
[ 13.282201] PPP MPPE Compression module registered
[ 13.288887] NET: Registered PF_PPPOX protocol family
[ 13.300197] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 21.228330] mtk_soc_eth 15100000.ethernet eth0: Link is Down
[ 21.248722] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[ 21.257359] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx
[ 21.264566] mt7530-mdio mdio-bus:1f lan1: configuring for phy/gmii link mode
[ 21.280434] br-lan: port 1(lan1) entered blocking state
[ 21.285770] br-lan: port 1(lan1) entered disabled state
[ 21.291046] mt7530-mdio mdio-bus:1f lan1: entered allmulticast mode
[ 21.297389] mtk_soc_eth 15100000.ethernet eth0: entered allmulticast mode
[ 21.308306] mt7530-mdio mdio-bus:1f lan1: entered promiscuous mode
[ 21.328321] mt7530-mdio mdio-bus:1f lan2: configuring for phy/gmii link mode
[ 21.339873] br-lan: port 2(lan2) entered blocking state
[ 21.345217] br-lan: port 2(lan2) entered disabled state
[ 21.350487] mt7530-mdio mdio-bus:1f lan2: entered allmulticast mode
[ 21.360037] mt7530-mdio mdio-bus:1f lan2: entered promiscuous mode
[ 21.378192] mt7530-mdio mdio-bus:1f lan3: configuring for phy/gmii link mode
[ 21.392237] br-lan: port 3(lan3) entered blocking state
[ 21.397603] br-lan: port 3(lan3) entered disabled state
[ 21.402913] mt7530-mdio mdio-bus:1f lan3: entered allmulticast mode
[ 21.411963] mt7530-mdio mdio-bus:1f lan3: entered promiscuous mode
[ 21.469186] mtk_soc_eth 15100000.ethernet eth1: PHY [mdio-bus:00] driver [MediaTek MT7981 PHY] (irq=POLL)
[ 21.478855] mtk_soc_eth 15100000.ethernet eth1: configuring for phy/gmii link mode
[ 22.845218] br-lan: port 4(phy0-ap0) entered blocking state
[ 22.850805] br-lan: port 4(phy0-ap0) entered disabled state
[ 22.856500] mt798x-wmac 18000000.wifi phy0-ap0: entered allmulticast mode
[ 22.863541] mt798x-wmac 18000000.wifi phy0-ap0: entered promiscuous mode
[ 22.870411] br-lan: port 4(phy0-ap0) entered blocking state
[ 22.876043] br-lan: port 4(phy0-ap0) entered forwarding state
[ 22.902115] br-lan: port 4(phy0-ap0) entered disabled state
[ 23.090918] br-lan: port 4(phy0-ap0) entered blocking state
[ 23.096545] br-lan: port 4(phy0-ap0) entered forwarding state
[ 23.444330] br-lan: port 5(phy1-ap0) entered blocking state
[ 23.449948] br-lan: port 5(phy1-ap0) entered disabled state
[ 23.455684] mt798x-wmac 18000000.wifi phy1-ap0: entered allmulticast mode
[ 23.462859] mt798x-wmac 18000000.wifi phy1-ap0: entered promiscuous mode
[ 23.469842] br-lan: port 5(phy1-ap0) entered blocking state
[ 23.475498] br-lan: port 5(phy1-ap0) entered forwarding state
[ 23.486854] br-lan: port 5(phy1-ap0) entered disabled state
[ 24.256877] br-lan: port 5(phy1-ap0) entered blocking state
[ 24.262482] br-lan: port 5(phy1-ap0) entered forwarding state
[ 27.469278] mt7530-mdio mdio-bus:1f lan1: Link is Up - 1Gbps/Full - flow control off
[ 27.469781] br-lan: port 1(lan1) entered blocking state
[ 27.482292] br-lan: port 1(lan1) entered forwarding state
root@ImmortalWrt:~# cat /proc/mtd
dev: size erasesize name
mtd0: 07200000 00020000 "ubi"
mtd1: 00200000 00020000 "fip"
mtd2: 00200000 00020000 "factory"
mtd3: 00080000 00020000 "u-boot-env"
mtd4: 00100000 00020000 "bl2"
root@ImmortalWrt:~#
![图片[7]-中国移动CMCC RAX3000Me路由器刷机教程openwrt+恢复原厂+救砖TTL-勇爱设计Netwrok](https://www.getpicion.com/wp-content/uploads/2026/07/image-38.png)
© 版权声明
文章版权归作者所有，未经允许请勿转载。
THE END
暂无评论内容
