红米redmi路由器AX5京东无线宝RA50路由器刷机教程+恢复原厂教程

官方固件下载：

1.1.47：miwifi_ra50_firmware_a69aa_1.1.47.bin

1.1.60：miwifi_ra50_firmware_2fd2e_1.1.60.bin

第一步解锁SSH

Xiaomi MiR Patcher


 1 - Set IP-address (current value: 192.168.31.1)
 2 - Connect to device (install exploit)
 3 - Read full device info
 4 - Create full backup
 5 - Install EN/RU languages
 6 - Install permanent SSH
 7 - Install firmware (from directory "firmware")
 8 - {{{ Other functions }}}
 9 - [[ Reboot device ]]
 0 - Exit

Select: 2

device_name = RA50

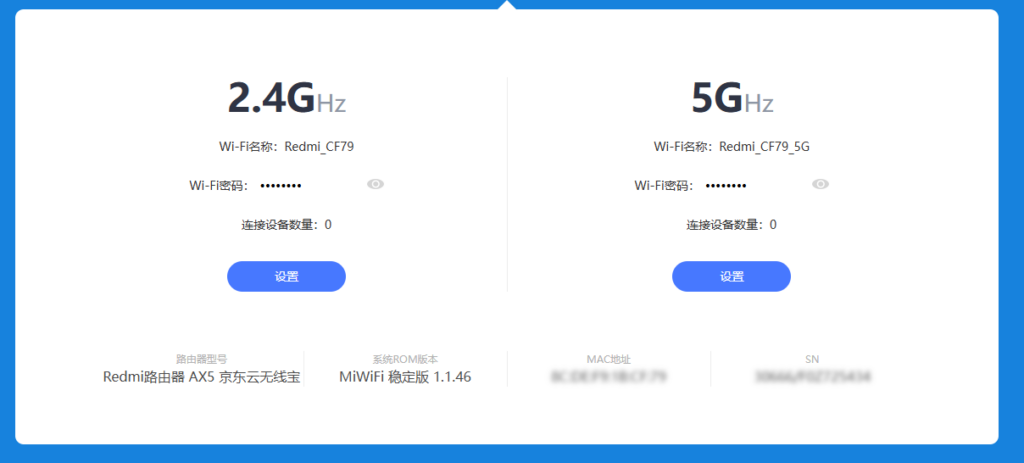

rom_version = 1.1.46 release
mac_address = e4:54:e8:65:73:12
CountryCode = CN
Enter device WEB password: 12345678
WARN: Exploits "arn_switch/start_binding/set_mac_filter" not working!!!
Enable smartcontroller scene executor ...
Wait smartcontroller activation ...
Unlock dropbear service ...
Unlock SSH server ...
Set password "root" for root user ...
Enabling dropbear service ...
Run SSH server on port 22 ...
Test SSH connection to port 22 ...

#### SSH server are activated! ####

==========================================================

#原厂分区列表
BusyBox v1.25.1 (2021-01-08 04:25:27 UTC) built-in shell (ash)

 -----------------------------------------------------
       Welcome to XiaoQiang!
 -----------------------------------------------------
  $$$$$$\  $$$$$$$\  $$$$$$$$\      $$\      $$\        $$$$$$\  $$\   $$\
 $$  __$$\ $$  __$$\ $$  _____|     $$ |     $$ |      $$  __$$\ $$ | $$  |
 $$ /  $$ |$$ |  $$ |$$ |           $$ |     $$ |      $$ /  $$ |$$ |$$  /
 $$$$$$$$ |$$$$$$$  |$$$$$\         $$ |     $$ |      $$ |  $$ |$$$$$  /
 $$  __$$ |$$  __$$< $$  __|        $$ |     $$ |      $$ |  $$ |$$  $$<
 $$ |  $$ |$$ |  $$ |$$ |           $$ |     $$ |      $$ |  $$ |$$ |\$$\
 $$ |  $$ |$$ |  $$ |$$$$$$$$\       $$$$$$$$$  |       $$$$$$  |$$ | \$$\
 \__|  \__|\__|  \__|\________|      \_________/        \______/ \__|  \__|


root@XiaoQiang:~# cat /proc/mtd
dev:    size   erasesize  name
root@XiaoQiang:~# blikid
-ash: blikid: not found
root@XiaoQiang:~# blkid
/dev/mmcblk0: PTUUID="98101b32-bbe2-4bf2-a06e-2bb33d000c20" PTTYPE="gpt"
/dev/mmcblk0p1: PARTLABEL="0:SBL1" PARTUUID="1e40be3e-d9e7-75cd-c4ab-1d9706ae3b3b"
/dev/mmcblk0p2: PARTLABEL="0:BOOTCONFIG" PARTUUID="72cf7698-d671-75a1-876e-45291ee3ebb2"
/dev/mmcblk0p3: PARTLABEL="0:BOOTCONFIG1" PARTUUID="b8ac588a-30a3-6ee9-41ab-66c3913c25d6"
/dev/mmcblk0p4: PARTLABEL="0:QSEE" PARTUUID="9faad1bb-3f9d-dac7-cc40-fe0f49a98a49"
/dev/mmcblk0p5: PARTLABEL="0:QSEE_1" PARTUUID="26cfc0ec-9ed1-4baf-2857-0b2c5077d1fa"
/dev/mmcblk0p6: PARTLABEL="0:DEVCFG" PARTUUID="072b1029-e109-86b8-7fde-b1df08ad831b"
/dev/mmcblk0p7: PARTLABEL="0:DEVCFG_1" PARTUUID="5534d768-103f-6ed7-0707-179a55d1e248"
/dev/mmcblk0p8: PARTLABEL="0:RPM" PARTUUID="e236ae50-f621-1ac1-bb65-885be5382352"
/dev/mmcblk0p9: PARTLABEL="0:RPM_1" PARTUUID="804d5941-52b8-6135-1ec2-2ca4c6c7a6b9"
/dev/mmcblk0p10: PARTLABEL="0:CDT" PARTUUID="43b3871e-58cf-ac22-9733-6067efce75e0"
/dev/mmcblk0p11: PARTLABEL="0:CDT_1" PARTUUID="2fbc1c89-60fa-dfe0-5dc9-12b0880bbd6b"
/dev/mmcblk0p12: PARTLABEL="0:APPSBLENV" PARTUUID="a223f63d-0db2-666b-555d-34f66a26323f"
/dev/mmcblk0p13: PARTLABEL="0:APPSBL" PARTUUID="4b5f2873-5d3e-cf9c-68d8-7d5cb0cffc8c"
/dev/mmcblk0p14: PARTLABEL="0:APPSBL_1" PARTUUID="565d4ceb-2512-41d1-1a29-a298ad6f2de2"
/dev/mmcblk0p15: PARTLABEL="0:ART" PARTUUID="4d447099-676d-b4af-f4a2-721dd4901ba5"
/dev/mmcblk0p16: PARTLABEL="0:HLOS" PARTUUID="3634c218-831e-b45f-8138-3b6bddbe902d"
/dev/mmcblk0p17: PARTLABEL="0:HLOS_1" PARTUUID="30f1c855-c630-2693-d8ee-b83e55bb4827"
/dev/mmcblk0p18: TYPE="squashfs" PARTLABEL="rootfs" PARTUUID="3dccfdd7-8da8-3515-99d4-d47a63526aeb"
/dev/mmcblk0p19: TYPE="squashfs" PARTLABEL="0:WIFIFW" PARTUUID="f50b882d-c863-450e-409f-cf648ae546c2"
/dev/mmcblk0p20: TYPE="squashfs" PARTLABEL="rootfs_1" PARTUUID="adb9e7af-73a1-75fb-1766-c922eb24bf33"
/dev/mmcblk0p21: PARTLABEL="0:WIFIFW_1" PARTUUID="045e685a-7fd2-e1e2-ffb5-8f5c15b1dfcf"
/dev/mmcblk0p22: PARTLABEL="0:ETHPHYFW" PARTUUID="4b6531e9-f159-3f79-d87a-6a644985d2a3"
/dev/mmcblk0p23: PARTLABEL="bdata" PARTUUID="4834481d-a366-e3e4-1ec0-00d3e1897a58"
/dev/mmcblk0p24: PARTLABEL="crash" PARTUUID="16ed9c47-ada6-ce39-fdf1-751b1f1cb29a"
/dev/mmcblk0p25: PARTLABEL="crash_syslog" PARTUUID="b21a8391-737f-a1af-969c-224d1b60340c"
/dev/mmcblk0p26: UUID="63a5b1ab-7e66-410a-b81b-4b7a21657373" TYPE="ext4" PARTLABEL="rootfs_data" PARTUUID="9823851e-5f82-d8a9-44e9-2756ab2b363a"
/dev/mmcblk0p27: PARTLABEL="cfg_bak" PARTUUID="e5cf6760-612c-ec80-388f-37ba1aba5d39"
/dev/mmcblk0p28: PARTLABEL="overlay" PARTUUID="6b016d7c-886c-2589-af6f-607727d29e8a"
/dev/mmcblk0p29: UUID="07fdcaa2-01bc-4cb3-ad40-33940ba49609" TYPE="ext4"
root@XiaoQiang:~#

第二步刷入临时系统和uboot

第三步刷入openwrt最新版
